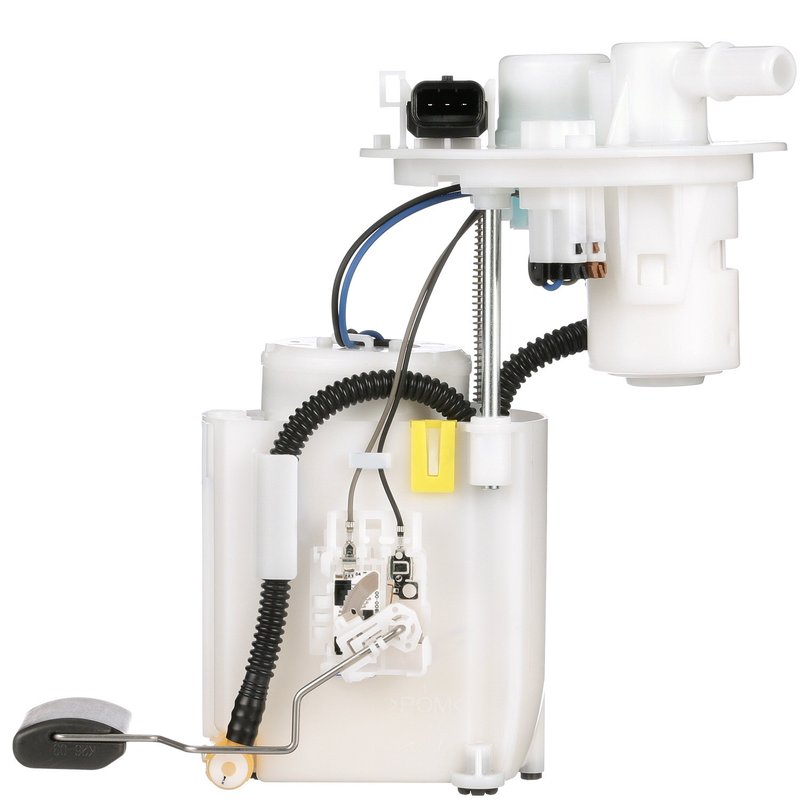

Delphi FG2171 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Hyundai Veloster

The Delphi FG2171 fuel pump module assembly is designed specifically for Hyundai Veloster models requiring a reliable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0-volt operation
• Includes internal strainer and fuel level sender assembly
• Compatible with gasoline fuel systems
• Regulator and vapor pressure sensor included for precise fuel management
• Blade-type male terminals with four connections
• Quick connect outlet with 0.313-inch outside diameter
• Designed for in-tank installation with two outlet ports
• System pressure rated at 69 psi for consistent fuel flow

Technical Details and Features

The Delphi FG2171 fuel pump module assembly features an internal strainer inlet and a quick connect outlet type, ensuring clean fuel delivery and easy connection to the fuel system. The module operates at 12 volts and includes a regulator to maintain system pressure at 69 psi. It is equipped with four blade-type male terminals, supporting secure electrical connections. The fuel pump module also incorporates a fuel level sender assembly and a vapor pressure sensor, providing accurate fuel level readings and vapor management. This assembly is designed for gasoline fuel systems and fits directly inside the fuel tank of Hyundai Veloster vehicles.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Hyundai Veloster models
• Resolves inconsistent fuel pressure or engine hesitation
• Addresses fuel level sender malfunctions causing inaccurate fuel gauge readings
• Fixes fuel delivery interruptions due to clogged or damaged internal strainers
• Improves vapor pressure sensor functionality for emissions control

Installation Notes and Tips

When installing the Delphi FG2171 fuel pump module assembly, ensure the vehicle’s fuel tank is properly depressurized before removal. This module is designed for in-tank installation and requires careful handling of the internal strainer and fuel level sender components. Verify all electrical connections are secure using the four blade-type male terminals. The quick connect outlet facilitates straightforward fuel line attachment. Follow vehicle-specific service manual instructions for safe and accurate installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The FG2171 is a standard replacement grade part, engineered for reliable operation in Hyundai Veloster fuel systems. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties to ensure customer confidence and product longevity.
