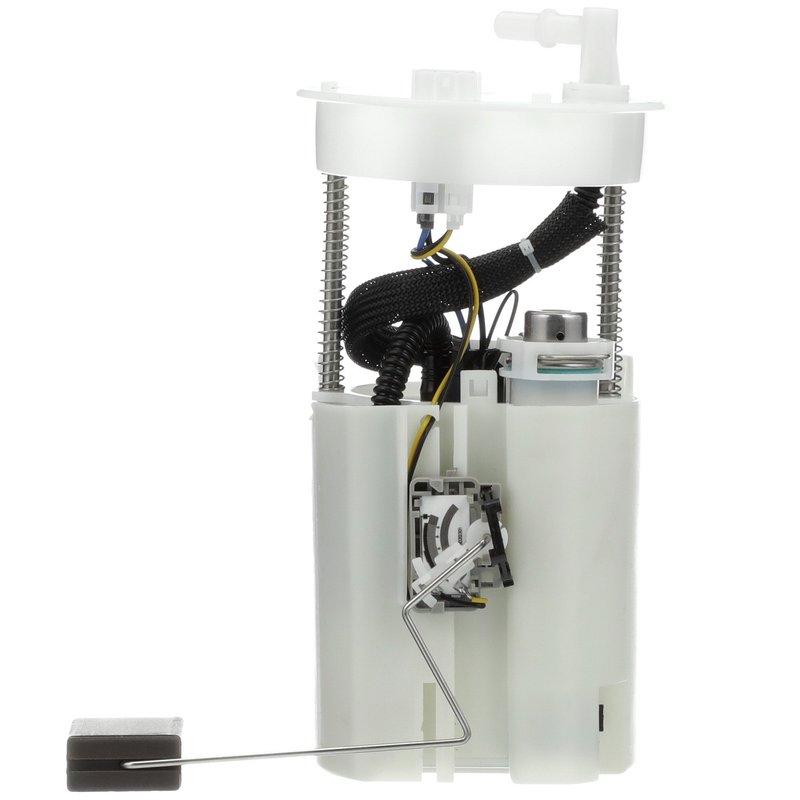

Delphi FG2178 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Crosstour

The Delphi FG2178 fuel pump module assembly is designed specifically for the Honda Crosstour, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a complete replacement solution.

• Compatible with Honda Crosstour models
• 12.0 Volt electric fuel pump with 26 GPH average flow rating
• Includes fuel level sender assembly with float arm
• Built-in fuel pressure regulator maintaining 43 psi system pressure
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Comes with gasket, lock ring, and seals for secure installation
• Blade-type male terminals with 4-terminal configuration

Technical Details and Features

The Delphi FG2178 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 55 psi and maintains a system pressure of 43 psi, ensuring optimal fuel delivery to the engine. The pump includes an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating easy installation and reliable fuel flow. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s gauge. The electrical connections use blade-type male terminals with four terminals total, supporting stable and secure wiring.

Applications and Problem Resolution

This fuel pump module assembly is intended for use in Honda Crosstour vehicles requiring a standard replacement fuel pump module. It addresses common fuel system issues such as:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings on the dashboard
• Fuel pressure inconsistencies causing engine performance problems
• Fuel pump noise or electrical connection issues
• Fuel contamination due to damaged or clogged strainers

Installation Notes and Tips

Installation of the Delphi FG2178 fuel pump module assembly should be performed with care to avoid damage to the fuel tank and components. Ensure the vehicle’s battery is disconnected before beginning work. The included gasket, lock ring, and seals must be properly seated to prevent fuel leaks. Use appropriate tools to remove and reinstall the lock ring securely. Verify all electrical connections are clean and firmly attached to the blade terminals. After installation, check for fuel leaks and proper fuel pressure before starting the engine.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG2178 is a standard replacement grade part, designed to provide reliable service life. This product includes all necessary seals and components for a complete assembly. While specific warranty terms may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship under normal use.
