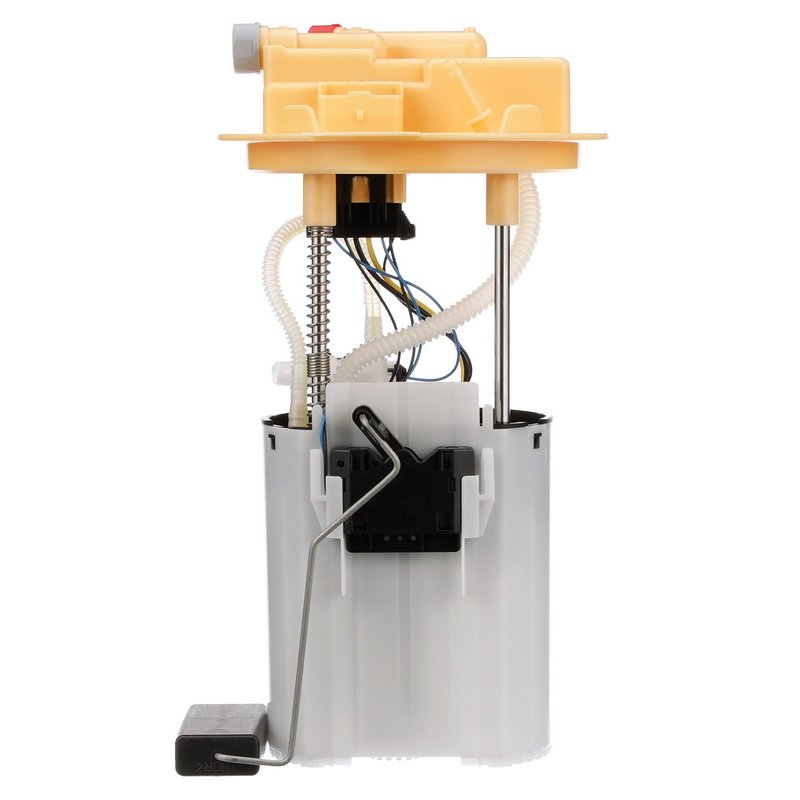

Delphi FG2182 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volvo Vehicles

The Delphi FG2182 fuel pump module assembly is designed specifically for select Volvo models, including the S60, S60 Cross Country, V60, and V60 Cross Country. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Compatible with Volvo S60, S60 Cross Country, V60, and V60 Cross Country
• 12.0 Volt electric pump with blade-type male terminals (6 terminals)
• Includes fuel level sender assembly and external strainer for clean fuel intake
• Female quick connect outlet with 0.375 inch outside diameter, two outlets
• Regulator included for stable fuel pressure management

Technical Features and Specifications

The Delphi FG2182 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet type to prevent debris from entering the pump, enhancing longevity and reliability. The assembly includes a fuel level sender assembly with resistance values ranging from 65 ohms (empty) to 990 ohms (full), providing accurate fuel gauge readings. The pump uses blade-type male terminals with six connections, supporting efficient electrical integration. The outlet is a female quick connect type with two outlets, each having an outside diameter of 0.375 inches. A built-in regulator maintains consistent fuel pressure, and the average current draw is approximately 10 amps. This standard replacement grade module is intended for in-tank installation, ensuring proper fit and function in compatible Volvo models.

Applications and Problem Resolution

• Restores proper fuel delivery in Volvo S60 and V60 models experiencing fuel starvation or engine hesitation
• Replaces faulty fuel level sender assemblies causing inaccurate fuel gauge readings
• Addresses issues with fuel pump electrical failures or inconsistent pressure
• Solves problems related to clogged or damaged fuel strainers affecting fuel flow
• Provides a direct replacement for worn or damaged in-tank fuel pump modules

Installation Notes and Tips

Installation of the Delphi FG2182 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use appropriate tools to carefully disconnect the blade terminals and quick connect outlets. Verify that the external strainer is properly positioned to avoid fuel flow restrictions. Although the assembly does not include a gasket or lock ring, inspect and replace these components as needed to ensure a secure seal. Follow the included instruction sheet for detailed installation guidance.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG2182 is a standard replacement grade part designed to provide reliable performance in compatible Volvo vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
