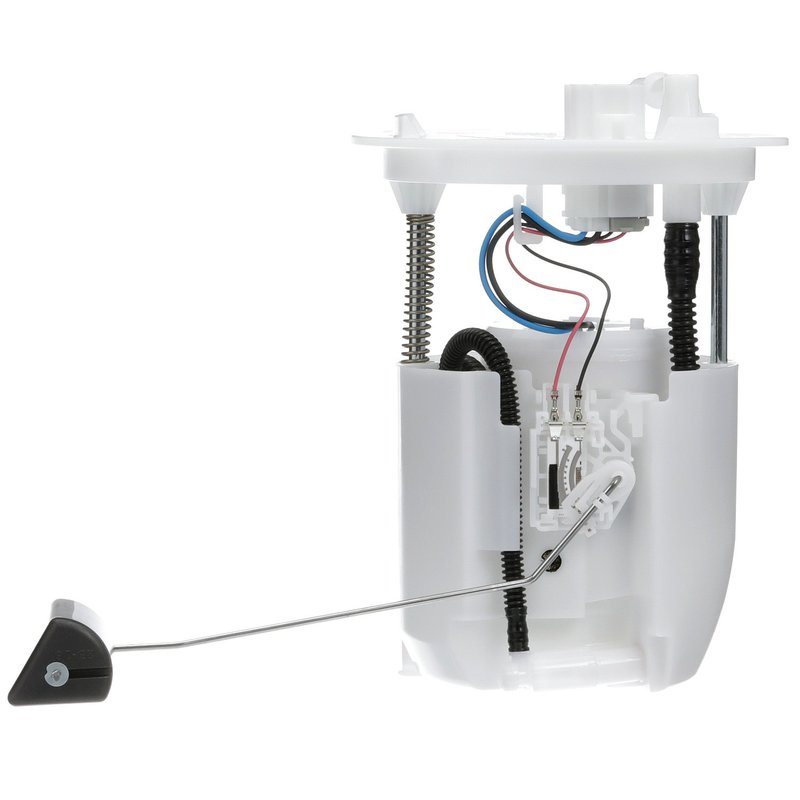

Delphi FG2185 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG2185 Fuel Pump Module Assembly

Brand Delphi FG2185
Outlet Outside Diameter 0.375
Voltage 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket Or Seal Included No
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick connect
Outlet Quantity 1
In Tank or External In tank
Resistance Ohms Empty 200.0
Resistance Ohms Full 20.0
Internal Or External Strainer Internal
Average Current Draw 10
Pump Type Electric
Fuel Level Sender Assembly Included Yes
Item Grade Standard replacement
Package Contents Fuel pump module assembly w/float arm, instruction sheet
System Pressure 58 psi
Vapor Pressure Sensor No
Fits Mazda · 5 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

Electric pump. Delivers 58 psi with a 12-volt gas application.

Fuel level sender included. Integrated with a regulator, strainer, and quick-connect outlet.

Cross-references BJS7-60-960, CFG2185 and E16466 for the same application. See all 6.

$417.74Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $417.74
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG2185 Fuel Pump Module Assembly

Delphi FG2185 is an in-tank fuel pump module assembly for gasoline applications, built as a standard replacement for select Mazda 3 models. It includes the fuel level sender assembly, regulator, and strainer, making it a direct service part for restoring fuel delivery and tank-level reporting on 2014-2018 Mazda 3 vehicles built in Mexico.

Key Features

  • In-tank electric fuel pump module assembly for 12-volt gas systems
  • System pressure rated at 58 psi for the specified application
  • Fuel level sender assembly included with 20 ohms full and 200 ohms empty resistance
  • Integrated regulator included for fuel system control
  • Quick-connect outlet with 0.375 in. outside diameter
  • Blade terminals, male terminal gender, 4-terminal configuration
  • Internal strainer included; gasket/seal and lock ring not included
  • Standard replacement part from Delphi OE heritage engineering

Detailed Description

Delphi FG2185 fuel pump module assembly is engineered for 2014-2018 Mazda 3 fuel system service, with fitment for Mexico-built vehicles. It is an in-tank electric module for gasoline use and includes the pump, regulator, strainer, and fuel level sender assembly to support fuel delivery and fuel gauge operation. Delphi draws on OE experience and supplier knowledge developed over decades of original-equipment production, which is reflected in the design and application coverage of this replacement module. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Hard starting caused by weak or failing fuel pressure
  • Engine stalling from inconsistent fuel delivery
  • Fuel gauge errors from a worn sender assembly
  • Low fuel pressure conditions in the 58 psi system
  • Fuel pump noise or intermittent pump operation

Installation Notes and Tips

Fits 2014-2018 Mazda 3, N/A. Confirm Mexico-built vehicle application before ordering. Delphi recommends cleaning the fuel tank before installing a new pump to reduce the risk of contamination-related failure; use of fuel tank cleaning kit FC01 is recommended. Inspect the tank, lines, and electrical connector condition before installation, and verify the quick-connect outlet and blade terminal configuration match the original unit.

Quality Assurance

Delphi builds aftermarket parts using OE experience and application knowledge developed through long-term supplier relationships with major automakers. FG2185 is a standard replacement fuel pump module assembly designed to meet the specified fuel system requirements for the listed Mazda 3 applications.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2018Mazda3N/AMexico Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2017Mazda3N/AMexico Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2016Mazda3N/AMexico Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2015Mazda3N/AMexico Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2014Mazda3N/AMexico Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BJS7-60-960CFG2185E16466PEAR-13-35XPEAR-13-280PEAR-13-ZE1
