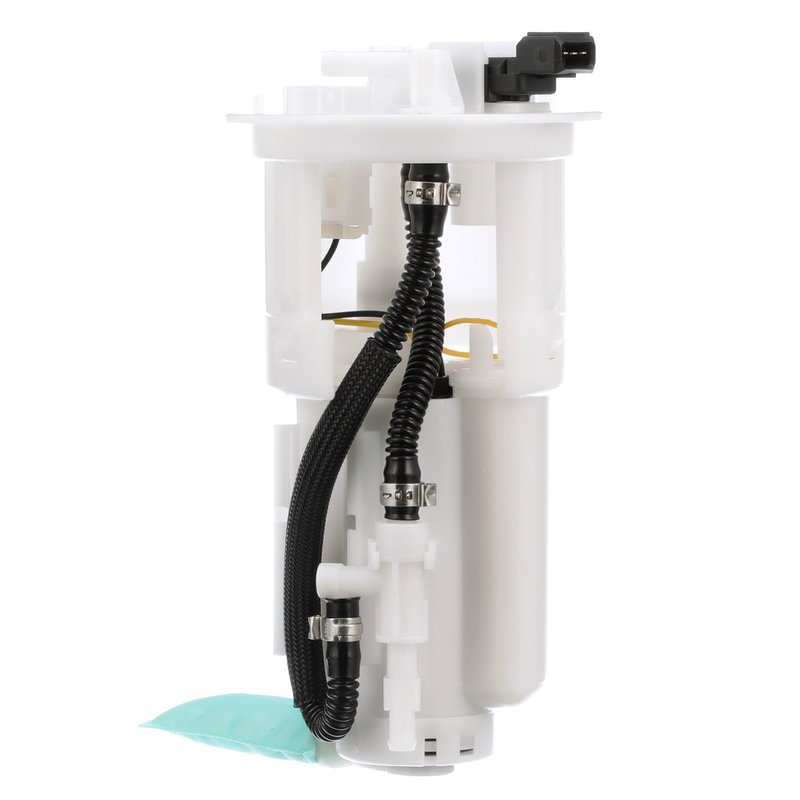

Delphi FG2188 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Mitsubishi Montero

The Delphi FG2188 fuel pump module assembly is designed specifically for Mitsubishi Montero models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports gas fuel systems with integrated components for efficient operation.

Key Features of Delphi FG2188 Fuel Pump Module

• Electric fuel pump with 12.0 volts operation
• In-tank design with external strainer for fuel filtration
• Includes regulator and vapor pressure sensor for system stability
• Quick connect outlet with 0.375 inch outside diameter and three outlets
• Standard replacement grade with included gasket and strainer
• Blade-type male terminals, two in quantity for secure electrical connection
• Maximum pressure rating of 94 psi and system pressure of 38 psi
• Average flow rating of 21 and average current draw of 10 amps

Detailed Description of the Delphi FG2188 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG2188) is engineered for Mitsubishi Montero vehicles requiring a dependable fuel delivery system. The electric pump operates at 12 volts and features an in-tank installation with an external strainer to ensure clean fuel supply. The module includes a built-in regulator and vapor pressure sensor to maintain optimal fuel pressure and system performance. The quick connect outlet design with three outlets and a 0.375 inch diameter facilitates straightforward installation and secure fuel line connections. Blade-type male terminals provide reliable electrical contact, supporting the pump’s average current draw of 10 amps and flow rating of 21. This standard replacement part comes with a gasket and strainer included, but does not include a lock ring or fuel level sender assembly.

Common Applications and Issues Addressed

• Restores proper fuel pressure in Mitsubishi Montero fuel systems
• Resolves fuel delivery interruptions caused by faulty or worn pumps
• Eliminates fuel contamination issues with external strainer inclusion
• Addresses regulator failures affecting engine performance
• Replaces damaged or leaking in-tank fuel pump modules

Installation Notes and Tips

• Ensure compatibility with Mitsubishi Montero models before installation
• Disconnect battery and relieve fuel system pressure prior to removal
• Handle the external strainer carefully to avoid damage during installation
• Verify secure connection of blade terminals and quick connect outlets
• Use the included gasket to prevent fuel leaks and ensure proper sealing

Quality Assurance and Warranty Information

The Delphi FG2188 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance in Mitsubishi Montero vehicles. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
