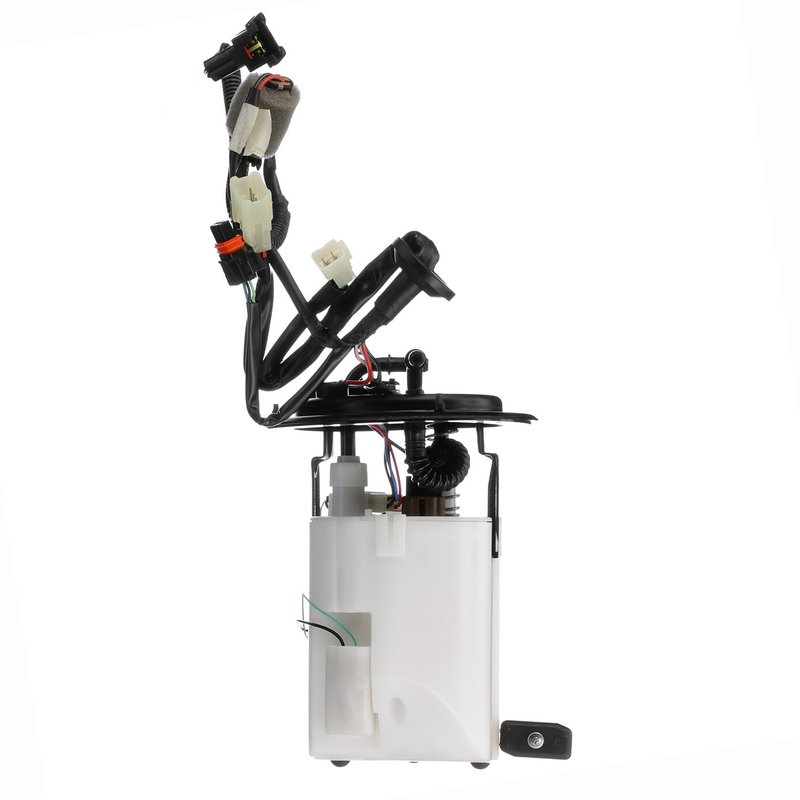

Delphi FG2194 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Kia Sephia

The Delphi FG2194 fuel pump module assembly is designed specifically for Kia Sephia models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG2194 Fuel Pump Module

• Outlet outside diameter: 0.313 inches for precise fuel flow
• Operates on 12.0 volts suitable for standard automotive electrical systems
• Compatible with gasoline fuel type
• Includes built-in fuel pressure regulator for stable system pressure up to 92 psi
• Equipped with 6 male blade terminals for secure electrical connections
• Internal strainer and inlet strainer included to prevent debris from entering the fuel system
• Quick connect outlet type with two outlets for efficient fuel delivery
• Fuel level sender assembly with float arm included for accurate fuel gauge readings
• Standard replacement grade ensuring reliable performance
• Average current draw of 10 amps for efficient operation
• System pressure maintained at 47 psi for consistent fuel supply

Detailed Description of the Delphi FG2194 Fuel Pump Module

The Delphi FG2194 is an electric fuel pump module assembly designed for in-tank installation in Kia Sephia vehicles. It features a quick connect outlet with a 0.313-inch diameter, supporting two outlets to maintain proper fuel flow. The module includes an internal strainer and inlet strainer to protect the fuel system from contaminants. The built-in fuel pressure regulator maintains a maximum pressure of 92 psi, while the system pressure is set at 47 psi to ensure steady fuel delivery. The assembly comes with a fuel level sender assembly and float arm, providing accurate fuel level readings on the dashboard. With six male blade terminals, the electrical connections are secure and reliable. The pump operates at 12 volts with an average current draw of 10 amps, making it compatible with standard automotive electrical systems.

Common Applications and Issues Addressed

• Replacement of faulty or failing fuel pump modules in Kia Sephia vehicles
• Resolving inconsistent fuel pressure or fuel delivery problems
• Fixing inaccurate fuel gauge readings due to faulty fuel level sender
• Eliminating fuel system contamination with integrated strainers
• Addressing electrical connection issues with blade terminal design

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Kia Sephia model year before installation
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Inspect and clean the fuel tank prior to installation to prevent contamination
• Follow vehicle manufacturer torque specifications when securing the module

Quality Assurance and Warranty Information

The Delphi FG2194 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring dependable performance and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always refer to the product documentation or contact the supplier for exact warranty terms.
