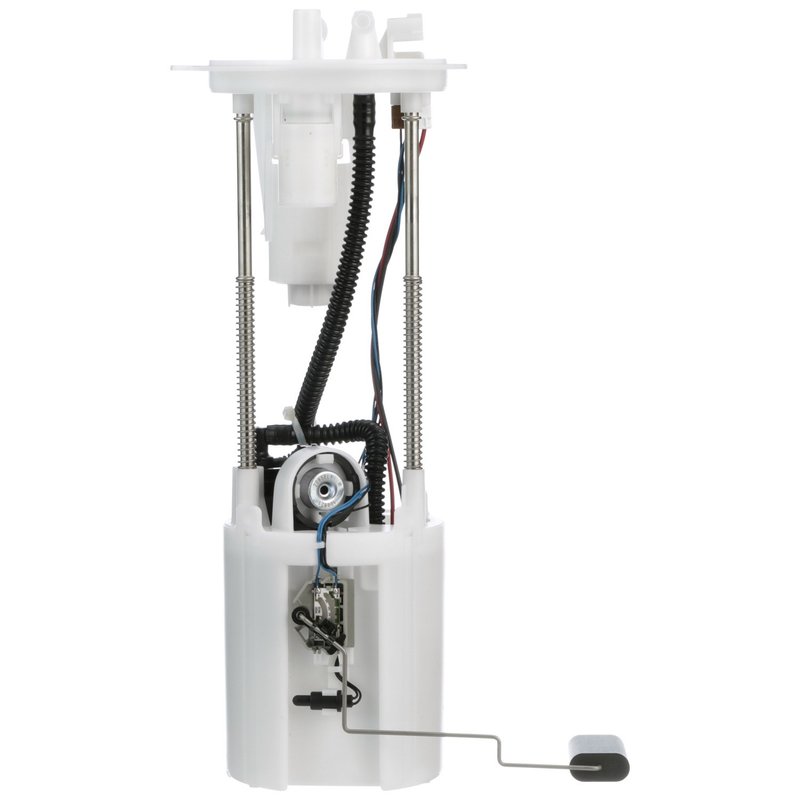

Delphi FG2197 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan TITAN

The Delphi FG2197 fuel pump module assembly is designed specifically for Nissan TITAN models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Maximum pressure rating of 55 psi and system pressure of 51 psi
• Compatible with gasoline fuel type
• Features external strainer inlet and quick connect outlet (0.375 inch diameter)
• Blade-type male terminals with 5 terminal quantity
• Includes regulator and strainer for fuel filtration and pressure control
• Average flow rating of 35 and average current draw of 10 amps

Detailed Product Description

The Delphi FG2197 fuel pump module assembly is engineered as a standard replacement part for Nissan TITAN vehicles. This in-tank electric pump module integrates a fuel level sender assembly, allowing precise fuel gauge readings. It operates at 12 volts and supports gasoline fuel systems with a maximum pressure of 55 psi, maintaining a system pressure of 51 psi for consistent fuel delivery. The module includes a regulator to ensure stable fuel pressure and an external strainer inlet to protect the fuel system from contaminants. The quick connect outlet with a 0.375-inch outside diameter simplifies installation and connection to the fuel lines. The blade-type male terminals (five in total) provide secure electrical connections, supporting reliable pump operation. The pump’s resistance ranges from 82 ohms when empty to 5 ohms when full, reflecting accurate fuel level sensing. This assembly is designed to meet the specific requirements of Nissan TITAN models, ensuring compatibility and performance.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Nissan TITAN vehicles
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel delivery interruptions caused by clogged strainers
• Improves overall fuel system reliability and engine performance

Installation Notes and Tips

• Ensure vehicle is compatible with Delphi FG2197 fuel pump module assembly before installation
• Disconnect battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Verify all electrical connections are secure and free of corrosion
• Test fuel pressure and fuel gauge operation after installation

Quality Assurance and Warranty

Delphi manufactures the FG2197 fuel pump module assembly to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance in Nissan TITAN vehicles. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship.
