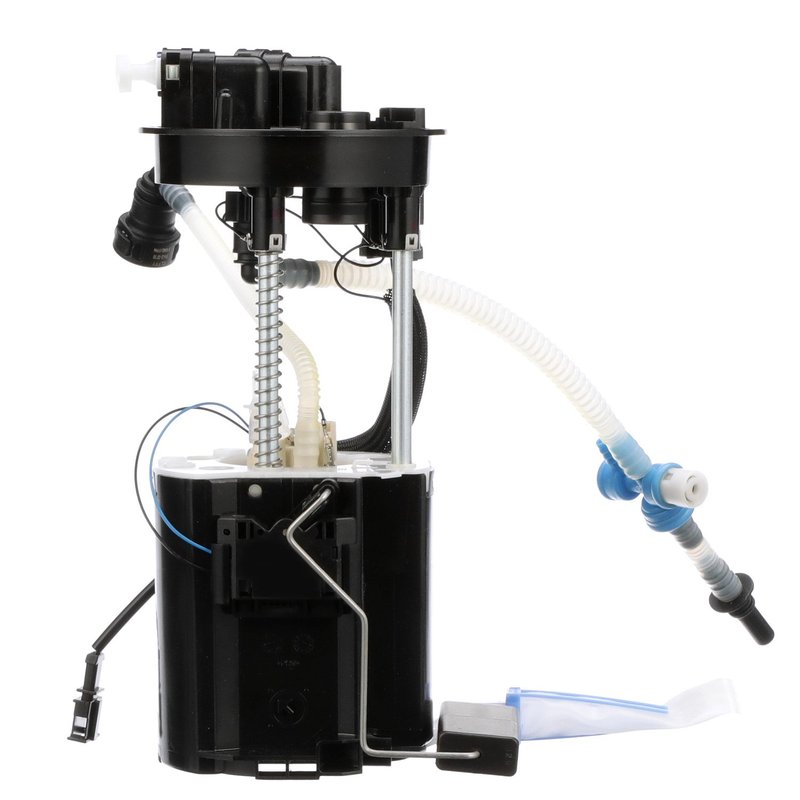

Delphi FG2201 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volvo Vehicles

The Delphi FG2201 fuel pump module assembly is designed to provide consistent fuel delivery for select Volvo models. Engineered for in-tank installation, this electric fuel pump module ensures optimal performance and fuel efficiency for your Volvo S80, XC60, and XC70.

Key Features of Delphi FG2201 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 150 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Compatible with gasoline fuel systems
• Equipped with an external strainer inlet and female quick connect outlets (three outlets, 0.375 inch diameter)
• Blade-type male terminals with six terminal quantity for secure electrical connections
• Regulator included to maintain system pressure at 70 psi
• Average flow rating of 40 liters per hour and average current draw of 10 amps
• Standard replacement grade designed for reliable operation

Detailed Description of the Delphi FG2201 Fuel Pump Module

This Delphi FG2201 fuel pump module assembly is engineered specifically for in-tank installation in Volvo S80, XC60, and XC70 models. The electric pump operates at 12 volts and delivers a consistent fuel flow rate of 40 liters per hour, supporting efficient engine performance. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. The external strainer inlet helps protect the pump from contaminants, while the included regulator maintains system pressure at 70 psi to ensure steady fuel delivery. The pump features three female quick connect outlets with a 0.375-inch outside diameter, facilitating secure fuel line connections. Electrical connections are made via six blade-type male terminals, designed for durability and reliable contact. This standard replacement grade module is suitable for gasoline fuel systems and is built to meet OEM specifications for the specified Volvo models.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Volvo S80, XC60, and XC70
• Resolving inconsistent fuel pressure or delivery problems
• Fixing inaccurate fuel level readings due to faulty sender assemblies
• Addressing fuel pump electrical connection failures
• Improving fuel system reliability in gasoline-powered Volvo vehicles

Installation Notes and Tips

Installation of the Delphi FG2201 fuel pump module assembly requires removal of the fuel tank for in-tank mounting. Ensure all electrical connections use the six blade-type male terminals provided on the module. Verify that the fuel lines connect securely to the three female quick connect outlets with 0.375-inch diameter fittings. It is recommended to inspect and clean the fuel tank and lines before installation to prevent contamination. Follow vehicle-specific service manuals for safe handling and installation procedures.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG2201 module undergoes rigorous testing to ensure consistent fuel delivery and accurate fuel level sensing. This product is offered as a standard replacement part and includes a manufacturer-backed warranty to protect against defects in materials and workmanship.
