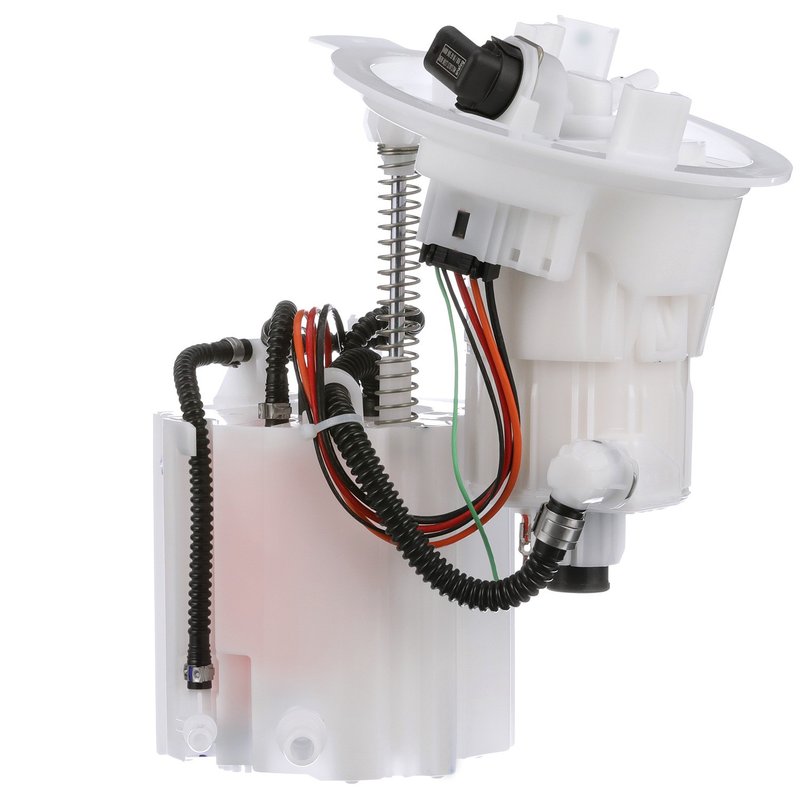

Delphi FG2203 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2203 fuel pump module assembly is designed for reliable fuel delivery in select Mercedes-Benz models. Engineered as an in-tank electric pump, it supports flex fuel applications and includes an internal strainer for optimal filtration.

• Outlet outside diameter: 0.313 inches
• Voltage: 12.0 volts
• Includes fuel pressure regulator
• Blade-type terminals, 7 in total, male gender
• Internal strainer inlet type with quick connect outlet
• Single outlet quantity
• Electric pump type with average current draw of 10 amps
• Standard replacement grade for Mercedes-Benz vehicles
• Includes strainer but excludes gasket, lock ring, and fuel level sender assembly

Technical Details and Compatibility

The FG2203 fuel pump module assembly is specifically compatible with Mercedes-Benz CLA45 AMG, CLA250, GLA45 AMG, and GLA250 models. This in-tank electric fuel pump operates at 12 volts and features a quick connect outlet for efficient fuel line attachment. The internal strainer ensures contaminants are filtered before fuel reaches the engine, helping maintain performance and longevity. The included regulator maintains consistent fuel pressure, critical for the fuel system's proper operation. With seven blade-type male terminals, the module integrates seamlessly with the vehicle's electrical system.

Applications and Problem Resolution

This fuel pump module assembly is used to replace faulty or worn fuel pumps in compatible Mercedes-Benz vehicles. It addresses several common fuel system issues, including:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Fuel pressure irregularities affecting engine performance
• Fuel pump noise or overheating due to internal component wear
• Contaminant buildup causing fuel flow restrictions
• Electrical connection failures related to terminal corrosion or damage

Installation Notes and Tips

Installation of the Delphi FG2203 requires removal of the fuel tank or access through the service panel, depending on the vehicle model. Ensure the fuel system is depressurized before beginning work. The module includes a quick connect outlet for straightforward fuel line connection, but note that the gasket or seal is not included and should be inspected or replaced separately. Verify terminal connections are secure and free of corrosion. Follow all manufacturer safety guidelines when handling fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG2203 is a standard replacement grade part designed to restore proper fuel delivery in Mercedes-Benz CLA45 AMG, CLA250, GLA45 AMG, and GLA250 models. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
