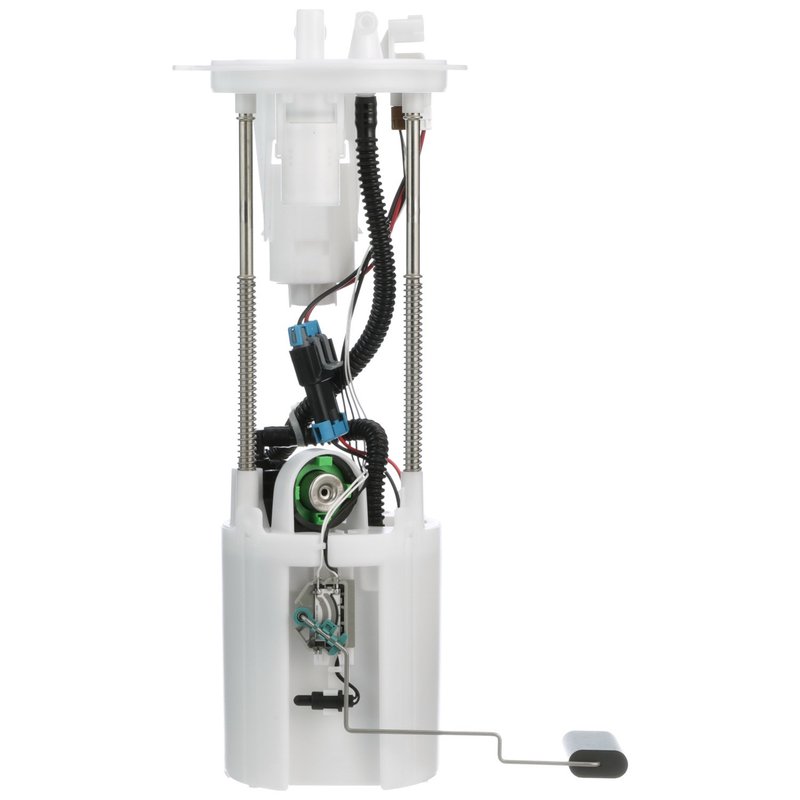

Delphi FG2209 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Nissan TITAN

The Delphi FG2209 fuel pump module assembly is designed specifically for Nissan TITAN models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components tailored for flex fuel systems.

Key Features of Delphi FG2209 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 57 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Equipped with an external strainer inlet and quick connect outlet (0.375 inch diameter)
• Blade-type male terminals with 5 terminal quantity for secure electrical connections
• Regulator included to maintain system pressure at 51 psi
• Designed for flex fuel compatibility, suitable for Nissan TITAN fuel systems
• Average flow rating of 45 liters per hour and average current draw of 10 amps

Detailed Description of the Delphi FG2209 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG2209) is engineered as a standard replacement for Nissan TITAN vehicles requiring an in-tank electric fuel pump. The module integrates a fuel level sender assembly with a float arm, enabling accurate fuel gauge readings. Its external strainer inlet and quick connect outlet ensure efficient fuel filtration and secure hose connections. The included regulator maintains a consistent system pressure of 51 psi, supporting optimal engine performance. The pump operates at 12 volts with a maximum pressure rating of 57 psi, suitable for flex fuel applications. The blade-type male terminals with five connections provide reliable electrical interfacing, while the resistance values (82 ohms empty, 5 ohms full) support proper fuel level sensor operation.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Nissan TITAN flex fuel systems
• Resolving inaccurate fuel gauge readings due to faulty sender assemblies
• Fixing low fuel pressure problems causing engine hesitation or stalling
• Addressing fuel delivery interruptions from clogged or damaged strainers
• Upgrading worn electrical connections to restore consistent pump operation

Installation Notes and Tips

• Compatible with Nissan TITAN models requiring an in-tank fuel pump module assembly
• Ensure proper alignment of the float arm to avoid inaccurate fuel level readings
• Verify blade terminal connections are secure and free of corrosion
• Do not reuse old gaskets or seals; replace as necessary to prevent leaks
• Follow vehicle manufacturer torque specifications when installing the module

Quality Assurance and Warranty

The Delphi FG2209 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure durability and reliable performance in Nissan TITAN vehicles. This part is backed by Delphi's standard replacement warranty, providing confidence in its quality and longevity.
