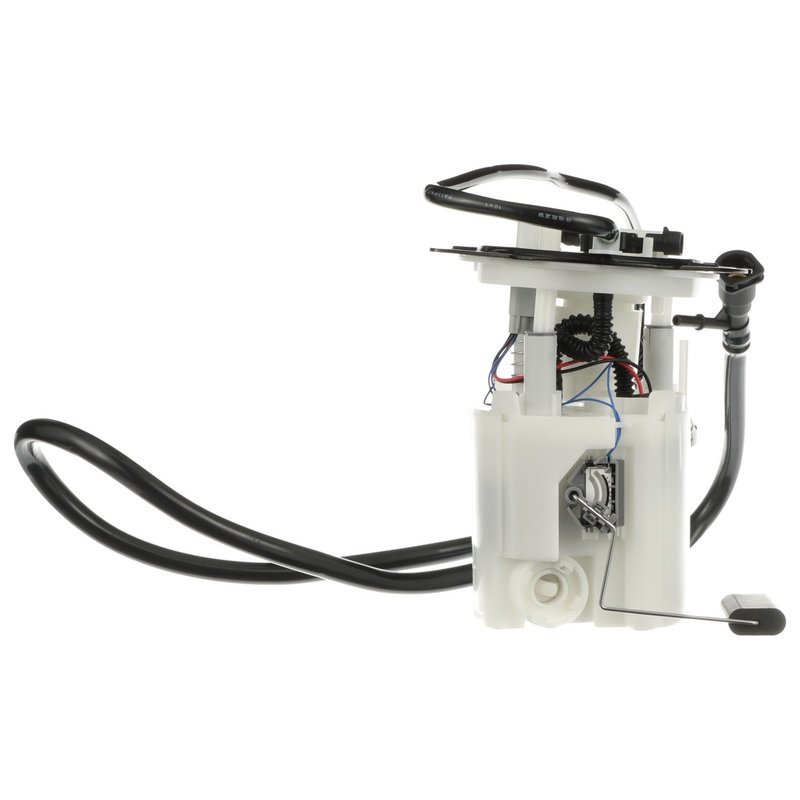

Delphi FG2212 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Saab 9-3

The Delphi FG2212 fuel pump module assembly is designed specifically for the Saab 9-3, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with its integrated components and precise engineering.

Key Features of Delphi FG2212 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for secure fuel line connection
• Operates on 12.0 volts suitable for standard automotive electrical systems
• Designed for gasoline fuel type applications
• Includes internal strainer and fuel level sender assembly with float arm
• Four male blade terminals for reliable electrical connections
• Female quick connect outlet type with two outlets for efficient fuel flow
• Maximum pressure rating of 122 psi and system pressure of 43 psi
• Includes gasket or seal for proper installation and leak prevention
• Average current draw of 10 amps and flow rating of 40 liters per hour
• Equipped with vapor pressure sensor for fuel system monitoring

Detailed Description of the Delphi FG2212 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG2212) is engineered as a standard replacement part for the Saab 9-3. It is an electric in-tank pump that integrates a fuel level sender assembly with a float arm, allowing accurate fuel gauge readings. The internal strainer protects the pump from debris, while the included gasket ensures a secure seal during installation. The module features four male blade terminals and a female quick connect outlet with two outlets, facilitating straightforward electrical and fuel line connections. Designed to operate at 12 volts, it delivers a consistent flow rate of 40 liters per hour and maintains system pressure at 43 psi, with a maximum pressure capacity of 122 psi. The vapor pressure sensor adds an additional layer of fuel system monitoring, supporting emissions control and system diagnostics.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Saab 9-3 models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Addresses fuel delivery interruptions caused by clogged strainers
• Prevents fuel leaks with included gasket and proper sealing

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to avoid electrical hazards
• Verify compatibility with Saab 9-3 model year before replacing the fuel pump module
• Use the included gasket to prevent fuel leaks and ensure a tight seal
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Check all electrical connections for secure fitment of the four blade terminals

Quality Assurance and Warranty

The Delphi FG2212 fuel pump module assembly is manufactured to meet OEM specifications for the Saab 9-3. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. This standard replacement part includes a gasket and instruction sheet to facilitate proper installation. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
