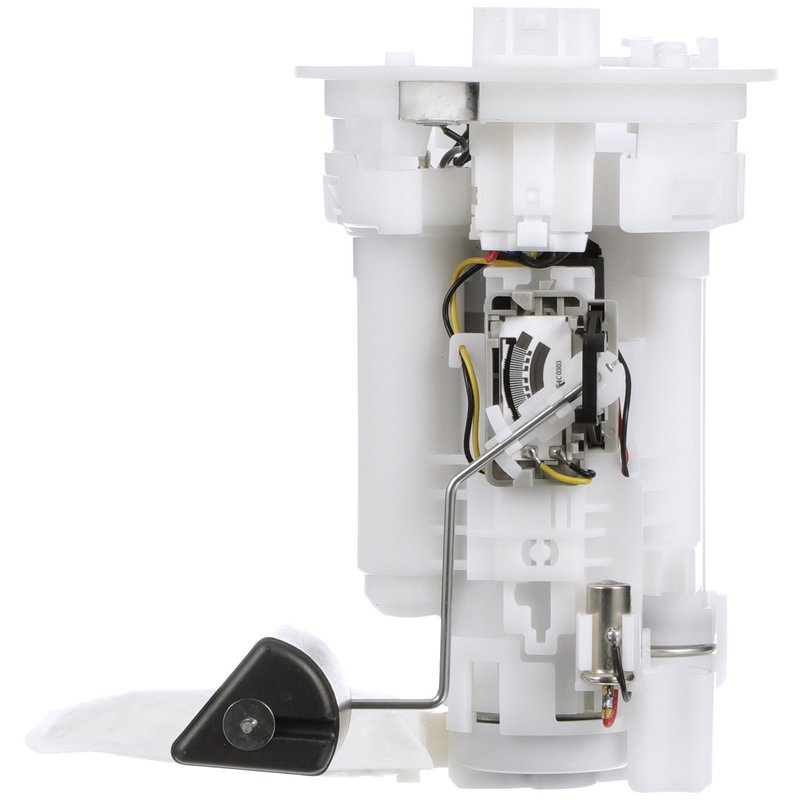

Delphi FG2218 Fuel Pump Module Assembly

Delphi FG2218 Fuel Pump Module Assembly

Delphi FG2218 is an in-tank fuel pump module assembly for gasoline applications, built as a standard replacement for select Toyota Corolla and Chevrolet Prizm models. It combines the pump, fuel level sender assembly, regulator, strainer, gasket or seal, and float arm in one service unit for a direct repair approach.

Key Features

• In-tank electric fuel pump module assembly for 12-volt gas systems
• Includes fuel level sender assembly, regulator, strainer, gasket or seal, and float arm
• Push-in outlet with one outlet and blade-style terminals
• Maximum pressure rated at 49.0 and system pressure listed at 40 psi
• Average current draw of 7 and average flow rating of 13
• Standard replacement part for OE-style service
• Delphi FG2218 cross-references Airtex E8213 and Bosch 69487 for the same application

Detailed Description

Built from Delphi’s OE heritage and aftermarket engineering experience, FG2218 is made for drivers and technicians servicing fuel delivery on 1998-2002 Toyota Corolla and 1998-2002 Chevrolet Prizm models. The module is designed for in-tank installation and includes the fuel pump, sender, regulator, and sealing components needed to restore fuel delivery and fuel level reporting in one assembly. Delphi FG2218 is a practical choice when the original module shows wear, inconsistent pressure, or inaccurate fuel gauge readings.

Compatible With 1998-2002 Toyota Corolla and 1998-2002 Chevrolet Prizm, this fuel pump module assembly supports gasoline fuel systems and uses a 5-terminal male blade connection. The package contents include the fuel pump module assembly with float arm, seal, clip, and instruction sheet. Delphi FG2218 is also referenced by part numbers such as DFG2218 and E16013 in related applications.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation from low or unstable fuel pressure
• Fuel gauge readings that do not match tank level
• Stalling related to an aging in-tank pump module
• Fuel system service needs after tank contamination

Installation Notes and Tips

Fits 1998-2002 Toyota Corolla and 1998-2002 Chevrolet Prizm. Clean the fuel tank before installing the fuel pump to help prevent future seal problems, as noted in the fitment data. Verify electrical connector style, outlet configuration, and system pressure requirements before installation. Because this is an in-tank module, access is typically through the fuel tank service opening or tank removal, depending on vehicle configuration.

Quality Assurance

Delphi builds this module using OE experience gained from supplying major automakers, with aftermarket coverage developed from that original equipment knowledge. The FG2218 is a standard replacement fuel pump module assembly intended to restore fuel delivery performance and sender function on the listed applications.
