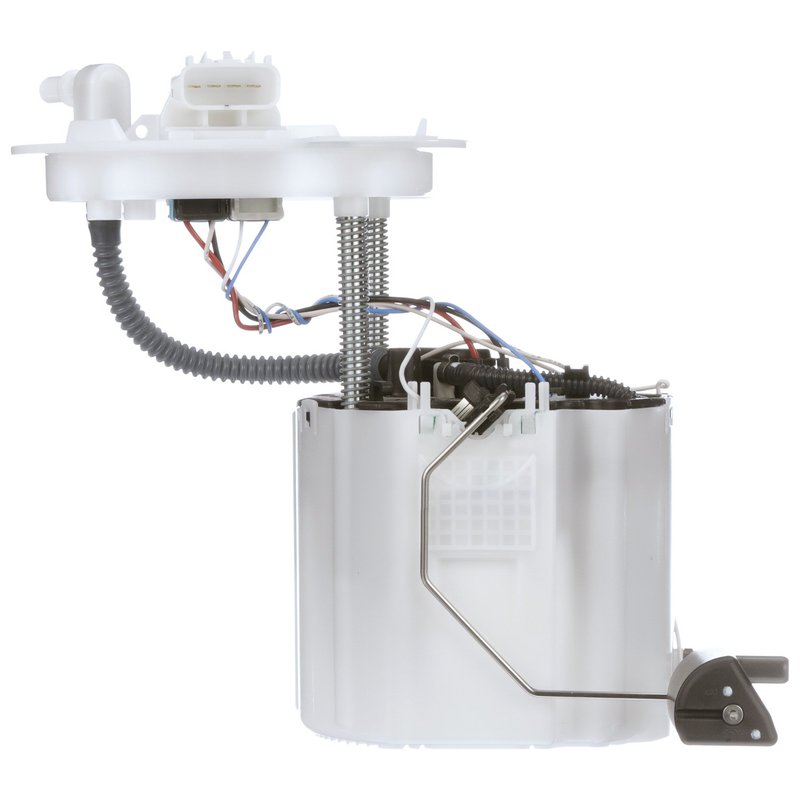

Delphi FG2243 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Cadillac CT6

The Delphi FG2243 fuel pump module assembly is designed specifically for Cadillac CT6 models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless fit and function.

Key Features of Delphi FG2243 Fuel Pump Module

• 12.0 Volt electric fuel pump designed for gasoline fuel systems
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and strainer included to protect the pump from debris
• Quick connect outlet with 0.375 inch outside diameter for secure fuel line attachment
• Blade-type male terminals with four connections for reliable electrical interface
• Comes with gasket or seal to ensure leak-free installation
• Standard replacement grade suitable for maintaining factory performance
• Resistance values: 250 ohms empty, 40 ohms full, supporting accurate fuel level readings

Detailed Description of the Delphi FG2243 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG2243) is engineered for in-tank installation on Cadillac CT6 vehicles. The electric pump operates at 12 volts and is optimized for gasoline fuel delivery. It features an internal strainer inlet and includes a strainer to prevent contaminants from entering the fuel system, enhancing durability and longevity. The module incorporates a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The outlet is designed as a quick connect type with a 0.375 inch outside diameter, facilitating straightforward fuel line connections. Electrical connections use four blade-type male terminals, ensuring secure and stable power delivery. The package includes a gasket or seal to maintain a proper seal during installation.

Common Applications and Issues Addressed

• Replacement of faulty or failing fuel pump modules in Cadillac CT6
• Resolving inconsistent fuel delivery or engine performance issues
• Fixing inaccurate fuel gauge readings due to sender assembly failure
• Addressing fuel system contamination by utilizing the included internal strainer
• Eliminating fuel leaks with the included gasket or seal

Installation Notes and Tips

• Ensure vehicle battery is disconnected before beginning installation to prevent electrical hazards
• Verify compatibility with Cadillac CT6 model year before installation
• Handle the float arm carefully to avoid damage to the fuel level sender assembly
• Use the included gasket or seal to prevent fuel leaks and ensure proper sealing
• Check all electrical connections for secure fitment of the four blade terminals

Quality Assurance and Warranty Information

The Delphi FG2243 fuel pump module assembly is manufactured to meet standard replacement specifications, ensuring reliable operation and compatibility with Cadillac CT6 fuel systems. This part undergoes quality control testing to verify electrical resistance and fuel delivery performance. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer, as they may vary.
