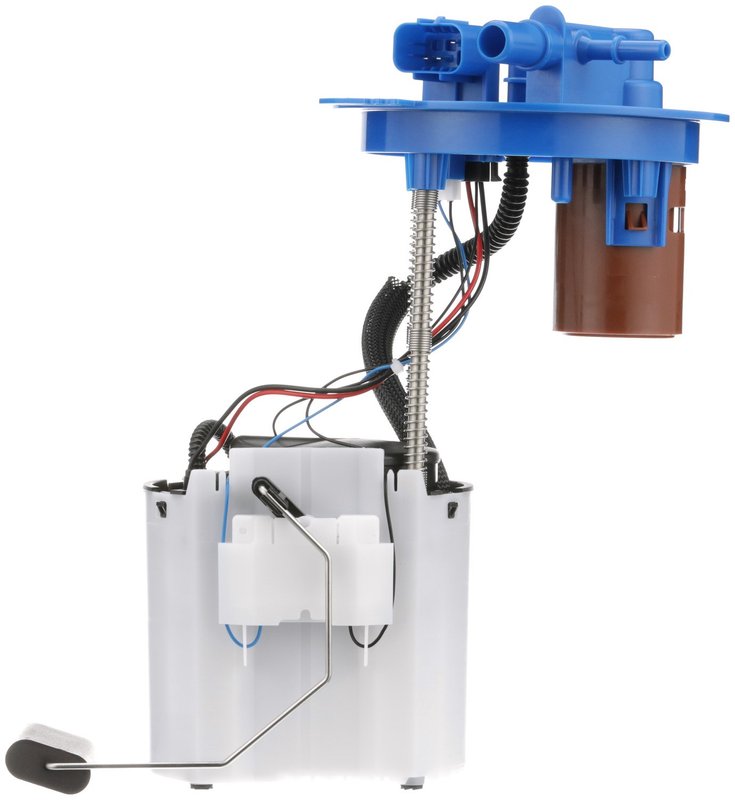

Delphi FG2249 Fuel Pump Module Assembly
| Brand | Delphi FG2249 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 84 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250 |
| Resistance Ohms Full | 40 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 50 |
| Fits | Chevrolet · 4 vehicles |
OE-style replacement. Specific fit fuel pump module assembly for straightforward installation.
Turbine pump design. Delivers steady fuel flow with a 12-volt electric setup.
Includes key components. Comes with a fuel sending unit, regulator, strainer, filter, and seal.
Cross-references 23308793, 23375543 and 84474299 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2249 Fuel Pump Module Assembly
The Delphi FG2249 fuel pump module assembly is a specific-fit, in-tank replacement for select Chevrolet Volt models. Built for 12-volt gas applications, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm for a complete fuel delivery service.
Fits 2016-2019 Chevrolet Volt, N/A. This Delphi FG2249 assembly is engineered for vehicles that need a direct replacement fuel pump module with integrated fuel level sensing and regulated fuel delivery.
Key Features
- Specific-fit fuel pump module assembly for select Chevrolet Volt applications
- 12V electric turbine pump for in-tank gas fuel systems
- Includes fuel sending unit, regulator, strainer, fuel filter, seal, and float arm
- Quick-connect outlet design with 3 outlets and 1 female connector
- Premium-grade construction with plastic housing and nitrile rubber seal material
- Average flow rating of 28 and maximum pressure rating of 84
- Blade terminals, 4 terminal quantity, and internal strainer design
Detailed Description
Delphi FG2249 is a fuel pump module assembly for 2016-2019 Chevrolet Volt models. It is an in-tank, electric turbine-style unit built for gas applications and configured as a specific-fit replacement. The assembly includes the fuel sending unit and regulator, helping restore fuel delivery and fuel level reporting in one service part. Delphi’s fuel system background as an OE supplier is reflected in the module’s premium construction and application-specific design. This part number, FG2249, is also a useful reference when cross-checking replacement needs for the Chevrolet Volt fuel pump module assembly.
This part cross-references A46297 and PFS-1070 for the same application.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Fuel pressure loss from a worn in-tank pump module
- Inaccurate fuel level readings from a failing sending unit
- Engine hesitation or stalling related to fuel supply issues
- Fuel system service needs on 2016-2019 Chevrolet Volt models
Installation Notes and Tips
Verify tank access, connector style, outlet configuration, and fitment before installation. This module uses a quick-connect outlet, a single rectangular connector, and a specific-fit layout for the listed Chevrolet Volt applications. Replace the seal during service and confirm all fuel line connections are fully seated before returning the vehicle to operation. The package contents include the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included.
Quality Assurance
Delphi has supplied fuel delivery components to global vehicle manufacturers for decades and maintains a strong focus on OE-level fuel system engineering. FG2249 is built as a premium replacement fuel pump module assembly for the listed Chevrolet Volt fitment.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2019 | Chevrolet | Volt | — | — | — |
| 2018 | Chevrolet | Volt | — | — | — |
| 2017 | Chevrolet | Volt | 1.5L | L4 | — |
| 2016 | Chevrolet | Volt | 1.5L | L4 | — |
