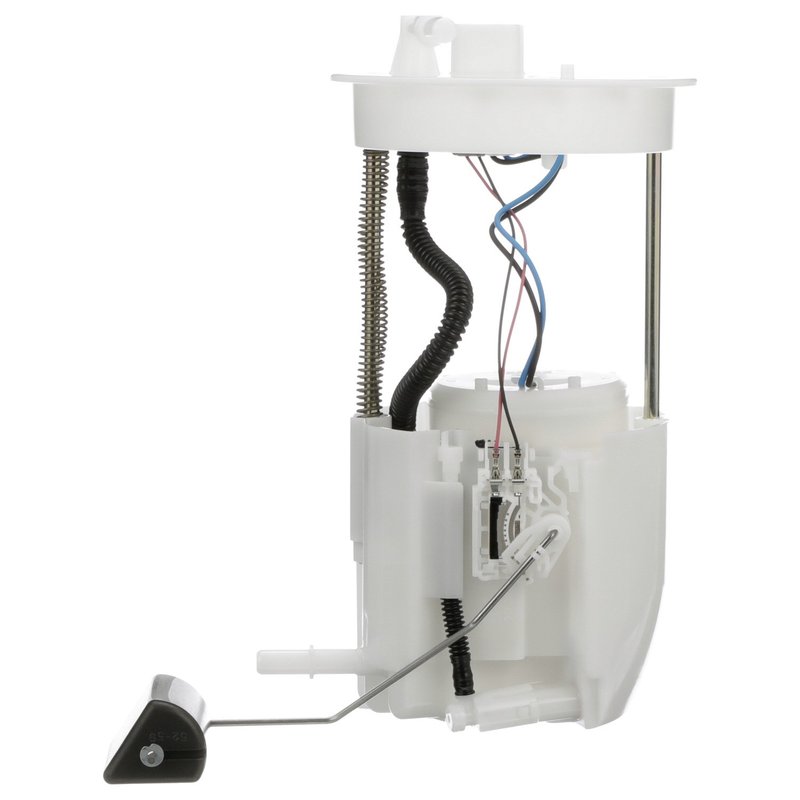

Delphi FG2252 Fuel Pump Module Assembly

Delphi FG2252 Fuel Pump Module Assembly

Delphi FG2252 is an in-tank fuel pump module assembly for gasoline applications, built with a 12-volt electric pump, integrated fuel level sender, and included strainer. It is a standard replacement for the 2016-2021 Mazda CX-3 and is built around Delphi’s OE-focused fuel system experience.

Key Features

• Fuel pump module assembly for gas-powered vehicles
• 12.0V electric pump with 10 amp average current draw
• In-tank design with quick-connect outlet and 0.375 in. outlet outside diameter
• Regulator included for complete module service
• Fuel level sender assembly included with 200 ohms empty / 20 ohms full resistance
• Strainer included; internal strainer design
• Blade terminals, 4 terminal quantity, male terminal gender
• Standard replacement part number FG2252

Detailed Description

Delphi FG2252 fuel pump module assembly is engineered for direct replacement service in gasoline fuel systems. It includes the pump module, float arm, fuel level sender assembly, regulator, and strainer, helping restore proper fuel delivery and tank level reporting in one service part. This Delphi FG2252 application is listed for the 2016-2021 Mazda CX-3, making it a focused choice for Mazda CX-3 fuel pump module replacement work.

Delphi draws on OE heritage and broad aftermarket coverage to produce fuel system components for a wide range of vehicles and model years. This module uses an in-tank electric pump, quick-connect outlet, and blade-style terminals for a service-friendly layout. This part cross-references A46770 and SP4192M for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent pump output
• Incorrect fuel gauge readings from a worn sender
• Fuel starvation under load from a restricted or failing module
• Poor drivability related to an aging in-tank pump assembly

Installation Notes and Tips

Fits 2016-2021 Mazda CX-3, N/A. Clean the fuel tank before installing the fuel pump to help prevent future seal problems. Verify connector style, outlet type, and sender resistance before installation. Because this module is installed in the tank, proper sealing and cleanliness are important for reliable operation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-focused engineering knowledge developed through long-term supplier experience with major automakers. FG2252 is a standard replacement part designed to meet the needs of the listed Mazda CX-3 applications.
