Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

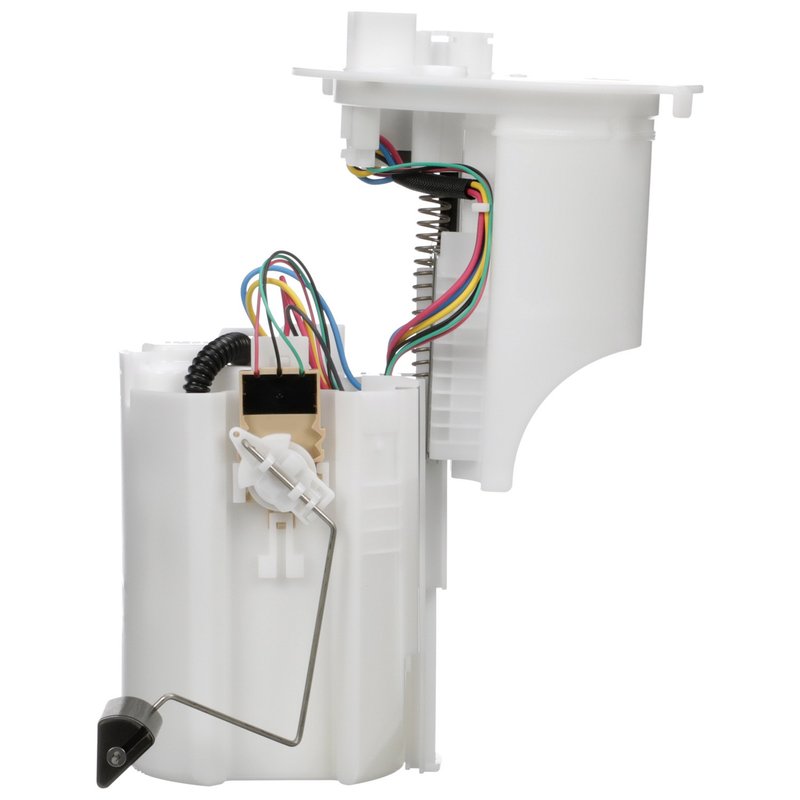

Delphi FG2255 Fuel Pump Module Assembly
| Brand | Delphi FG2255 |
|---|---|
| Average Current Draw | 10 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 1 |
| Outlet Type | Push In |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 425.0 |
| Resistance Ohms Full | 34.0 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 7 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Lexus and Toyota · 38 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Electric pump. Runs on 12 volts for dependable fuel delivery.
Strainer included. Built with an internal strainer and fuel level sender assembly.
Cross-references 23070-25020, 23070-31030 and 23220-25020 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Toyota and Lexus
The Delphi FG2255 fuel pump module assembly is a standard replacement for select Toyota and Lexus applications with in-tank electric fuel delivery. Built from Delphi’s OE heritage and application knowledge, it combines the fuel pump module, float arm, fuel level sender assembly, and internal strainer in one service part.
Compatible with 2018-2024 Toyota Camry, 2019-2022 Toyota Avalon, and 2019-2024 Lexus ES300h, this Delphi FG2255 is built for 12-volt gasoline systems with a blade terminal design and push-in outlet connection.
Key Features
- Delphi FG2255 fuel pump module assembly for in-tank gasoline applications
- 12.0-volt electric pump with 10 amp average current draw
- Fuel level sender assembly included for integrated tank level reporting
- Internal strainer included; inlet type is strainer
- Male blade terminals with 7-terminal electrical connection
- Push-in outlet design with 0.313 in. outlet outside diameter
- Standard replacement grade for select Toyota and Lexus vehicles
- Package contents include fuel pump module assembly with float arm and instruction sheet
Detailed Description
The Delphi FG2255 is an in-tank fuel pump module assembly engineered for gasoline-powered Toyota and Lexus vehicles that use an integrated pump and sender design. It includes the fuel pump module assembly with float arm and fuel level sender assembly, helping restore fuel delivery and tank level signal performance in one service operation. Delphi draws on OE experience and supplier knowledge developed over decades of original-equipment work, then applies that background to aftermarket replacement parts for a wide range of model years. This part cross-references DFG2255 for the same application.
For fitment-focused searches, this part is a direct option for a Toyota Camry fuel pump module assembly, Toyota Avalon fuel pump replacement, and Lexus ES300h in-tank fuel pump module service. The FG2255 uses a 12-volt electric pump, internal strainer, and push-in outlet configuration, with no regulator, gasket or seal, or lock ring included.
What It Helps Fix
- Hard starting caused by weak or failing in-tank fuel delivery
- Engine stalling from inconsistent fuel pressure supply
- Fuel gauge errors related to a worn sender assembly
- Poor acceleration from inadequate pump output
- Fuel starvation symptoms in select Toyota Camry, Avalon, and Lexus ES300h models
Installation Notes and Tips
Before installing a replacement pump, clean the fuel tank to reduce the risk of contamination-related failure. This is especially important on 2018-2021 Toyota Camry, 2019-2021 Toyota Avalon, and 2019-2021 Lexus ES300h applications where tank contamination is noted in the fitment data. For 2018-2019 Toyota Camry Japan-built vehicles, tank cleaning is specifically recommended before pump replacement. Verify electrical connector style, outlet connection, and sender compatibility before installation.
Quality Assurance
Delphi builds this replacement part using OE-focused engineering knowledge and a broad aftermarket portfolio developed from original-equipment experience. The FG2255 is a standard replacement fuel pump module assembly intended for the listed Toyota and Lexus applications.
- Fits 2018-2021 Toyota Camry, N/A
- Fits 2022-2024 Toyota Camry, N/A
- Fits 2022 Toyota Avalon, N/A
- Fits 2019-2021 Toyota Avalon, N/A
- Fits 2019-2021 Lexus ES300h, N/A
- Fits 2022-2024 Lexus ES300h, N/A
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Lexus | ES300h | — | 2.5L | L4 | — | N/A | — |
| 2024 | Toyota | Camry | — | 2.5L | L4 | — | N/A | — |
| 2023 | Lexus | ES300h | — | 2.5L | L4 | — | N/A | — |
| 2023 | Toyota | Camry | — | 2.5L | L4 | — | N/A | — |
| 2022 | Lexus | ES300h | — | — | — | — | N/A | — |
| 2022 | Toyota | Avalon | — | 2.5L | L4 | FULL HYBRID EV-GAS (FHEV) | N/A | — |
| 2022 | Toyota | Camry | — | 2.5L | L4 | — | N/A | — |
| 2021 | Lexus | ES300h | — | — | — | — | N/A | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01. |
| 2021 | Toyota | Avalon | — | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2021 | Toyota | Camry | — | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Lexus | ES300h | — | — | — | — | N/A | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01. |
| 2020 | Toyota | Avalon | — | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | XSE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | SE Nightshade | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | Hybrid XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | Hybrid SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Toyota | Camry | Hybrid LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Lexus | ES300h | — | — | — | — | N/A | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01. |
| 2019 | Toyota | Avalon | — | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | Hybrid XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | Hybrid SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | Hybrid LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | XSE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Toyota | Camry | L | — | — | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2018 | Toyota | Camry | Hybrid XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | Hybrid SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | Hybrid LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | XSE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | XLE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | SE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | LE | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Camry | L | — | — | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
