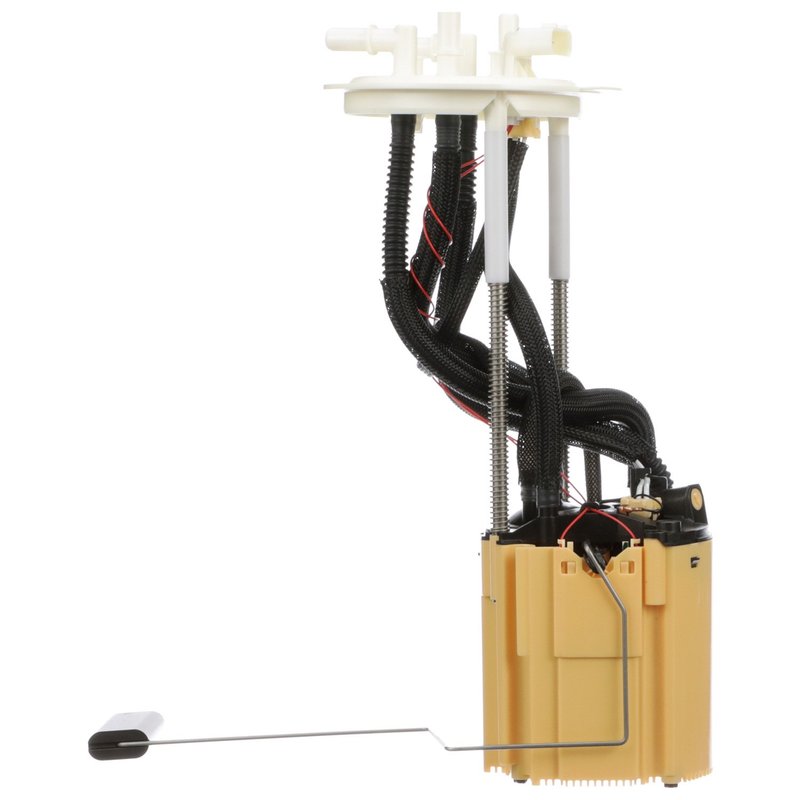

Delphi FG2259 Fuel Pump Module Assembly
| Brand | Delphi FG2259 |
|---|---|
| Average Current Draw | 10 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Diesel |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Outlet Outside Diameter | 0.500 |
| Outlet Quantity | 4 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Ford · 67 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Includes key components. Comes with a regulator, seal, strainer, and fuel level sender assembly.
OE heritage. Built from Delphi's century of OE experience and supplier knowledge.
Cross-references EFG2259, HC3Z 9H307-AD and HC3Z 9H307-F for the same application. See all 7.
$727.94Free shipping
In stock · usually ships same day before 1pm CST
Vehicle: not selected
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Fitment not checked
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$727.94
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options
Fuel Pump Module Assembly for Ford Super Duty
The Delphi FG2259 fuel pump module assembly is a standard replacement for select Ford Super Duty diesel applications. Built with OE heritage and backed by Delphi’s long history supplying automakers, it combines the fuel pump, sender, regulator, seal, and strainer in one in-tank module for service on the fuel delivery system.
- In-tank electric fuel pump module assembly for diesel fuel systems
- 12.0-volt operation with 10-amp average current draw
- Fuel level sender assembly included for accurate tank level reporting
- Regulator included for integrated fuel pressure control
- Strainer and gasket/seal included for service-ready installation
- Blade terminals, male terminal gender, 4 terminals
- Quick-connect outlet design with 4 outlet ports
- Standard replacement part number FG2259
OE-Style Fuel Delivery Replacement
Delphi FG2259 is built for diesel fuel delivery service in Ford F-250 Super Duty and Ford F-350 Super Duty trucks. It is an in-tank electric fuel pump module assembly with a fuel level sender, internal strainer, quick-connect outlet, and integrated regulator. The module uses a 0.500-inch outlet outside diameter and is supplied with a seal and instruction sheet. Delphi’s OE experience is reflected in the component layout and application coverage for late-model Super Duty trucks. This part cross-references Ford HC3Z 9H307-AD for the same application.
Vehicle Fitment
- Fits 2021-2025 Ford F-250 Super Duty, N/A
- Fits 2022-2025 Ford F-350 Super Duty, N/A
- Fits 2017-2021 Ford F-350 Super Duty, N/A. Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 gallon tank. Use fuel tank cleaning kit FC01.
- Fits 2017-2020 Ford F-250 Super Duty, N/A. Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 gallon tank. Use fuel tank cleaning kit FC01.
Common Problems This Part Addresses
- Hard starting caused by weak or failing in-tank fuel pump output
- Inaccurate fuel gauge readings from a worn sender assembly
- Fuel pressure loss from a damaged regulator or pump module
- Restricted fuel flow from a clogged internal strainer
- Fuel delivery issues in diesel Ford F-250 Super Duty and F-350 Super Duty trucks
Installation Notes and Tips
Confirm the vehicle’s fuel system and tank configuration before installation. For 2017-2021 Ford F-350 Super Duty and 2017-2020 Ford F-250 Super Duty models with a 34 gallon tank, clean the fuel tank before installing the new module to reduce the risk of repeat failure. Verify electrical connector style, outlet connection type, and sender resistance before service. The module is supplied with a seal and instruction sheet; no lock ring is included.
Quality Assurance
Delphi builds aftermarket fuel system parts using OE experience developed over decades of supplying major automakers. FG2259 is a standard replacement fuel pump module assembly engineered for the listed Ford Super Duty diesel applications.
This part fits 67 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2025 | Ford | F-250 Super Duty | — | — | 6.7L | V8 | N/A | — |
| 2025 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 6.7L | V8 | N/A | — |
| 2024 | Ford | F-250 Super Duty | — | — | 6.7L | V8 | N/A | — |
| 2024 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 6.7L | V8 | N/A | — |
| 2023 | Ford | F-250 Super Duty | — | — | 6.7L | V8 | N/A | — |
| 2023 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 6.7L | V8 | N/A | — |
| 2022 | Ford | F-250 Super Duty | — | — | 6.7L | V8 | N/A | — |
| 2022 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | 6.7L | V8 | N/A | — |
| 2021 | Ford | F-250 Super Duty | — | — | 6.7L | V8 | N/A | — |
| 2021 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | Platinum | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | Limited | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2021 | Ford | F-350 Super Duty | King Ranch | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-250 Super Duty | — | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | Platinum | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | Limited | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2020 | Ford | F-350 Super Duty | King Ranch | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-250 Super Duty | — | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | Platinum | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | Limited | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2019 | Ford | F-350 Super Duty | King Ranch | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-250 Super Duty | — | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | Platinum | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | Limited | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2018 | Ford | F-350 Super Duty | King Ranch | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-250 Super Duty | — | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | Platinum | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2017 | Ford | F-350 Super Duty | King Ranch | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| No rows match your filter. | ||||||||
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
EFG2259HC3Z 9H307-ADHC3Z 9H307-FHC3Z 9H307-MPFS-1121PFS-1141PFS-1316
