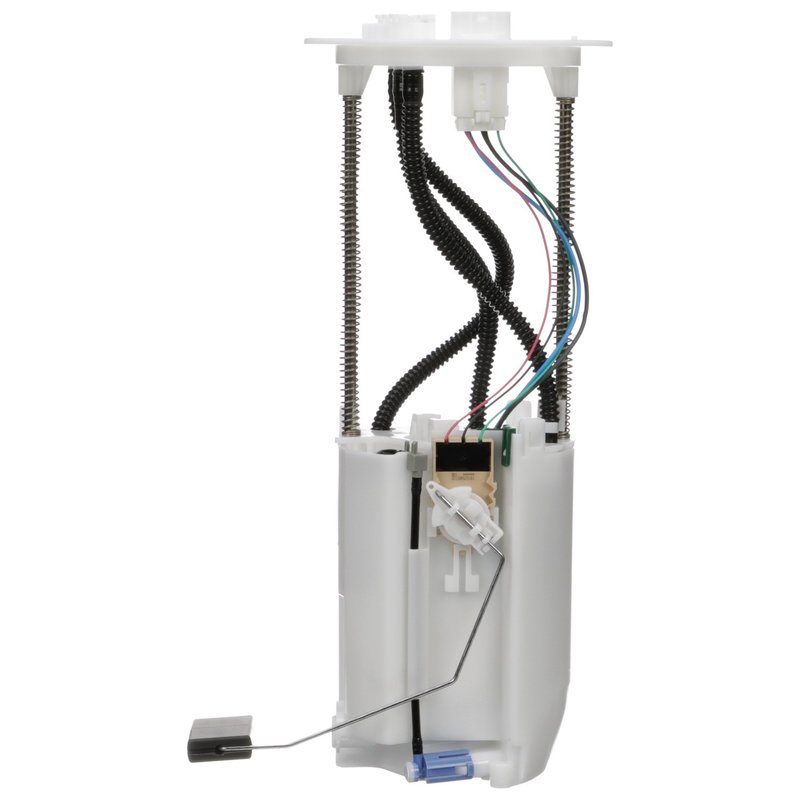

Delphi FG2265 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2265 fuel pump module assembly is designed for reliable fuel delivery in select Lexus and Toyota vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems and includes an integrated fuel level sender assembly for accurate fuel monitoring.

• Compatible with Lexus Land Cruiser and Toyota LX570 models
• 12.0-volt electric pump with internal strainer inlet
• Includes fuel level sender assembly with float arm
• Push-in outlet type with 0.313 inch outside diameter
• Five male blade terminals for secure electrical connections
• Standard replacement grade with internal strainer included
• Average current draw of 10 amps for efficient operation

Technical Details and Features

The Delphi FG2265 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and an internal strainer to protect the pump from debris. The outlet consists of three push-in connections with an outside diameter of 0.313 inches, ensuring proper fuel flow. The module includes five male blade terminals for electrical connectivity but does not include a regulator, gasket, or lock ring. The fuel level sender assembly is integrated, providing accurate fuel level readings through resistance values ranging from 34 ohms (full) to 425 ohms (empty). This electric pump module is intended for in-tank installation, making it suitable for the fuel systems of Lexus Land Cruiser and Toyota LX570 vehicles.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Lexus Land Cruiser and Toyota LX570
• Resolves fuel delivery issues such as engine stalling or poor acceleration
• Addresses inaccurate fuel gauge readings with integrated fuel level sender
• Eliminates fuel pump noise caused by worn internal components
• Prevents fuel system contamination with internal strainer protection

Installation Notes and Tips

Installation of the Delphi FG2265 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the five male blade terminals provided. Verify the push-in outlet fittings are securely connected to the fuel lines with a 0.313 inch diameter. Since the module does not include a regulator or gasket, reuse existing components or source replacements as needed. Follow vehicle-specific service manuals for safe fuel system handling and pressure relief procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Lexus and Toyota vehicles. It includes a fuel level sender assembly and internal strainer to maintain fuel system integrity. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards to ensure reliable performance and durability.
