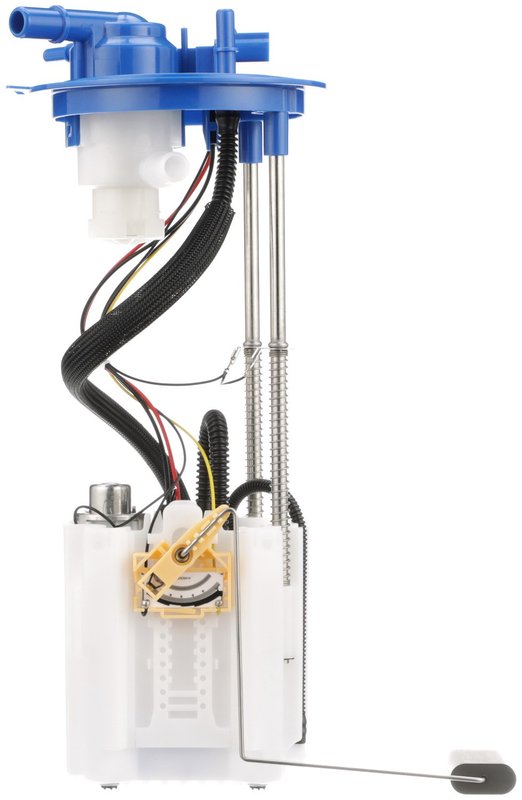

Delphi FG2266 Fuel Pump Module Assembly
| Brand | Delphi FG2266 |
|---|---|
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 990.0 |
| Resistance Ohms Full | 51.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 10 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, seal, instruction sheet |
| Vapor Pressure Sensor | No |
| Product line | Discontinued |
| Fits | Ram · 7 vehicles |
OE heritage built in. Backed by a century of original-equipment know-how.
Complete module assembly. Includes pump, float arm, seal, and fuel level sender.
In-tank electric design. Delivers fuel through a quick-connect outlet with regulator included.
Cross-references 6839 9001AA, 6839 9001AB and 6839 9001AC for the same application. See all 5.
Delphi FG2266 Fuel Pump Module Assembly
The Delphi FG2266 fuel pump module assembly is a standard replacement for select Ram trucks with in-tank gasoline fuel systems. Built with Delphi OE heritage and application knowledge, it includes the fuel pump module assembly, float arm, seal, and instruction sheet for a direct-fit service solution.
Compatible with Ram 1500 Classic and Ram 1500 applications, this module is built for 12-volt operation and includes an integrated fuel level sender assembly, regulator, and strainer. The Delphi FG2266 is a practical choice for restoring fuel delivery performance on 2018-2024 Ram 1500 Classic and 2018 Ram 1500 vehicles.
Key Features
- Fuel pump module assembly for gasoline applications
- 12.0-volt electric in-tank design
- Includes fuel level sender assembly and regulator
- Quick-connect outlet with 3 outlets and 0.375 in. outlet outside diameter
- Internal strainer and included gasket/seal
- Blade terminals, 4 terminal quantity, male terminal gender
- Standard replacement part for select Ram trucks
- Package contents: fuel pump module assembly with float arm, seal, instruction sheet
Product Details
Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers. The FG2266 fuel pump module assembly reflects that background with a service-ready design for in-tank fuel delivery, fuel level reporting, and regulated gasoline flow. It is engineered for select Ram 1500 Classic and Ram 1500 models, making it a focused replacement for vehicles that require this specific module configuration. This part number, FG2266, is also referenced in cross-application listings under EFG2266.
This part cross-references Monroe Shocks & Struts (e.g., EFG2266, P77085M) for the same application.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling related to fuel pump wear
- Incorrect fuel level readings from a failing sender
- Fuel pressure loss in an in-tank gasoline system
- Driveability issues tied to an aging pump module
Installation Notes
Fits 2021-2024 Ram 1500 Classic, N/A. Fits 2019-2020 Ram 1500 Classic, N/A. Fits 2018 Ram 1500, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet type, and tank configuration before installation. The module uses quick-connect outlets, blade terminals, and an internal strainer, so matching the original setup is important for proper service.
Quality Assurance
Delphi builds aftermarket parts using OE experience and heritage developed through work with leading automakers. The FG2266 is a standard replacement fuel pump module assembly designed to meet the needs of the listed Ram applications with the included seal, strainer, regulator, and sender assembly.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Ram | 1500 Classic | Warlock | 5.7L | V8 | N/A | — |
| 2023 | Ram | 1500 Classic | Warlock | 5.7L | V8 | N/A | — |
| 2022 | Ram | 1500 Classic | — | — | — | N/A | — |
| 2021 | Ram | 1500 Classic | — | — | — | N/A | — |
| 2020 | Ram | 1500 Classic | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2019 | Ram | 1500 Classic | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2018 | Ram | 1500 | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
