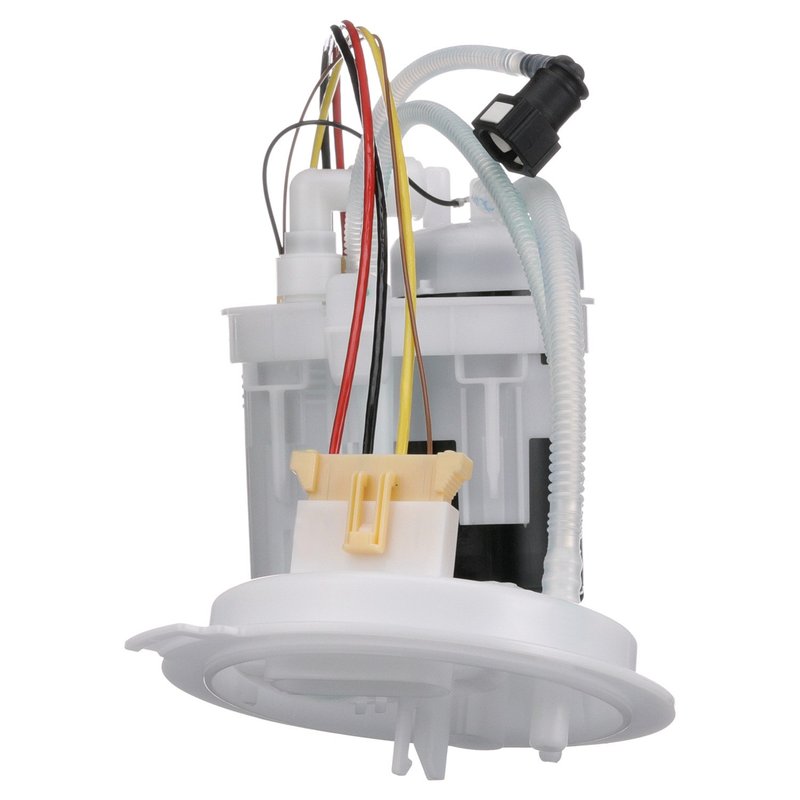

Delphi FG2271 Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

Delphi FG2271 is a standard replacement fuel pump module assembly for gas applications. It is built for in-tank use and includes an electric pump, integrated regulator, and external strainer for consistent fuel delivery.

Compatible With 2017-2019 Audi Q7, N/A. Delphi FG2271 also uses a quick-connect outlet, blade terminals, and a 12-volt electrical design for straightforward system integration.

Key Features

• Standard replacement fuel pump module assembly for gas fuel systems
• In-tank electric pump design with integrated regulator
• External strainer included for fuel pickup protection
• Quick-connect outlet and 4-blade male terminals
• 12-volt electrical specification with 10 amp average current draw

Detailed Description

Delphi FG2271 is engineered as a fuel pump module assembly for the Audi Q7 platform listed in the fitment data. It is designed for in-tank installation and includes the pump, regulator, and strainer elements needed for fuel system service. The assembly uses two outlets, a 0.375-inch outlet outside diameter, and a quick-connect outlet style to match common fuel line connections. Delphi FG2271 is a practical choice when replacing a worn or failing module on 2017-2019 Audi Q7 applications.

Delphi draws on OE experience and supplier knowledge developed over many years of original-equipment work. That background is reflected in the FG2271 fuel pump module assembly and in Delphi's broader aftermarket portfolio. This part cross-references Monroe Shocks & Struts (e.g., 4M0 919 087 G, CFG2271) for the same application.

Common Replacement Reasons

• Hard starting or extended cranking from weak fuel delivery
• Fuel pressure loss caused by a failing pump module
• Intermittent engine hesitation related to inconsistent fuel supply
• Noisy pump operation from worn internal components
• Service replacement for a damaged in-tank module

Installation Notes

Clean the fuel tank before installation to help prevent future seal problems. This module is listed without a gasket or seal, without a lock ring, and without a fuel level sender assembly. Verify electrical connector style, outlet configuration, and tank condition before installation.

Quality Assurance

Delphi FG2271 reflects more than 100 years of OE experience and supplier knowledge used across a wide range of vehicle applications. The part number FG2271 is associated with Delphi's standard replacement line for fuel system service.
