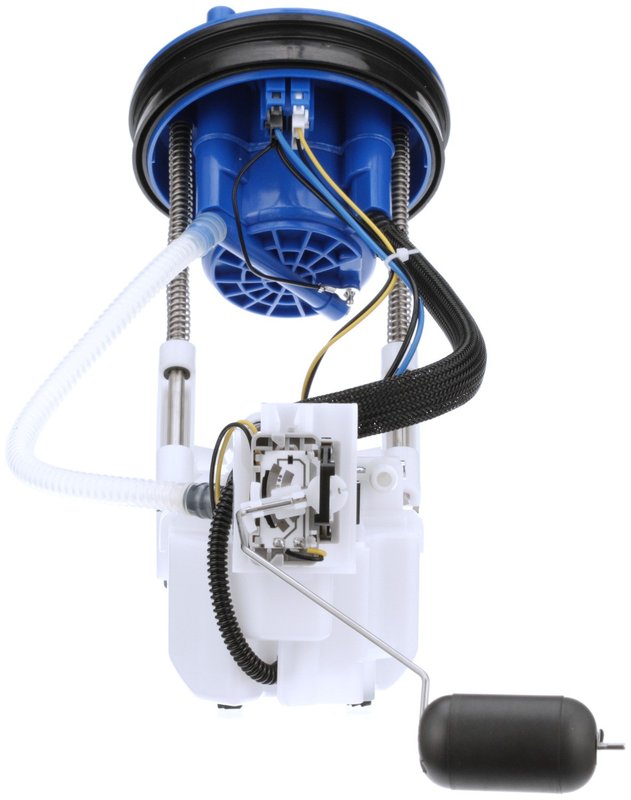

Delphi FG2276 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Honda Crosstour

The Delphi FG2276 fuel pump module assembly is designed specifically for Honda Crosstour models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump ensures efficient operation with integrated components for a seamless fit and function.

Key Features of Delphi FG2276 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average current draw of 10 amps
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and included strainer for fuel filtration
• Quick connect outlet type with 0.375 inch outside diameter for secure fuel line connection
• Regulator, gasket, and lock ring included for proper sealing and installation
• Blade-type male terminals with four terminal quantity for reliable electrical connections
• Designed as a standard replacement part for Honda Crosstour fuel systems

Detailed Description of the Delphi FG2276 Fuel Pump Module

This Delphi fuel pump module assembly is engineered to meet the fuel delivery requirements of Honda Crosstour vehicles. Operating at 12 volts, the electric pump maintains consistent fuel pressure with resistance values ranging from 340 ohms when empty to 10 ohms when full. The module features an internal strainer inlet to prevent contaminants from entering the fuel system, enhancing engine performance and longevity. The quick connect outlet with a 0.375 inch diameter ensures a secure and leak-free connection to the fuel line. Additionally, the included fuel level sender assembly provides accurate fuel tank readings, helping to maintain optimal vehicle operation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Honda Crosstour models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assemblies
• Addresses fuel leaks by providing a complete module with gasket and lock ring
• Improves fuel filtration with the included internal strainer to prevent clogging

Installation Notes and Tips

Installation of the Delphi FG2276 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the blade-type male terminals provided, and verify the quick connect outlet is securely attached to the fuel line. Replace the gasket and lock ring to maintain a proper seal and prevent fuel leaks. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance in Honda Crosstour vehicles. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
