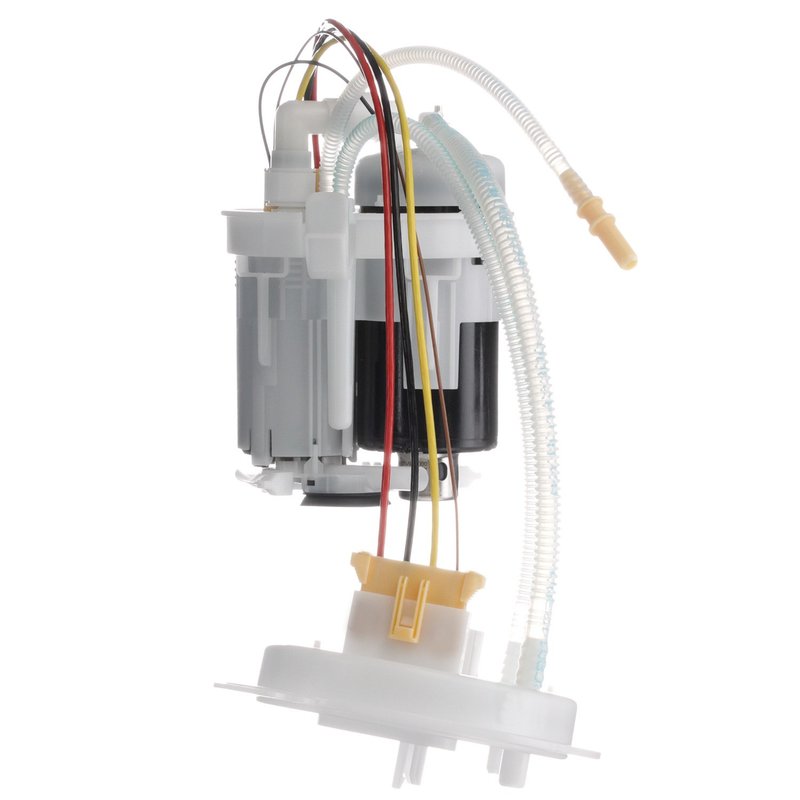

Delphi FG2277 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Audi Q7

The Delphi FG2277 fuel pump module assembly is designed specifically for the Audi Q7, providing reliable fuel delivery for gasoline engines. This in-tank electric fuel pump module ensures consistent performance with its integrated regulator and external strainer.

Key Features of Delphi FG2277 Fuel Pump Module

• 12.0 Volt electric fuel pump module assembly
• Compatible with gasoline fuel systems
• Includes fuel pressure regulator for stable fuel flow
• External strainer inlet type for enhanced filtration
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• In-tank design for direct fuel delivery
• Standard replacement grade for reliable operation
• Package includes fuel pump module assembly without float arm and instruction sheet

Detailed Description

The Delphi FG2277 fuel pump module assembly is engineered to meet the fuel delivery requirements of the Audi Q7. Operating at 12 volts, this electric pump features an external strainer inlet that helps prevent contaminants from entering the fuel system. The module includes a built-in fuel pressure regulator to maintain consistent fuel pressure, ensuring optimal engine performance. The quick connect outlet with a 0.375 inch outside diameter allows for straightforward installation and secure fuel line connections. With four male blade terminals, the electrical interface is designed for durability and reliable power delivery. This in-tank fuel pump module is a standard replacement part, making it suitable for restoring factory-level fuel system function.

Common Applications and Issues Addressed

• Restores proper fuel pressure in Audi Q7 gasoline engines
• Resolves fuel delivery interruptions caused by faulty pump modules
• Eliminates engine stalling or hesitation due to inconsistent fuel flow
• Prevents fuel contamination with external strainer filtration
• Replaces worn or damaged fuel pump modules to maintain drivability

Installation Notes and Tips

When installing the Delphi FG2277 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. The module is designed for in-tank installation and requires careful handling of the electrical connectors and fuel lines. Use the included instruction sheet for guidance on terminal connections and securing the quick connect outlets. Verify that the four blade terminals are correctly aligned to avoid electrical issues. Note that the package does not include a gasket, seal, or lock ring, so these components should be inspected and replaced if necessary during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG2277 part undergoes rigorous testing to ensure consistent voltage operation and fuel delivery performance. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. For warranty information, refer to the product documentation or contact the parts distributor.
