Delphi FG2285 Fuel Pump Module Assembly

Delphi FG2285 Fuel Pump Module Assembly Overview

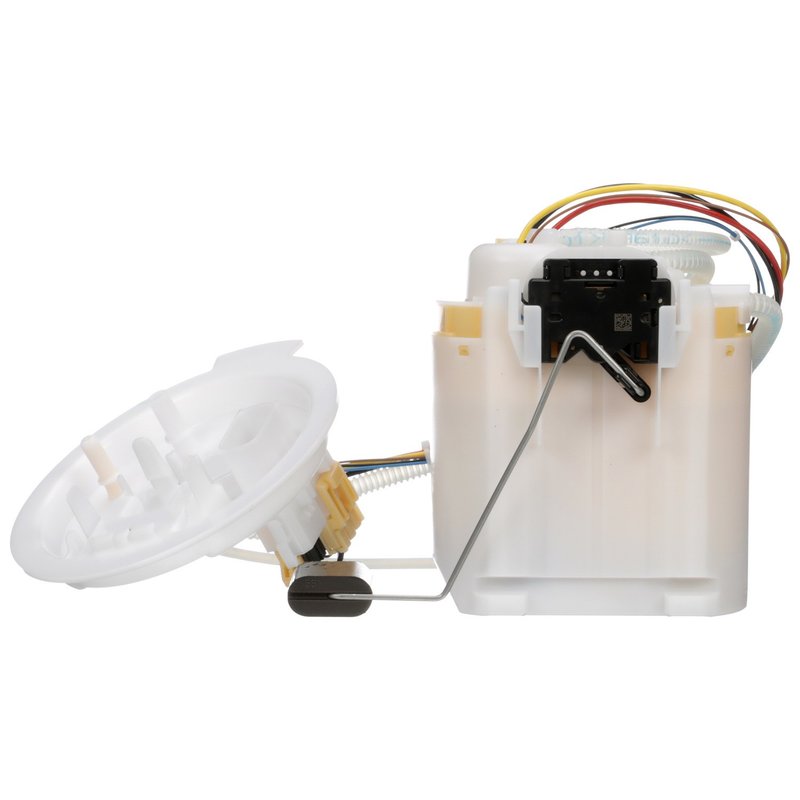

The Delphi FG2285 fuel pump module assembly is designed for reliable fuel delivery in select BMW models. Engineered as an in-tank electric fuel pump, it supports gas fuel systems and includes a fuel level sender assembly for accurate fuel measurement.

• Compatible with BMW 530i, 530i xDrive, 540i, and 540i xDrive models
• 12.0 Volt electric pump with internal strainer inlet
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 8 terminals total
• Standard replacement grade for dependable performance
• Internal strainer included to protect pump components

Technical Details and Features

The Delphi FG2285 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and an internal strainer to prevent debris from entering the pump, enhancing longevity. The outlet uses a quick connect type with two outlets, each having an outside diameter of 0.375 inches, facilitating secure fuel line connections. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. Electrical connections are made via eight blade-type male terminals, ensuring compatibility with the vehicle’s wiring harness. This module is an in-tank pump, which helps maintain consistent fuel pressure and flow within the fuel system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following BMW models:

• BMW 530i
• BMW 530i xDrive
• BMW 540i
• BMW 540i xDrive

It is designed to replace the original fuel pump module in these vehicles, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by Delphi FG2285

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced fuel pressure affecting engine performance
• Clogged fuel strainer leading to restricted fuel flow
• Electrical connection problems from worn or damaged terminals

Installation Notes and Tips

When installing the Delphi FG2285 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Handle the fuel pump carefully to avoid damage to the internal strainer and float arm. Verify that the quick connect outlets are securely attached to the fuel lines to prevent leaks. Since this is an in-tank pump, proper sealing and alignment within the fuel tank are critical for optimal operation. Refer to the vehicle’s service manual for specific removal and installation procedures.

Quality Assurance and Warranty

The Delphi FG2285 fuel pump module assembly is manufactured to meet standard replacement quality specifications. It undergoes rigorous testing to ensure electrical and mechanical reliability. While specific warranty details are not provided here, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or Delphi’s official documentation for exact warranty terms.
