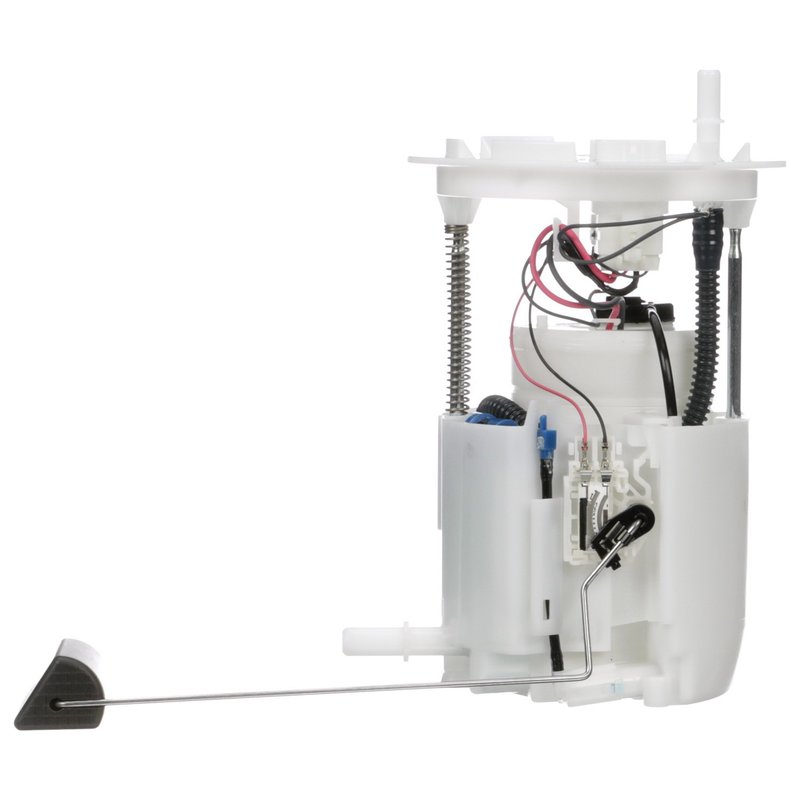

Delphi FG2294 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Ford Edge and Lincoln MKX

The Delphi FG2294 fuel pump module assembly is designed to provide consistent fuel delivery for select Ford and Lincoln vehicles. Engineered as an in-tank electric fuel pump, it ensures efficient fuel flow and accurate fuel level readings for models like the Ford Edge and Lincoln MKX.

Key Features of Delphi FG2294 Fuel Pump Module

• Electric in-tank fuel pump with 12.0-volt operation
• Includes internal strainer and fuel level sender assembly for precise fuel monitoring
• Compatible with gasoline fuel systems
• Features a quick connect outlet with 0.375-inch outside diameter
• Blade-type male terminals with four connections for secure electrical interface
• Regulator included to maintain proper fuel pressure
• Standard replacement grade for reliable performance
• Designed for left-side installation in fuel tanks

Detailed Description of the Delphi FG2294 Fuel Pump Module

This fuel pump module assembly is engineered to meet the specific requirements of Ford Edge, Lincoln MKX, and Nautilus models. The electric pump operates at 12 volts and includes an internal strainer to prevent debris from entering the fuel system. The assembly features a built-in fuel level sender assembly with resistance values ranging from 180 ohms when empty to 10 ohms when full, providing accurate fuel gauge readings. The quick connect outlet with a 0.375-inch diameter ensures a secure and leak-free connection. With four blade-type male terminals, the electrical connections are stable and designed for durability. The included regulator maintains consistent fuel pressure, optimizing engine performance and fuel efficiency.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Edge and Lincoln MKX
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions from clogged or damaged internal strainers
• Suitable for restoring proper fuel system function in gasoline-powered vehicles

Installation Notes and Tips

Installation requires removal of the fuel tank to access the in-tank fuel pump module. Ensure the electrical connectors match the blade-type male terminals and verify the quick connect outlet fits securely with the fuel line. Handle the internal strainer carefully to avoid damage during installation. It is recommended to follow vehicle-specific service manuals for proper torque specifications and safety precautions when working with fuel system components.

Quality Assurance and Warranty Information

The Delphi FG2294 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure reliable operation within specified resistance and current draw parameters. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
