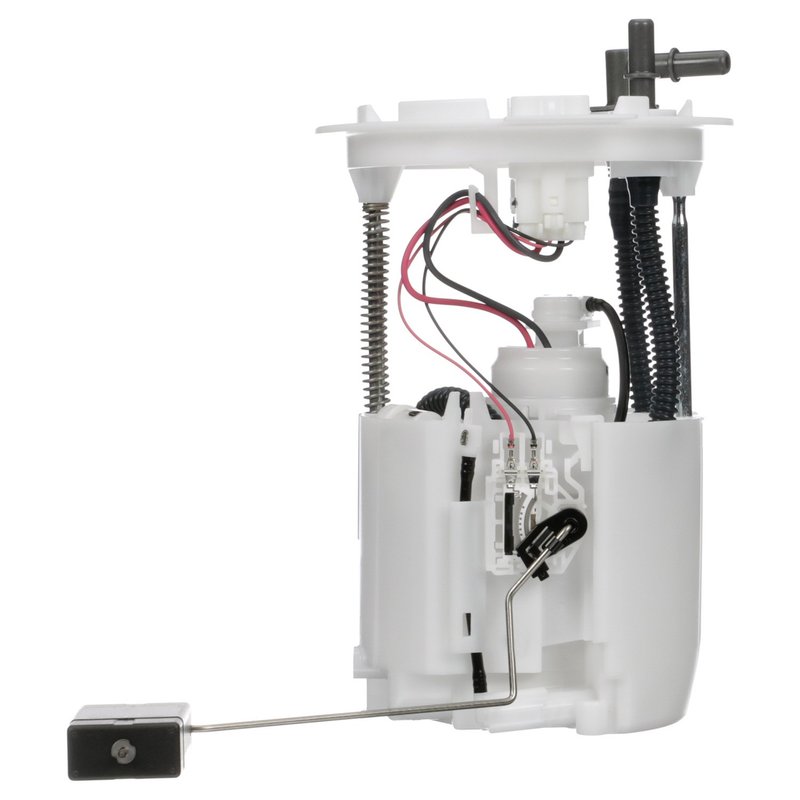

Delphi FG2298 Fuel Pump Module Assembly

Fuel Pump Module Overview

This Delphi fuel pump module assembly is a standard replacement for gasoline applications that require an in-tank electric pump with an integrated regulator and fuel level sender. It is built for select Ford Fusion and Lincoln MKZ applications and uses a quick-connect outlet for service-friendly installation.

Key Features

• In-tank electric fuel pump module for gasoline systems
• Integrated fuel pressure regulator and fuel level sender assembly
• Quick-connect outlet with blade-style, 4-terminal electrical connection
• Internal strainer included for fuel pickup protection
• Standard replacement design for select Ford and Lincoln applications

Detailed Description

Delphi FG2298 is a fuel pump module assembly engineered for vehicles that use a 12-volt in-tank electric pump with a regulated fuel delivery system. It is specified with a maximum pressure rating of 79 psi, a system pressure of 58 psi, and an average flow rating of 24, making it a direct service part for fuel delivery restoration. The module includes a float arm and fuel level sender assembly, and it uses a quick-connect outlet with two outlets for the fuel line connection. Delphi FG2298 reflects the brand’s OE experience and long-standing supply background, which is carried into its aftermarket fuel system coverage.

This part cross-references Monroe Shocks & Struts (e.g., DFG2298, DG9Z 9H307-AC) for the same application.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent fuel pressure
• Fuel gauge readings affected by sender wear
• Poor drivability linked to a failing in-tank pump module
• Fuel system service needs on select Ford Fusion and Lincoln MKZ models

Installation Notes

Compatible With 2016-2020 Ford Fusion, N/A, and 2017-2020 Lincoln MKZ, N/A. The 2016 Ford Fusion application is limited to vehicles built from 09/24/2015 and excludes Clean Fuel Fleet Vehicle models. Clean the fuel tank before installation to reduce the risk of contaminating the replacement pump. A fuel tank cleaning kit is recommended by the manufacturer for this service.

Quality Assurance

Delphi draws on 100 years of OE experience and supplier knowledge used by major automakers. FG2298 is a standard replacement fuel pump module assembly built around OE-oriented fuel system requirements.
