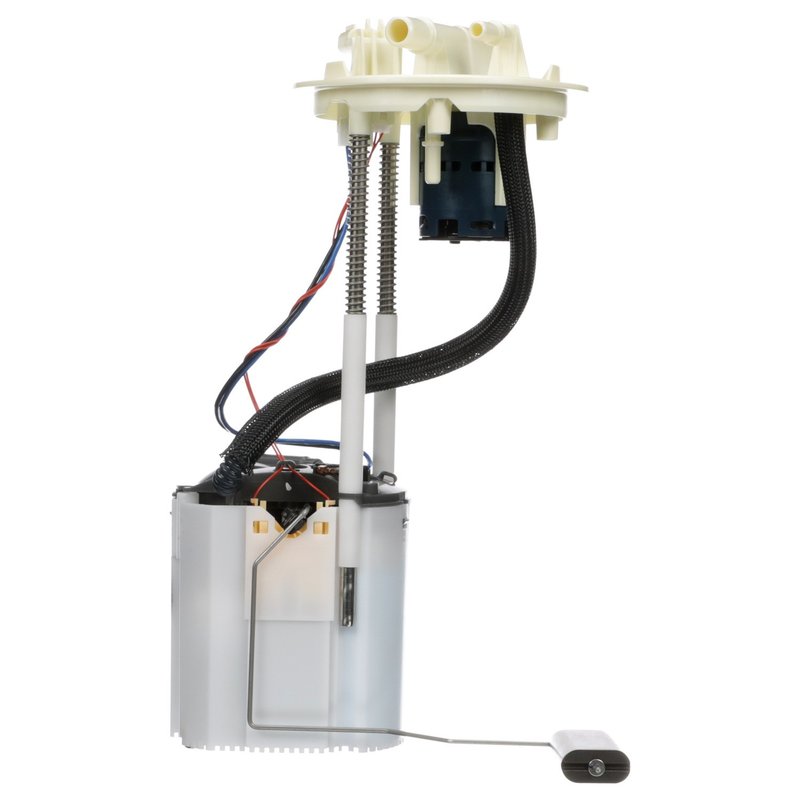

Delphi FG2301 Fuel Pump Module Assembly
| Brand | Delphi FG2301 |
|---|---|
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 75.0 |
| Terminal Type | Blade |
| Gasket Or Seal Included | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 20 |
| Average Flow Rating | 44 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, instruction sheet |
| System Pressure | 58 psi |
| Vapor Pressure Sensor | No |
| Fits | Ford · 4 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete assembly. Includes pump, regulator, strainer, and fuel level sender.
Cross-references EFG2301, HL3Z 9H307-A and HL3Z 9H307-E for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Ford F-150
Delphi FG2301 is a standard replacement fuel pump module assembly for the 2017-2020 Ford F-150 without the Extended Range Fuel Tank. It combines the pump, fuel level sender, and pressure regulation in one in-tank unit for gas applications, with OE-based engineering drawn from Delphi’s long history supplying automakers.
Key Features
- In-tank electric fuel pump module assembly for gasoline applications
- Includes fuel level sender assembly and float arm
- Regulator included for system control
- Quick-connect outlet design with 3 outlet ports
- 12V operation with blade terminals and 4-terminal connection
- Maximum pressure rating of 75 psi and system pressure of 58 psi
- Average flow rating of 44 and average current draw of 20
- Internal strainer included; fuel pump strainer inlet type
Detailed Description
Built for direct replacement service, Delphi FG2301 supports fuel delivery and fuel level reporting in the Ford F-150 fuel system. The module is designed for in-tank mounting and uses a quick-connect outlet with a 0.375-inch outside diameter outlet, making it a practical choice for 2017-2020 Ford F-150 fuel pump replacement work. Delphi FG2301 reflects OE heritage and application coverage developed from decades of original equipment experience.
This part cross-references Ford OE numbers HL3Z 9H307-A and HL3Z 9H307-E for the same application.
What It Helps Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge errors from a worn sender assembly
- Loss of power under load from reduced pump output
- Fuel system performance issues in the tank-mounted module
Installation Notes and Tips
Compatible With 2017-2020 Ford F-150, without Extended Range Fuel Tank. Before installing a replacement pump, clean the fuel tank to reduce the risk of contamination-related failure. Delphi recommends using fuel tank cleaning kit FC01 for this application. Verify connector style, outlet routing, and tank configuration before installation.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-based engineering and application knowledge developed through long-term supplier experience with major automakers. Part number FG2301 is made as a standard replacement component for the listed Ford F-150 applications.
