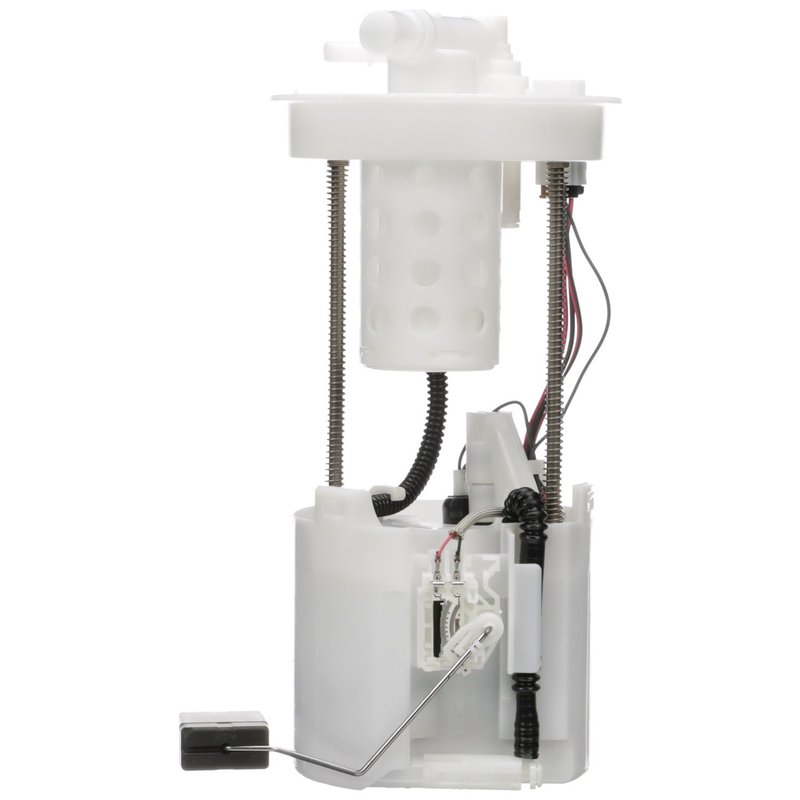

Delphi FG2304 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda CR-Z

The Delphi FG2304 fuel pump module assembly is designed specifically for the Honda CR-Z, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and system pressure for your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and regulator for clean fuel flow
• Quick connect outlet with 0.375 inch outside diameter
• System pressure rated at 43 psi with a maximum pressure of 50 psi
• Four male blade terminals for secure electrical connections
• Average flow rating of 18 liters per hour and average current draw of 10 amps

Technical Details and Features

The Delphi FG2304 fuel pump module assembly is engineered for the Honda CR-Z to maintain consistent fuel pressure and flow. Featuring an internal strainer inlet and quick connect outlet, this module supports efficient fuel delivery while protecting the fuel system from contaminants. The included fuel level sender assembly provides accurate fuel gauge readings, helping you monitor fuel levels precisely. The pump operates at 12 volts with a system pressure of 43 psi and a maximum pressure of 50 psi, ensuring compatibility with the vehicle's fuel system requirements. Four male blade terminals provide reliable electrical connections, and the module is designed for in-tank installation to optimize space and performance.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Honda CR-Z models
• Resolves inconsistent fuel pressure or fuel delivery issues
• Fixes inaccurate fuel level readings caused by a damaged sender assembly
• Addresses fuel contamination problems with the internal strainer
• Eliminates electrical connection failures with secure blade terminals

Installation Notes and Tips

Installation of the Delphi FG2304 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the fuel system is depressurized before beginning work. Use appropriate tools to disconnect the quick connect outlets and blade terminals carefully. Verify all electrical connections are secure and free of corrosion. Although the gasket or seal is not included, inspect and replace any seals or O-rings as needed to prevent leaks. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Honda CR-Z. It undergoes rigorous testing to ensure reliable performance and durability. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or Delphi’s official resources for exact warranty terms.
