Delphi

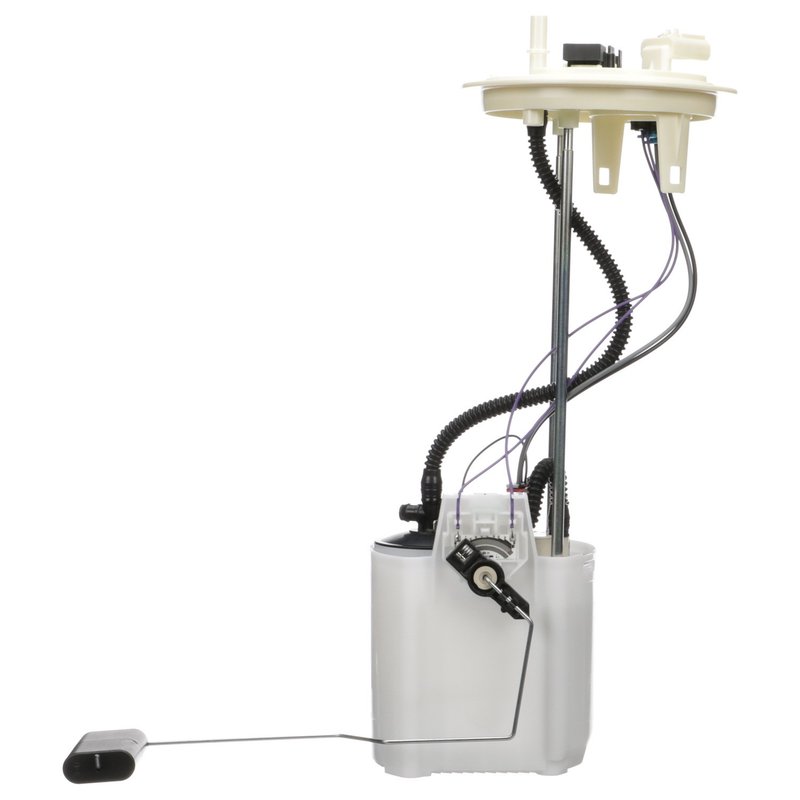

DiscontinuedDelphi FG2315 Fuel Pump Module Assembly
| Brand | Delphi FG2315 |
|---|---|
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 10 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, instruction sheet |
| Vapor Pressure Sensor | Yes |
| Product line | Discontinued |
| Fits | Ford · 33 vehicles |
OE heritage. Built from Delphi’s long-standing original equipment experience and supplier knowledge.
Complete module design. Includes the pump, sender, regulator, and vapor pressure sensor in one assembly.
Service-ready connections. Uses a quick-connect outlet, blade terminals, and an internal strainer.
Cross-references EFG2315, HC3Z 9H307-J and HC3Z 9H307-Q for the same application. See all 6.
$206.58Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$206.58
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options
Fuel Pump Module Overview
The Delphi FG2315 fuel pump module assembly is a standard replacement for select Ford Super Duty applications with flex fuel systems. It combines the pump, sender, regulator, and vapor pressure sensor in one in-tank module for a direct service replacement.
Built with Delphi OE experience and supplier knowledge, this module is engineered for consistent fuel delivery and accurate fuel level reporting. The FG2315 uses a 12-volt electric pump, blade terminals, a quick-connect outlet, and an internal strainer for service-ready installation.
Key Features
- Standard replacement fuel pump module assembly for in-tank service
- Includes fuel level sender assembly, regulator, strainer, and vapor pressure sensor
- 12.0-volt electric pump with 4 male blade terminals
- Quick-connect outlet and internal strainer design
- Supports flex fuel applications
- Delphi part number FG2315
Detailed Description
Delphi FG2315 is a fuel pump module assembly built for select Ford F-250 Super Duty and Ford F-350 Super Duty trucks. It is designed as a standard replacement unit for in-tank fuel system service, with the fuel level sender assembly and regulator integrated into the module. The included vapor pressure sensor and strainer help support proper fuel system operation, while the quick-connect outlet simplifies connection at the tank. Delphi FG2315 reflects the brand’s OE background and long-standing experience supplying components to major automakers. For buyers searching for a Ford F-250 Super Duty fuel pump module assembly or Ford F-350 Super Duty fuel pump module assembly, FG2315 is the matching part number to verify.
This part cross-references Monroe Shocks & Struts (e.g., EFG2315, PFS-1144) for the same application.
What It Is Used For
- Replacing a failed in-tank fuel pump module
- Restoring fuel delivery after pump wear or electrical failure
- Addressing inaccurate fuel level readings from a worn sender
- Correcting fuel pressure issues related to a weak regulator
- Servicing flex fuel fuel system components in the tank
Installation Notes
Fits 2017-2019 Ford F-250 Super Duty and Fits 2017-2019 Ford F-350 Super Duty. The fitment notes specify that fuel tank contamination is a leading cause of premature pump failure, so the tank should be cleaned before installation. The notes also reference use with a 34-gallon tank and fuel tank cleaning kit FC01. Verify the part number FG2315, connector style, and tank configuration before installation.
Quality Assurance
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from original equipment knowledge. FG2315 is a standard replacement fuel pump module assembly, and the Delphi part number FG2315 should be confirmed against the vehicle’s fuel system requirements before service.
This part fits 33 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Submodel | Body Type | Notes |
|---|---|---|---|---|---|
| 2019 | Ford | F-250 Super Duty | — | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | Platinum | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Ford | F-350 Super Duty | King Ranch | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-250 Super Duty | — | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | Platinum | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Ford | F-350 Super Duty | King Ranch | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-250 Super Duty | — | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XLT | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XLT | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XLT | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XL | Standard Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XL | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | XL | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | Platinum | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | Lariat | Extended Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | Lariat | Crew Cab Pickup | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Ford | F-350 Super Duty | King Ranch | — | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01.; Discontinued |
| No rows match your filter. | |||||
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
EFG2315HC3Z 9H307-JHC3Z 9H307-QHC3Z 9H307-UPFS-1144PFS-1231
