Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

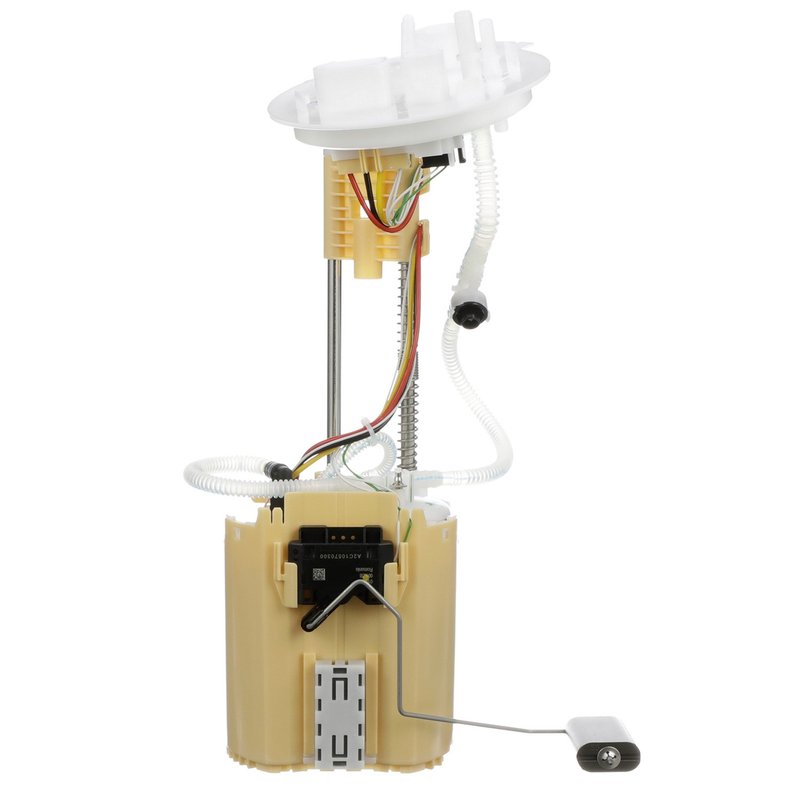

Delphi FG2324 Fuel Pump Module Assembly
| Brand | Delphi FG2324 |
|---|---|
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | No |
| Terminal Quantity | 8 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 990.0 |
| Resistance Ohms Full | 51.0 |
| Internal Or External Strainer | External |
| Average Current Draw | 10 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, instruction sheet |
| Vapor Pressure Sensor | No |
| Fits | Land Rover · 23 vehicles |
OE heritage built in. Backed by Delphi’s century of original-equipment experience.
In-tank fuel module. Electric pump assembly with integrated fuel level sender.
Ready to install. Includes the pump module, float arm, and instruction sheet.
Cross-references EFG2324 and LR1 01793 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2324 Fuel Pump Module Assembly
Delphi FG2324 is an in-tank fuel pump module assembly for gasoline applications, built for 12-volt systems and supplied with a fuel level sender assembly and float arm. It is a standard replacement for select Land Rover Range Rover and Range Rover Sport models, with OE-focused engineering drawn from Delphi’s long history supplying automakers.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- 12.0-volt operation with an average current draw of 10 amps
- Includes fuel level sender assembly and float arm
- Regulator included for integrated fuel delivery control
- Strainer included; external strainer design
- Quick-connect outlet with 2 outlets and 0.375 in. outside diameter
- Blade terminals, male terminal gender, 8 terminals total
- Standard replacement grade for select Land Rover applications
Detailed Description
The Delphi FG2324 fuel pump module assembly is built for direct fuel delivery service in select Land Rover Range Rover and Range Rover Sport vehicles. It is an in-tank, electric module for gasoline systems and includes the fuel level sender assembly, helping restore both fuel supply and tank level reporting in one service part. Delphi’s OE heritage and broad aftermarket coverage are reflected in the module’s construction and application coverage.
This part cross-references Monroe Shocks & Struts (e.g., EFG2324, LR1 01793) for the same application. Use Delphi FG2324 when servicing a 2022 Land Rover Range Rover, 2022 Land Rover Range Rover Sport, 2017-2021 Land Rover Range Rover, or 2017-2021 Land Rover Range Rover Sport. Fits 2017-2021 Land Rover Range Rover, N/A, and fits 2017-2021 Land Rover Range Rover Sport, N/A, as well as 2022 Land Rover Range Rover and 2022 Land Rover Range Rover Sport.
Common Replacement Reasons
- Hard starting or extended crank caused by weak fuel delivery
- Fuel pressure loss from a worn in-tank pump module
- Inaccurate fuel level readings from a failing sender assembly
- Intermittent engine hesitation under load
- Fuel delivery noise or inconsistent pump operation
Installation Notes and Tips
Before installing on 2017-2021 Land Rover Range Rover and Range Rover Sport models, clean the fuel tank to help prevent future seal problems. Verify electrical connector style, outlet configuration, and tank fitment before installation. This module does not include a gasket or seal, and it does not include a lock ring.
Quality Assurance
Delphi builds this fuel pump module using OE experience and application knowledge developed through service to major automakers. The FG2324 is engineered as a standard replacement part for the listed Land Rover applications and is backed by Delphi’s OE-focused manufacturing approach.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Land Rover | Range Rover | 5.0L | V8 | — | N/A | — |
| 2022 | Land Rover | Range Rover Sport | 5.0L | V8 | — | N/A | — |
| 2021 | Land Rover | Range Rover | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2021 | Land Rover | Range Rover | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2021 | Land Rover | Range Rover Sport | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2021 | Land Rover | Range Rover Sport | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Land Rover | Range Rover | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Land Rover | Range Rover | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Land Rover | Range Rover Sport | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2020 | Land Rover | Range Rover Sport | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Land Rover | Range Rover | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Land Rover | Range Rover | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Land Rover | Range Rover Sport | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Land Rover | Range Rover Sport | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Land Rover | Range Rover Sport | — | — | ELECTRIC/GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Land Rover | Range Rover | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Land Rover | Range Rover | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Land Rover | Range Rover Sport | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Land Rover | Range Rover Sport | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Land Rover | Range Rover | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Land Rover | Range Rover | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Land Rover | Range Rover Sport | — | — | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Land Rover | Range Rover Sport | — | — | GAS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
