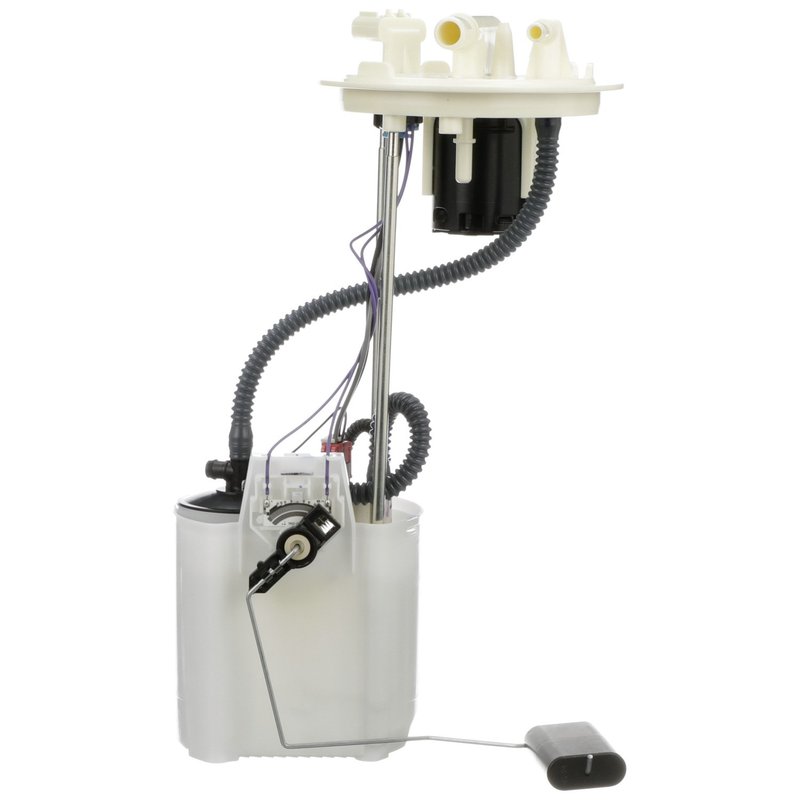

Delphi FG2326 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150

The Delphi FG2326 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford F-150 models requiring part number FG2326
• 12.0 volts operating voltage with a maximum pressure of 75 psi
• Includes internal strainer and regulator for clean, regulated fuel flow
• Quick connect outlet with 0.375 inch outside diameter and three outlets
• Blade-type male terminals with four terminal connections
• Average flow rating of 49 liters per hour and system pressure of 58 psi
• Standard replacement grade for reliable, direct fit installation

Technical Details and Features

The Delphi FG2326 fuel pump module assembly is engineered as an in-tank electric pump designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel flow and easy installation. The module includes a fuel level sender assembly with resistance values ranging from 180 ohms when empty to 10 ohms when full, providing accurate fuel gauge readings. The pump operates at 12 volts with an average current draw of 10 amps, delivering a flow rating of 49 liters per hour to maintain consistent engine performance. The regulator is included to maintain system pressure at 58 psi, with a maximum pressure rating of 75 psi. The assembly uses blade-type male terminals with four connections to ensure secure electrical contact.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Ford F-150 trucks requiring part number FG2326. It is designed to address common fuel delivery and fuel level sensing issues, including:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure irregularities affecting engine performance
• Contaminated fuel flow caused by clogged or damaged strainers
• Electrical connection failures impacting pump operation

Installation Notes and Tips

When installing the Delphi FG2326 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. This module is designed as a direct replacement for the Ford F-150 fuel pump module and includes a float arm for fuel level measurement. Note that the assembly does not include a gasket or lock ring, so reuse or replacement of these components may be necessary depending on your vehicle’s configuration. Verify terminal connections and secure the quick connect outlets properly to avoid fuel leaks. Follow the included instruction sheet carefully for proper installation procedures.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for durability and performance. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. For warranty information, consult the product documentation or contact the parts distributor.
