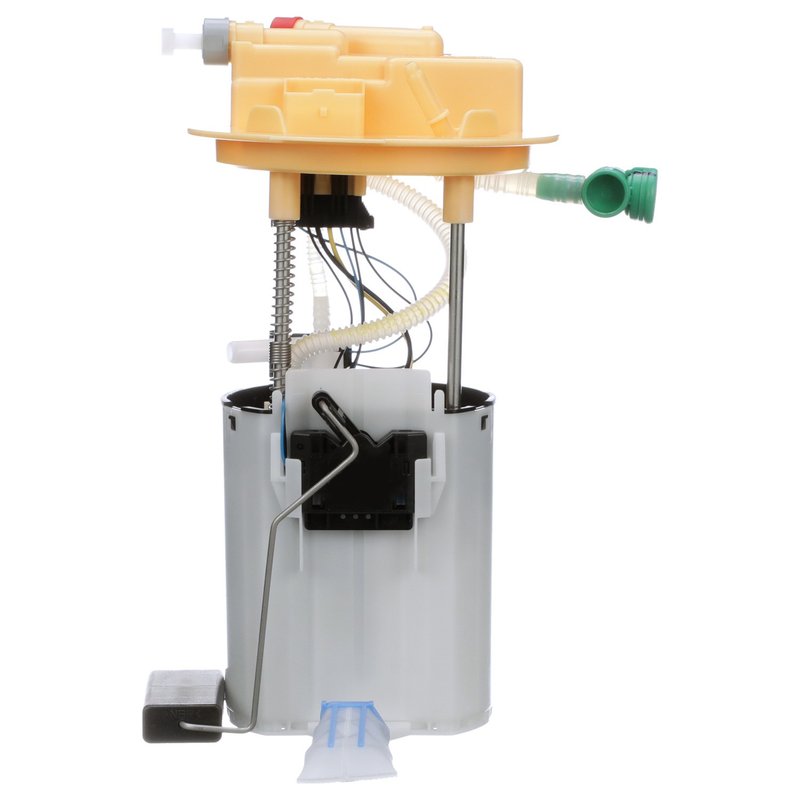

Delphi FG2337 Fuel Pump Module Assembly

Delphi FG2337 Fuel Pump Module Assembly

Delphi FG2337 is an in-tank fuel pump module assembly for gas applications, built with OE-based engineering and a standard replacement design. It includes the fuel level sender assembly, regulator, and strainer to support consistent fuel delivery in select Volvo S60 and Volvo V60 models.

Key Features

• In-tank electric fuel pump module assembly for 12-volt gas systems
• Includes fuel level sender assembly and regulator
• Strainer included; quick-connect outlet design
• Blade terminals with 6-terminal male connection
• Standard replacement construction for service repair
• Outlet outside diameter: 0.375 in.
• Average current draw: 10 amps

Detailed Description

Delphi FG2337 is engineered for direct fuel system service on 2014-2016 Volvo S60, 2015-2016 Volvo V60, and 2015 Volvo S60 applications. This fuel pump module assembly is built for in-tank installation and uses an electric pump with an internal strainer, quick-connect outlet, and integrated fuel level sender for accurate fuel delivery and tank level reporting. Delphi draws on OE heritage and supplier experience to produce aftermarket parts that reflect original equipment knowledge and fitment expectations. This part cross-references Bosch 69954 for the same application. Delphi FG2337 is a practical replacement choice when servicing a Volvo S60 fuel pump module assembly or a Volvo V60 in-tank fuel pump module.

What This Part Helps Address

• Hard starting caused by weak or inconsistent fuel pressure
• Engine stalling from fuel delivery interruption
• Fuel gauge inaccuracies from a worn sender assembly
• Fuel pump noise or reduced pump output
• Driveability issues related to a failing in-tank module

Installation Notes and Tips

• Fits 2014-2016 Volvo S60, N/A
• Fits 2015-2016 Volvo V60, N/A
• Fits 2015 Volvo S60, N/A
• For listed Volvo S60 and Volvo V60 applications, clean the fuel tank before installing the replacement module.
• Use of fuel tank cleaning kit FC01 is recommended for these applications.
• Verify chassis breakpoints for the 2015 Volvo S60: from chassis #390130 for Ghent Plant built vehicles and from chassis #391007 for Torslanda Plant built vehicles.
• Confirm electrical connector style, outlet connection, and tank configuration before installation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE experience and application knowledge developed through long-term supplier relationships with major automakers. FG2337 is a standard replacement part intended to meet the service needs of the listed Volvo S60 and Volvo V60 applications.
