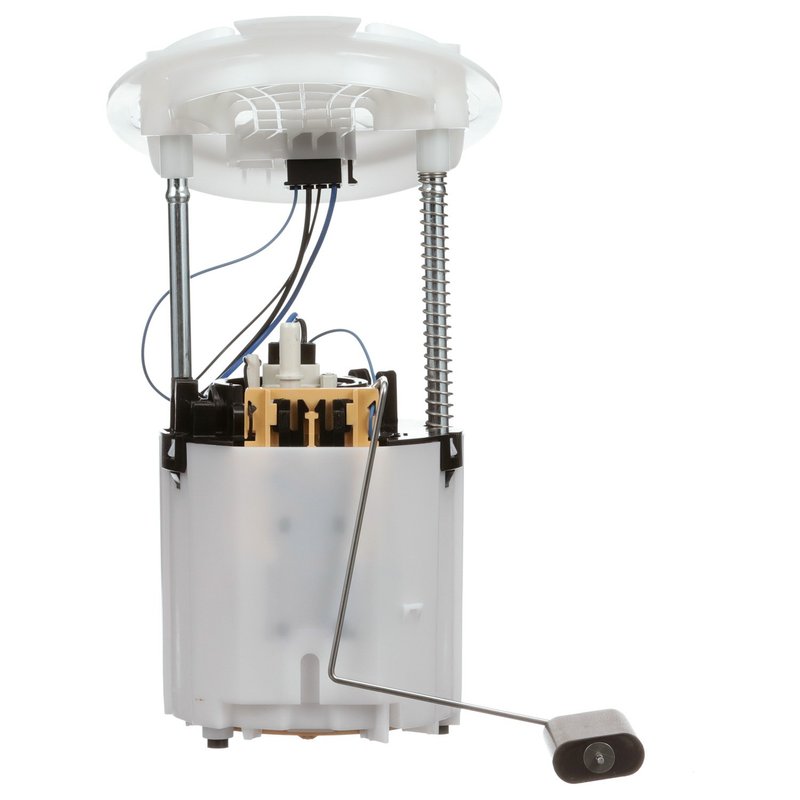

Delphi FG2479 Fuel Pump Module Assembly - Left
| Brand | Delphi FG2479 |
|---|---|
| Position | Left |
| Average Current Draw | 9 |
| Average Flow Rating | 24 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 990.0 |
| Resistance Ohms Full | 51.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Chrysler and Dodge · 23 vehicles |
Standard replacement. OE heritage built into a fuel pump module assembly.
Electric fuel pump. Delivers steady 12-volt fuel delivery with a quick-connect outlet.
Complete module. Includes a seal, strainer, and fuel level sender assembly.
Cross-references Airtex Fuel Pumps E7192M, Airtex Fuel Pumps E7241M and Carter P76270M for the same application. See all 18.
Delphi FG2479 Fuel Pump Module Assembly
The Delphi FG2479 fuel pump module assembly is a standard replacement for select Chrysler and Dodge rear-seat fuel tank applications. Built for in-tank electric fuel delivery, it includes the fuel level sender assembly, strainer, and seal for service on the left side of the vehicle.
- In-tank electric fuel pump module assembly for gasoline applications
- 12.0-volt design with a maximum pressure rating of 80.0
- System pressure: 58 psi
- Average flow rating: 24
- Fuel level sender assembly included
- Strainer and gasket/seal included
- Quick-connect outlet with one outlet port
- Blade terminals, 5-terminal male connection
- Standard replacement part for left-side installation
Fitment and Application
Compatible with select left-side fuel tank applications for Chrysler 300, Dodge Challenger, and Dodge Charger. Fits 2017-2019 Chrysler 300, left; Fits 2017-2019 Dodge Challenger, left; Fits 2017-2019 Dodge Charger, left; Fits 2020-2022 Dodge Challenger, left; Fits 2020-2021 Dodge Charger, left.
This part cross-references Spectra Premium SP7048M for the same application.
Detailed Product Overview
Delphi draws on OE heritage and decades of fuel system experience to produce aftermarket components that match the needs of modern vehicles. FG2479 is engineered as an in-tank fuel pump module assembly for gas-powered vehicles, with an integrated sender to support accurate fuel level reporting and a quick-connect outlet for service-friendly installation. The module uses an internal strainer, a 12-volt electric pump, and a male blade-terminal electrical connection.
For Chrysler 300, Dodge Challenger, and Dodge Charger models in the listed years, this assembly provides the fuel delivery and level-sensing functions required by the original system layout. The included seal and strainer support a complete replacement of the module assembly at the tank opening.
Common Replacement Reasons
- Hard starting or no-start conditions caused by weak fuel delivery
- Fuel pressure loss affecting engine performance
- Inaccurate fuel gauge readings from a worn sender
- Fuel pump noise or intermittent pump operation
- Service replacement after tank access and module removal
Installation Notes
Install FG2479 in the left-side in-tank location only for the listed vehicles. Clean the fuel tank before installation, especially on 2017-2019 Chrysler 300, Dodge Challenger, and Dodge Charger applications, to help prevent future seal problems. Verify electrical connector style, outlet connection, and fuel system pressure requirements before installation.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed through long-term supplier experience with major automakers. The FG2479 is a standard replacement part designed to meet the requirements of the original fuel delivery system.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2022 | Dodge | Challenger | — | 6.4L | V8 | — | Left | — |
| 2021 | Dodge | Challenger | — | 6.4L | V8 | — | Left | — |
| 2021 | Dodge | Charger | — | 6.4L | V8 | — | Left | — |
| 2020 | Dodge | Challenger | — | 6.4L | V8 | — | Left | — |
| 2020 | Dodge | Charger | — | 6.4L | V8 | — | Left | — |
| 2019 | Chrysler | 300 | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Chrysler | 300 | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Dodge | Challenger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Dodge | Charger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Dodge | Charger | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Chrysler | 300 | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Chrysler | 300 | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Dodge | Challenger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Dodge | Charger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Dodge | Charger | Pursuit | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Dodge | Charger | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Chrysler | 300 | — | — | — | GAS | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Chrysler | 300 | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Dodge | Challenger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Dodge | Challenger | SXT | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Dodge | Charger | — | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Dodge | Charger | Pursuit | — | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Dodge | Charger | — | — | — | FLEX | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
