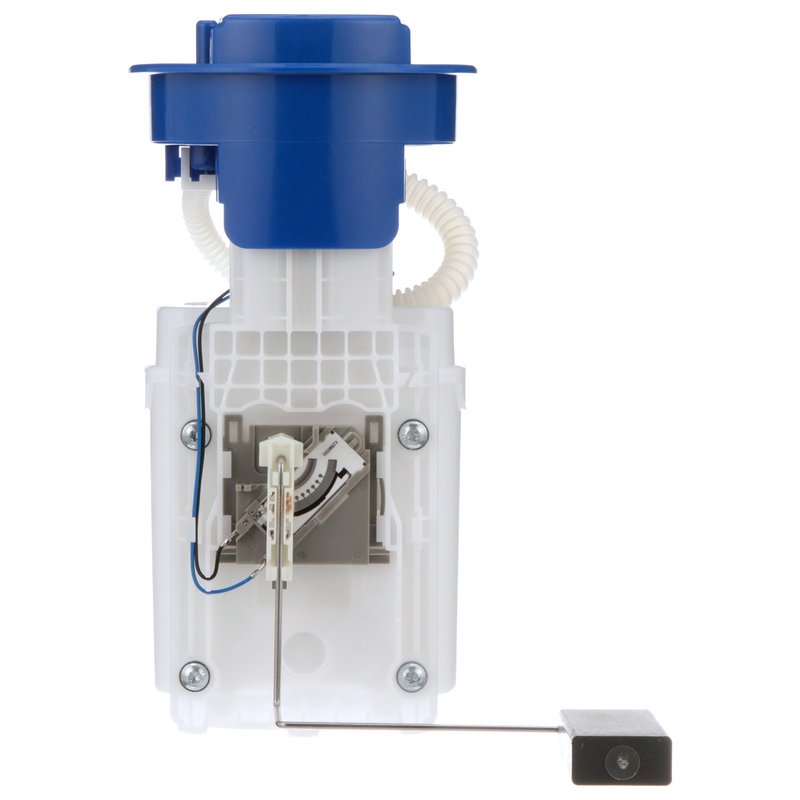

Delphi FG2487 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Audi TT

The Delphi FG2487 fuel pump module assembly is designed specifically for Audi TT models requiring a reliable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and regulator for clean, regulated fuel flow
• Quick connect outlet with 0.313 inch outside diameter and dual outlet ports
• Blade-type male terminals with four connections for secure wiring
• Designed for in-tank installation with average flow rating of 35 liters per hour
• System pressure rated at 58 psi with maximum pressure up to 80 psi
• Standard replacement grade with resistance values of 295 ohms empty and 46 ohms full

Technical Details and Features

The Delphi FG2487 fuel pump module assembly is an electric pump designed for in-tank installation in Audi TT vehicles. It operates on a 12-volt electrical system and is compatible with gasoline fuel. The module includes an internal strainer to prevent debris from entering the fuel system and a regulator to maintain consistent fuel pressure up to 80 psi. The fuel pump features a quick connect outlet with a 0.313 inch outside diameter and two outlet ports to ensure efficient fuel delivery. The four blade-type male terminals provide secure electrical connections, supporting an average current draw of 10 amps. Additionally, the fuel level sender assembly is integrated, allowing accurate fuel level readings. This module is a standard replacement part, engineered to meet OEM specifications for reliable performance.

Common Applications and Problem Resolution

• Restores proper fuel pressure and flow in Audi TT fuel systems
• Replaces faulty or failing in-tank fuel pump modules causing engine hesitation or stalling
• Resolves inaccurate fuel level readings due to defective sender assemblies
• Eliminates fuel delivery interruptions caused by clogged strainers or regulators
• Addresses electrical connection issues with blade-type terminals for stable operation

Installation Notes and Tips

Installation of the Delphi FG2487 fuel pump module assembly requires removal of the fuel tank from the Audi TT. Ensure the fuel system is depressurized before beginning work. The module features quick connect outlets and blade terminals for straightforward connection, but verify terminal orientation and secure locking to prevent leaks or electrical faults. Since the assembly does not include a gasket or lock ring, reuse the original components or source replacements as needed. Follow all safety precautions when handling fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG2487 is a standard replacement grade part, tested for consistent flow rates and electrical resistance. While specific warranty terms may vary, Delphi products typically include coverage against manufacturing defects to ensure reliability in service.
