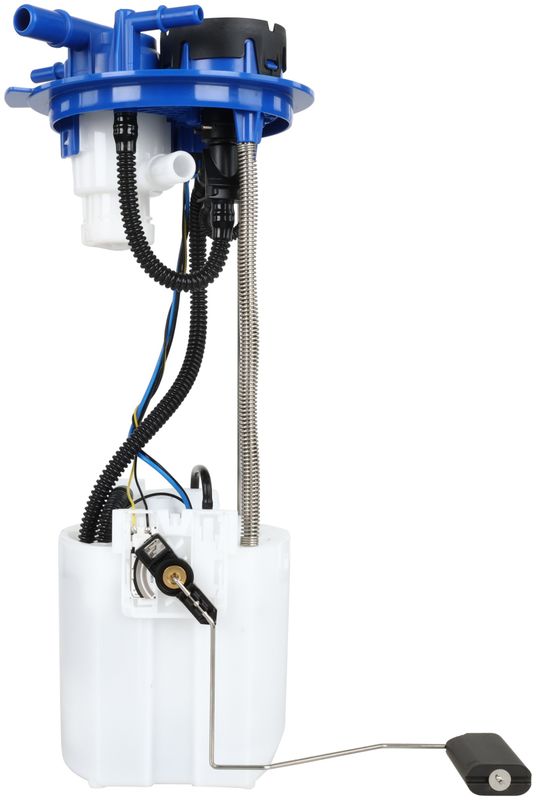

Delphi FG2677 Fuel Pump Module Assembly
| Brand | Delphi FG2677 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 70 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 994 |
| Resistance Ohms Full | 51 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 55 |
| Fits | Ram · 6 vehicles |
Specific-fit design. Built for direct replacement service in gas fuel systems.
Complete module assembly. Includes the sending unit, regulator, seal, strainer, and fuel filter.
OE-focused engineering. Delphi brings decades of fuel delivery manufacturing experience.
Cross-references Mopar 68409160AF, Spectra Premium SP7251M and 6840 9160AB for the same application. See all 8.
Fuel Pump Module Assembly Overview
Delphi FG2677 is a specific-fit fuel pump module assembly for Ram 1500 applications. It combines the pump, sending unit, regulator, seal, strainer, and fuel filter in one in-tank assembly for direct replacement service.
- Specific-fit fuel pump module assembly for gas applications
- In-tank electric turbine pump design with 12-volt operation
- Includes fuel sending unit, regulator, seal, strainer, and fuel filter
- Quick-connect outlet and female oval connector for streamlined service
- Premium-grade construction with plastic housing and nitrile rubber seal
Detailed Product Information
Delphi FG2677 is built as a fuel pump module assembly for the Ram 1500 and is engineered for vehicles that use an in-tank electric fuel delivery system. The module uses a turbine-style pump with a 55 to 70 psi operating range and an average flow rating of 42, helping maintain consistent fuel delivery within the system requirements. Delphi FG2677 also includes the fuel sending unit and regulator, which makes it a complete service replacement for the fuel tank module.
Delphi has supplied fuel delivery components to global vehicle manufacturers for decades and brings OE-focused engineering to this fuel pump module assembly. This part cross-references Mopar (e.g., 68409160AF) and Spectra Premium (e.g., SP7251M) for the same application. Delphi FG2677 is a direct-fit option for Ram 1500 fuel system repair work where the original module has failed or fuel level readings have become unreliable.
Common Repair Uses
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from insufficient fuel pressure
- Fuel gauge errors from a worn sending unit
- Fuel pump noise or loss of pump output
- Fuel leaks at the tank module seal area
Installation Notes
Fits 2019-2024 Ram 1500. Confirm connector style, outlet type, and fuel system specifications before installation. This module uses a quick-connect outlet, a female connector, and a blade terminal layout. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included.
Quality Assurance
Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and OE-proprietary fuel technology development. FG2677 reflects that OE-focused approach for fuel delivery service on the Ram 1500.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2024 | Ram | 1500 | 5.7L | V8 | — |
| 2023 | Ram | 1500 | 5.7L | V8 | — |
| 2022 | Ram | 1500 | 5.7L | V8 | — |
| 2021 | Ram | 1500 | 5.7L | V8 | — |
| 2020 | Ram | 1500 | 5.7L | V8 | — |
| 2019 | Ram | 1500 | 5.7L | V8 | — |
| No rows match your filter. | |||||
