Delphi FG2682 Fuel Pump Module Assembly
| Brand | Delphi FG2682 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 100 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 50 |
| Resistance Ohms Full | 289 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 58 |
| Fits | Volkswagen · 8 vehicles |
OE supplier pedigree. Delphi brings decades of fuel system expertise to this module assembly.
Complete in-tank module. Includes the pump, float arm, seal, and strainer for a cleaner install.
Premium fuel delivery. Turbine-style electric pump delivers 58-100 psi for gas applications.
Cross-references 5QM 919 051 and 5QM 919 051 H for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.

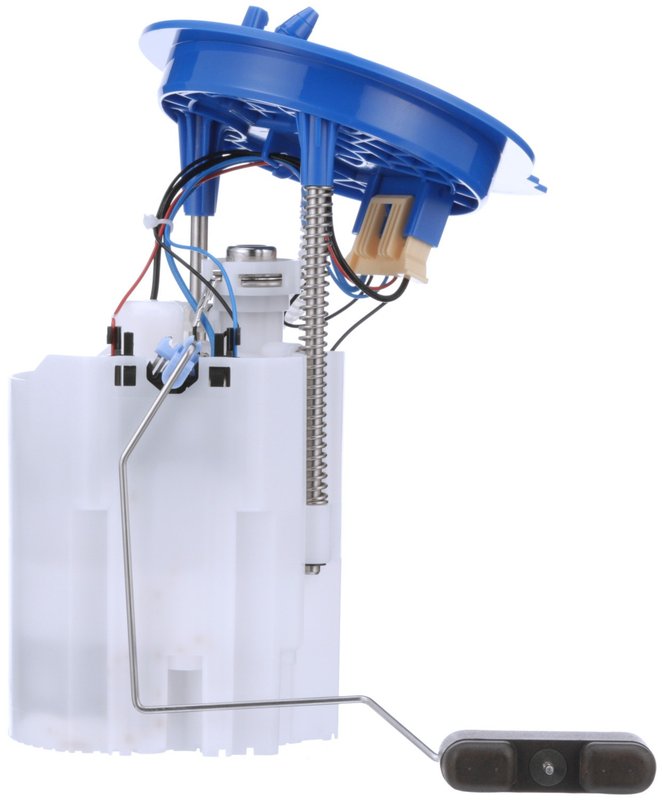

Delphi FG2682 Fuel Pump Module Assembly
Delphi FG2682 is a premium in-tank fuel pump module assembly for select Volkswagen applications. It includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm for a complete fuel delivery service on compatible Volkswagen Jetta and Volkswagen Taos models.
Key Features
- In-tank electric turbine pump design for gas applications
- Specific fit fuel pump module assembly for 12-volt systems
- Includes fuel sending unit, regulator, strainer, seal, and float arm
- Quick-connect outlet with one outlet and one oval connector
- Premium-grade construction with plastic housing and nitrile rubber seal
- Average flow rating of 37 and maximum pressure of 100
- Blade terminals, 5 terminal quantity, female connector, male terminals
Detailed Description
Built for direct replacement service, Delphi FG2682 supports fuel delivery and fuel level reporting in compatible Volkswagen fuel systems. This fuel pump module assembly is an in-tank, specific-fit unit with a turbine pump design, internal strainer, and integrated regulator to help maintain consistent fuel pressure. Delphi’s fuel system experience spans more than 80 years, and the brand supplies OE-level components to major global vehicle manufacturers. This part cross-references 5QM 919 051 and 5QM 919 051 H for the same application. Use Delphi FG2682 when servicing a Volkswagen Jetta or Volkswagen Taos fuel pump module assembly application that calls for this configuration.
Vehicle Fitment
- Fits 2019-2021 Volkswagen Jetta, N/A
- Fits 2022-2024 Volkswagen Taos, N/A
- Fits 2023-2024 Volkswagen Jetta, N/A
Common Issues This Part Addresses
- Hard starting caused by weak fuel delivery
- Fuel starvation from a failing in-tank pump module
- Inaccurate fuel level readings from a worn sending unit
- Low fuel pressure from a deteriorated pump or regulator
- Intermittent drivability concerns tied to inconsistent fuel supply
Installation Notes and Tips
Confirm the OE part number, connector style, outlet type, and tank configuration before installation. Replace the seal during service and inspect the tank opening, electrical connector, and fuel lines for wear or contamination. Because mounting hardware and lock ring are not included, reuse or source the required service parts as needed. Follow factory procedures for depressurizing the fuel system and verifying pressure after installation.
Quality Assurance
Delphi is a Tier 1 supplier with extensive OE fuel system experience and a long history of fuel pump manufacturing. FG2682 is built as a premium replacement fuel pump module assembly for specific Volkswagen applications, including Jetta and Taos models.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Volkswagen | Jetta | — | 1.5L | L4 | N/A | — |
| 2024 | Volkswagen | Taos | FWD | 1.5L | L4 | N/A | — |
| 2023 | Volkswagen | Jetta | — | 1.5L | L4 | N/A | — |
| 2023 | Volkswagen | Taos | FWD | 1.5L | L4 | N/A | — |
| 2022 | Volkswagen | Taos | FWD | 1.5L | L4 | N/A | — |
| 2021 | Volkswagen | Jetta | — | 1.4L | L4 | N/A | — |
| 2020 | Volkswagen | Jetta | — | 1.4L | L4 | N/A | — |
| 2019 | Volkswagen | Jetta | — | 1.4L | L4 | N/A | — |
