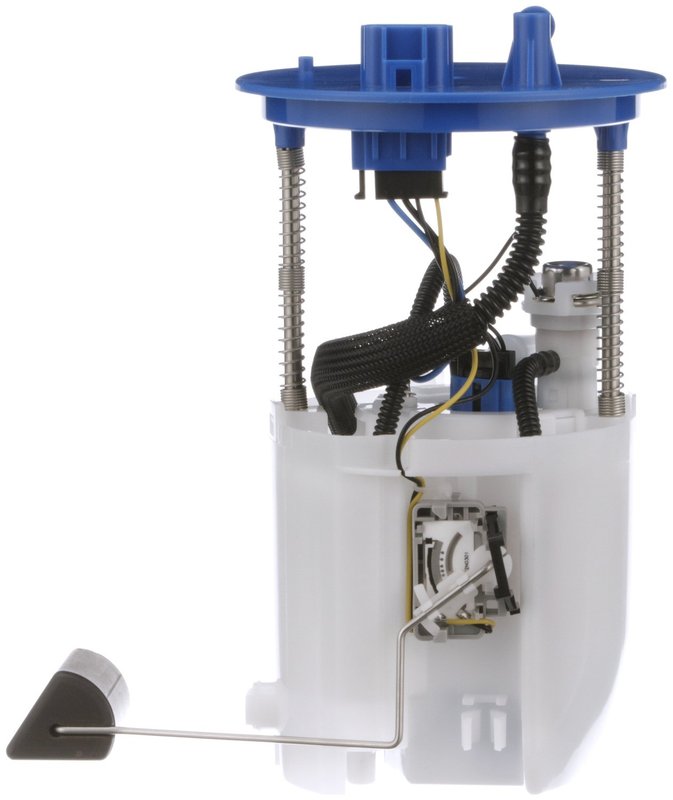

Delphi FG2687 Fuel Pump Module Assembly
| Brand | Delphi FG2687 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 100 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 200 |
| Resistance Ohms Full | 20 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 79 |
| Fits | Mazda · 6 vehicles |
OE-supplier pedigree. Delphi has supplied fuel systems to major automakers for decades.
In-tank module assembly. Includes pump, sender, regulator, strainer, filter, and seal.
Specific-fit design. Built for a direct, application-matched replacement.
Cross-references PYFL-13-35X and PYFL-13-35XA for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2687 Fuel Pump Module Assembly
Delphi FG2687 is a premium in-tank fuel pump module assembly for gas applications, built with an electric turbine pump, integrated fuel sending unit, regulator, strainer, and fuel filter. It is a specific-fit replacement for 2016-2021 Mazda CX-9 models and is engineered for 12-volt systems with a quick-connect outlet and oval female connector.
Key Features
- Fits 2016-2021 Mazda CX-9, N/A
- Fuel pump module assembly for in-tank gas applications
- Electric turbine pump design with 32 average flow rating
- Includes fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm
- 12-volt operation with 1 oval female connector and 4 male blade terminals
- Quick-connect outlet, 0.375 in. outlet outside diameter
- Premium grade construction with plastic housing
- Maximum pressure rating: 100; minimum pressure rating: 79
Detailed Description
Delphi FG2687 fuel pump module assembly is a direct-fit fuel delivery component for the Mazda CX-9, covering 2016-2021 model years. It combines the pump, sender, regulator, internal strainer, and fuel filter into one in-tank assembly to restore consistent fuel delivery and fuel level reporting. Delphi’s fuel system experience spans more than 80 years, and the brand supplies OE-level fuel management components for a wide range of global vehicle manufacturers. This part cross-references PYFL-13-35X and PYFL-13-35XA for the same application.
What It Helps Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine hesitation or stalling from low fuel pressure
- Inaccurate fuel gauge readings from a worn sending unit
- Fuel starvation from a restricted or aging in-tank pump module
- Fuel system noise or reduced output from a failing electric pump
Installation Notes and Tips
Confirm the vehicle is a 2016-2021 Mazda CX-9 before installation. This module is specific fit and uses an in-tank configuration with a quick-connect outlet, oval connector, and 4-terminal blade connection. The package includes the fuel pump module assembly with float arm, seal, and instruction sheet; mounting hardware and lock ring are not included. Verify connector shape, terminal count, and tank opening condition before assembly.
Quality Assurance
Delphi is a Tier 1 supplier with extensive OE fuel technology experience and a long history in fuel pump and fuel delivery manufacturing. FG2687 is built as a premium replacement fuel pump module assembly for dependable fuel system service on Mazda CX-9 applications.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2021 | Mazda | CX-9 | Touring | FWD | N/A | — |
| 2020 | Mazda | CX-9 | Touring | FWD | N/A | — |
| 2019 | Mazda | CX-9 | Touring | FWD | N/A | — |
| 2018 | Mazda | CX-9 | Touring | FWD | N/A | — |
| 2017 | Mazda | CX-9 | Touring | FWD | N/A | — |
| 2016 | Mazda | CX-9 | Touring | FWD | N/A | — |
