Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

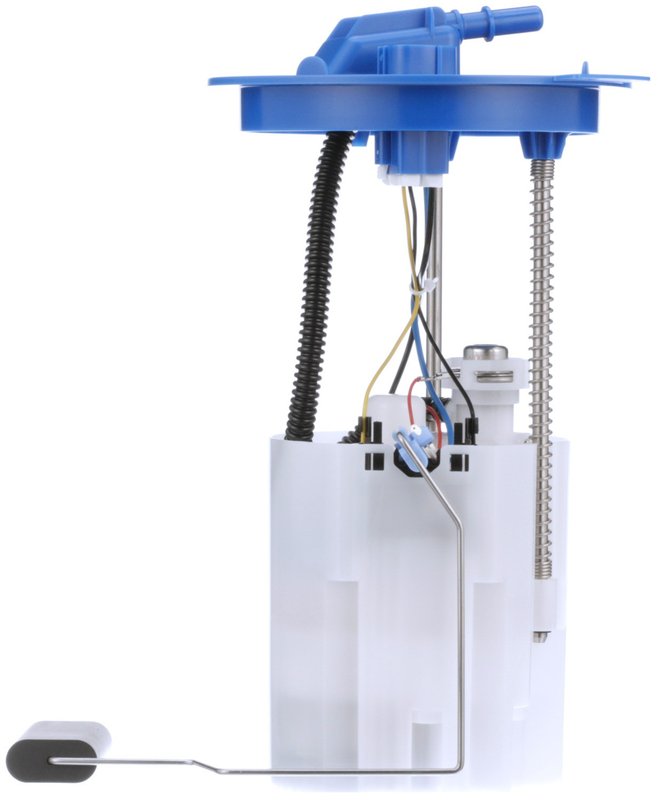

Delphi FG2699 Fuel Pump Module Assembly
| Brand | Delphi FG2699 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Diesel |
| Regulator Included | Yes |
| Maximum Pressure | 84 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180 |
| Resistance Ohms Full | 10 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 79 |
| Fits | Ford · 5 vehicles |
Specific-fit module. Directly replaces the fuel pump assembly with a clean, application-specific fit.
Diesel in-tank design. Built for 12-volt diesel systems with an in-tank turbine pump layout.
Includes key components. Comes with the float arm, seal, and strainer for a more complete install.
Cross-references GN1Z 9H307-E, GN1Z 9H307-J and PFS1157 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2699 Fuel Pump Module Assembly
The Delphi FG2699 fuel pump module assembly is a specific-fit, in-tank diesel fuel delivery unit for select Ford EcoSport applications. It includes the fuel sending unit, regulator, strainer, gasket/seal, and float arm to support accurate fuel level reporting and steady fuel delivery.
Key Features
- Specific-fit fuel pump module assembly for 2018-2022 Ford EcoSport
- In-tank electric turbine pump for diesel fuel systems
- 12-volt design with blade terminals and one female trapezoid connector
- Includes fuel sending unit, regulator, strainer, seal, and float arm
- Quick-connect outlet with 0.375 in. outside diameter
- Premium-grade construction with plastic housing and nitrile rubber seal
- Maximum pressure rating of 84 psi and average flow rating of 22
Detailed Description
Built for diesel fuel delivery service, the Delphi FG2699 is a fuel pump module assembly engineered for direct replacement use on 2018-2022 Ford EcoSport models. Delphi has long supplied fuel system components to global vehicle manufacturers, and this module reflects that OE-focused approach with a turbine-style electric pump, integrated regulator, and internal strainer for consistent fuel handling. The FG2699 also includes the sending unit and float arm, helping maintain accurate fuel level feedback in the tank.
This part cross-references Monroe Shocks & Struts (e.g., PFS1157, USEP21033M) for the same application. Delphi FG2699 is a practical choice when replacing a worn fuel pump module on a Ford EcoSport diesel platform and when restoring proper fuel pressure, fuel level signal, and in-tank pump operation.
What It Helps Fix
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Incorrect fuel gauge readings from a failing sending unit
- Low fuel pressure in diesel fuel systems
- Noise or performance issues from a worn in-tank pump module
Installation Notes and Tips
Compatible With 2018-2022 Ford EcoSport, in-tank diesel fuel pump module applications. Verify connector shape, terminal count, outlet style, and tank configuration before installation. The module uses a quick-connect outlet and does not include mounting hardware or a lock ring, so reuse or source those items as needed based on the vehicle setup. Follow the service manual for fuel system depressurization, tank access, and seal placement to help prevent leaks.
Quality Assurance
Delphi is a Tier 1 supplier to major global vehicle manufacturers and has decades of fuel system manufacturing experience. The FG2699 is built as a premium-grade replacement fuel pump module assembly for specific-fit diesel applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Ford | EcoSport | 2.0L | L4 | N/A | — |
| 2021 | Ford | EcoSport | 2.0L | L4 | N/A | — |
| 2020 | Ford | EcoSport | 2.0L | L4 | N/A | — |
| 2019 | Ford | EcoSport | 2.0L | L4 | N/A | — |
| 2018 | Ford | EcoSport | 2.0L | L4 | N/A | — |
| No rows match your filter. | ||||||
