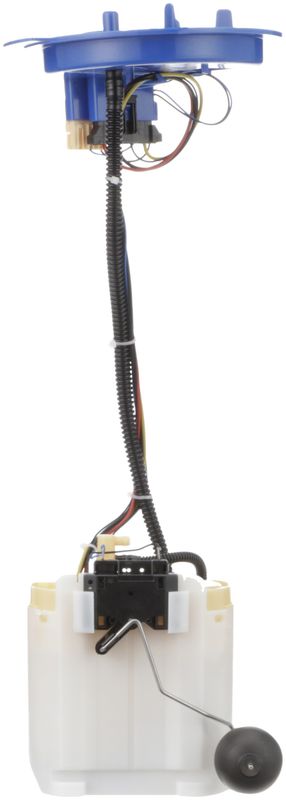

Delphi FG2712 Fuel Pump Module Assembly
| Brand | Delphi FG2712 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 93 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 8 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 990 |
| Resistance Ohms Full | 50 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 79 |
| Fits | BMW · 17 vehicles |
OE supplier pedigree. Delphi has supported global vehicle makers for over 80 years.
Premium fuel module. In-tank electric turbine design with regulator, strainer, and fuel filter.
Specific-fit assembly. Built as a direct fuel pump module replacement for gas applications.
Cross-references 16 11 7 467 720 and 16 11 9 468 600 for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2712 Fuel Pump Module Assembly
The Delphi FG2712 fuel pump module assembly is a specific-fit, in-tank electric fuel delivery unit for select BMW plug-in hybrid models. It combines the fuel pump, sending unit, regulator, strainer, and fuel filter in one premium assembly for direct replacement service.
Key Features
- Specific-fit fuel pump module assembly for gasoline applications
- In-tank electric turbine pump design
- Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
- 12-volt system with 1 connector, oval connector shape, and blade terminals
- Quick-connect outlet with 0.375 in. outside diameter
- Maximum pressure rating of 93 psi and average flow rating of 16
- Premium-grade construction with plastic housing and nitrile rubber seal material
- Package contents include fuel pump module assembly w/float arm, seal, splices, wire harness, and instruction sheet
Detailed Description
Delphi FG2712 is built for BMW 530e, BMW 530e xDrive, BMW 745e xDrive, and BMW 740e xDrive applications that require an in-tank fuel pump module assembly. Delphi has long supplied fuel system components to global vehicle manufacturers, and this module reflects that OE-focused approach with a turbine-style electric pump, integrated regulator, and fuel level sending unit for accurate fuel delivery and tank monitoring. The FG2712 part number is a direct reference for shoppers searching for a Delphi FG2712 fuel pump module assembly for BMW 530e or BMW 745e xDrive service.
This part cross-references BMW OE numbers 16 11 7 467 720 and 16 11 9 468 600 for the same application. The Delphi FG2712 is a practical choice when replacing a worn fuel pump module on 2018-2023 BMW 530e and 530e xDrive, as well as 2018-2019 BMW 740e xDrive and 2020-2022 BMW 745e xDrive models.
What It Helps Address
- Hard starting caused by weak fuel pressure
- Fuel starvation from a failing in-tank pump
- Inaccurate fuel level readings from a worn sending unit
- Pressure irregularities from a deteriorated regulator
- Restricted fuel delivery from a clogged internal strainer or filter
Installation Notes and Tips
Verify the vehicle’s OE part number, connector style, and tank configuration before installation. This module uses a single female oval connector with male blade terminals, a quick-connect outlet, and no mounting hardware included. Replace the seal during service, confirm the float arm moves freely, and follow the included instruction sheet for proper in-tank installation.
Quality Assurance
Delphi is a Tier 1 supplier with extensive fuel system engineering experience and a large OE presence in North American fuel management. The FG2712 is a premium fuel pump module assembly built to support direct-fit replacement on confirmed BMW applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | BMW | 530e | — | — | — | N/A | — |
| 2023 | BMW | 530e xDrive | — | — | — | N/A | — |
| 2022 | BMW | 530e | — | 2.0L | L4 | N/A | — |
| 2022 | BMW | 530e xDrive | — | 2.0L | L4 | N/A | — |
| 2022 | BMW | 745e xDrive | — | 3.0L | L6 | N/A | — |
| 2021 | BMW | 530e | — | 2.0L | L4 | N/A | — |
| 2021 | BMW | 530e xDrive | — | 2.0L | L4 | N/A | — |
| 2021 | BMW | 745e xDrive | — | 3.0L | L6 | N/A | — |
| 2020 | BMW | 530e | Base | 2.0L | L4 | N/A | — |
| 2020 | BMW | 530e xDrive | — | 2.0L | L4 | N/A | — |
| 2020 | BMW | 745e xDrive | — | 3.0L | L6 | N/A | — |
| 2019 | BMW | 530e | Base | 2.0L | L4 | N/A | — |
| 2019 | BMW | 530e xDrive | — | 2.0L | L4 | N/A | — |
| 2019 | BMW | 740e xDrive | — | 2.0L | L4 | N/A | — |
| 2018 | BMW | 530e | Base | 2.0L | L4 | N/A | — |
| 2018 | BMW | 530e xDrive | — | 2.0L | L4 | N/A | — |
| 2018 | BMW | 740e xDrive | — | 2.0L | L4 | N/A | — |
| No rows match your filter. | |||||||
