Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

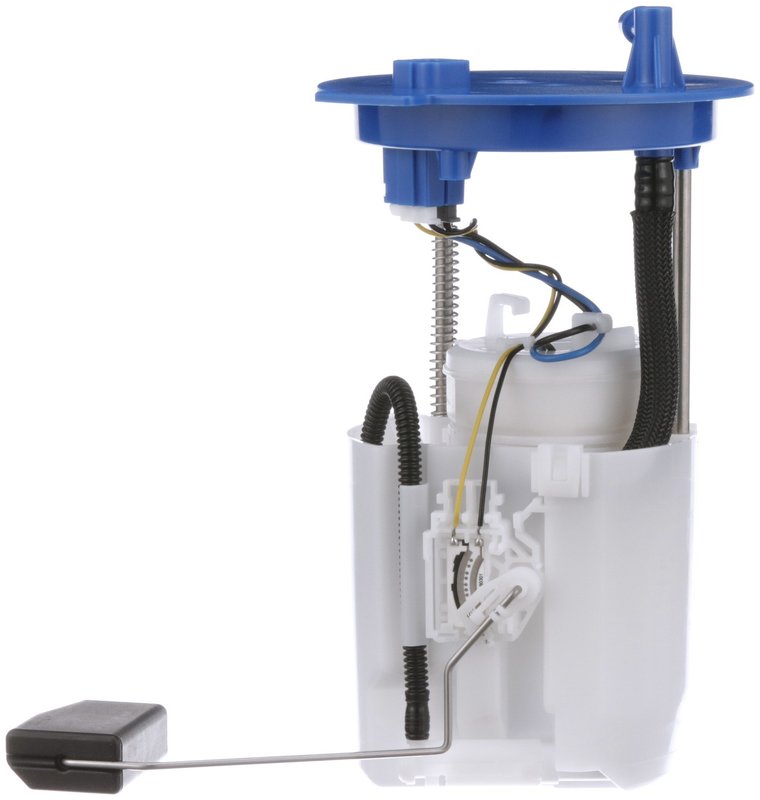

Delphi FG2714 Fuel Pump Module Assembly
| Brand | Delphi FG2714 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 80 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | Yes |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 780 |
| Resistance Ohms Full | 20 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 67 |
| Fits | Honda · 5 vehicles |
OE supplier pedigree. Delphi brings decades of fuel system expertise to this module assembly.
Complete in-tank module. Includes the pump, sender, regulator, strainer, filter, seal, and lock ring.
Specific-fit design. Built for a direct, application-matched replacement.
Cross-references 17045-TVC-A03, 17045-TVC-A04 and 17045TVCA01 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2714 Fuel Pump Module Assembly
The Delphi FG2714 fuel pump module assembly is a specific-fit, in-tank replacement for select Honda Accord models. Built for 12-volt gas applications, it includes the fuel sending unit, regulator, strainer, fuel filter, gasket/seal, lock ring, and float arm for a complete service solution.
Fits 2018-2022 Honda Accord, N/A. This Delphi FG2714 assembly is a direct-fit option for Accord fuel system service where the original module has worn out or failed.
Key Features
- Fuel pump module assembly for in-tank gasoline applications
- Specific fit for 2018-2022 Honda Accord
- Includes fuel sending unit, regulator, strainer, fuel filter, seal, and lock ring
- 12-volt electric turbine pump design
- Quick-connect outlet with one outlet and one female connector
- Premium-grade construction with plastic housing
- Maximum pressure rating of 80 psi and average flow rating of 32
- Blade terminals, 4 terminal count, and square connector shape
Detailed Description
Delphi has supplied fuel delivery components to global vehicle manufacturers for decades, and the FG2714 reflects that OE-focused engineering approach. This fuel pump module assembly is built for in-tank installation on the Honda Accord and is configured for gasoline use with a turbine-style electric pump, internal strainer, and integrated fuel level sending unit. The module also includes a regulator and fuel filter to support complete fuel system replacement in one service.
For technicians and DIY repair work on a Honda Accord fuel pump replacement, Delphi FG2714 offers the core components needed to restore fuel delivery and tank-level signal performance. This part cross-references OE-style numbers 17045-TVC-A03 and 17045-TVC-A04 for the same application.
What It Helps Fix
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent fuel pressure
- Fuel gauge inaccuracies from a worn sending unit
- Low fuel pressure conditions in the tank-mounted pump system
- Noise or performance issues from an aging pump module
Installation Notes and Tips
Install this module in the fuel tank using the included seal and lock ring. Verify connector style, outlet type, and electrical terminal layout before installation on the Honda Accord. Because mounting hardware is not included, reuse or source any additional vehicle-specific hardware as needed. Confirm the fuel system is depressurized and the tank area is clean before opening the module access point.
Quality Assurance
Delphi is a Tier 1 supplier with long-standing experience in fuel management components and OE-level fuel technology development. The FG2714 is built as a premium replacement fuel pump module assembly for specific-fit service on the 2018-2022 Honda Accord.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Honda | Accord | 2.0L | L4 | N/A | — |
| 2021 | Honda | Accord | 2.0L | L4 | N/A | — |
| 2020 | Honda | Accord | 2.0L | L4 | N/A | — |
| 2019 | Honda | Accord | 2.0L | L4 | N/A | — |
| 2018 | Honda | Accord | 2.0L | L4 | N/A | — |
| No rows match your filter. | ||||||
