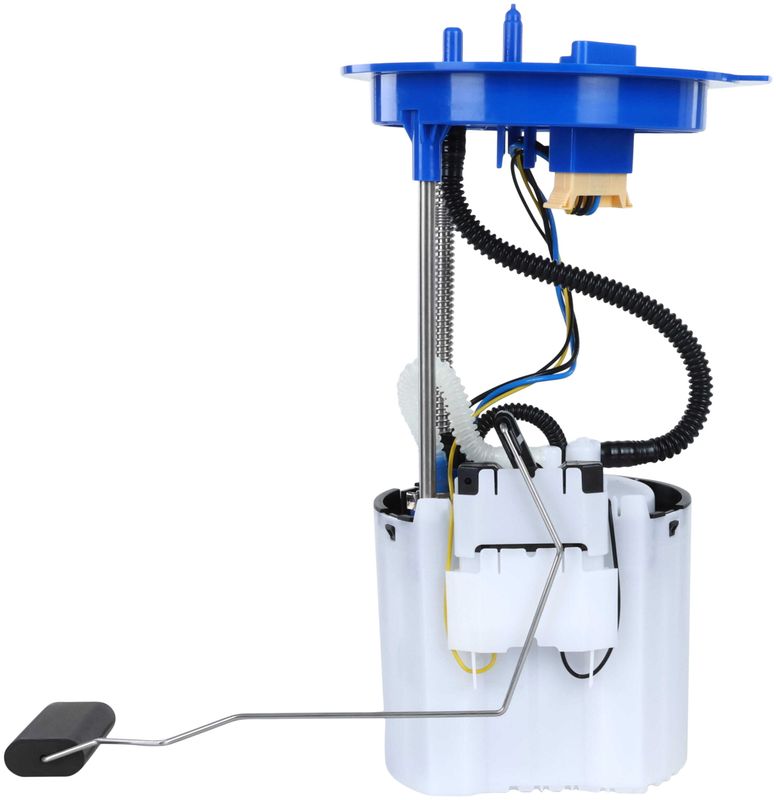

Delphi FG2723 Fuel Pump Module Assembly
| Brand | Delphi FG2723 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Outlet Outside Diameter | 7.9 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 145 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | No |
| In Tank or External | In tank |
| Resistance Ohms Empty | 990 |
| Resistance Ohms Full | 50 |
| Gasket Or Seal Material | Nitrile rubber |
| Fits | Volvo · 3 vehicles |
Specific fit. Built as a direct replacement fuel pump module assembly.
Turbine pump design. Delivers steady fuel flow with efficient electric operation.
Premium grade. Includes a fuel sending unit, strainer, and seal.
Cross-references 32139300-0, 32203666 and 32203666-0 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG2723 Fuel Pump Module Assembly
Delphi FG2723 is a premium in-tank fuel pump module assembly for gasoline applications. It includes the fuel sending unit, strainer, and seal, and is built as a specific-fit replacement for 2019-2021 Volvo XC40 models.
Key Features
- In-tank electric fuel pump module assembly for gas applications
- Specific fit for 2019-2021 Volvo XC40
- Fuel sending unit included for fuel level signal support
- Turbine pump design with 12V operation
- Quick-connect outlet design with two outlets
- Premium-grade construction with plastic housing
- Strainer and nitrile rubber seal included
- Maximum pressure rating of 145 and average flow rating of 24
Detailed Description
Delphi FG2723 fuel pump module assembly is engineered for direct replacement in the fuel tank and is built for gasoline fuel systems. The module uses an electric turbine pump design, a blade terminal connection, and a single female rectangle connector for a clean OE-style interface. Delphi has long-standing fuel system manufacturing experience and supplies fuel delivery components to global vehicle manufacturers, which is reflected in the design and construction of this module. If you are servicing a Volvo XC40 fuel system, Delphi FG2723 provides the correct fitment for 2019-2021 Volvo XC40 applications. This part cross-references PFS-1082 for the same application.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from inconsistent fuel pressure
- Fuel gauge issues related to the sending unit
- Poor drivability from a failing in-tank pump module
- Fuel system noise associated with worn pump components
Installation Notes and Tips
Install FG2723 in the fuel tank using the correct service procedure for the Volvo XC40. Verify connector orientation, outlet routing, and seal placement before closing the tank. Because mounting hardware and lock ring are not included, reuse or source the required service parts as specified by the vehicle repair procedure. Confirm the vehicle is a 2019-2021 Volvo XC40 before installation.
Quality Assurance
Delphi is a Tier 1 supplier with more than 80 years of fuel pump and fuel delivery manufacturing experience. The brand also supports technicians with training resources and a technical hotline for product and service guidance.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Volvo | XC40 | 2.0L | L4 | — |
| 2020 | Volvo | XC40 | 2.0L | L4 | — |
| 2019 | Volvo | XC40 | 2.0L | L4 | — |
