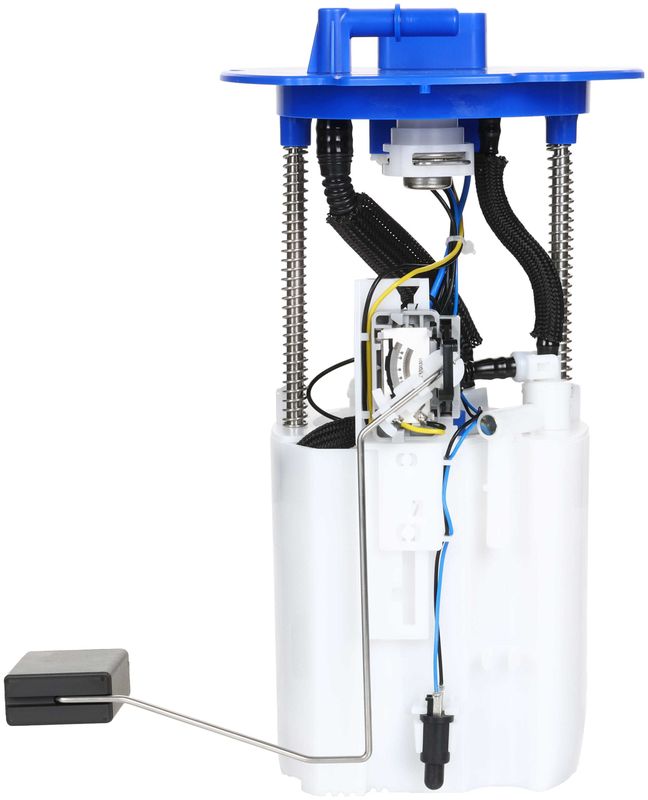

Delphi FG2741 Fuel Pump Module Assembly
| Brand | Delphi FG2741 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 74 |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | No |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 7 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 141 |
| Resistance Ohms Full | 44 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 43 |
| Internal Or External Strainer | Internal |
| Fits | INFINITI · 12 vehicles |
Specific-fit design. Built for direct replacement in select fuel delivery applications.
Integrated module. Includes the sending unit, regulator, strainer, and fuel filter.
In-tank electric pump. Uses a turbine-style pump with 12-volt operation.
Cross-references 17040-4HK0A, SP4183M and USEP21051M for the same application. See all 3.
Fuel Pump Module Assembly Overview
Delphi FG2741 is a specific-fit fuel pump module assembly for select INFINITI applications. It combines the pump, sending unit, regulator, strainer, and fuel filter in one in-tank unit for a direct replacement approach.
- Specific-fit fuel pump module assembly for gas applications
- In-tank electric turbine pump with 12-volt operation
- Includes fuel sending unit, regulator, strainer, and fuel filter
- Quick-connect outlet with a single female connector and blade terminals
- Plastic housing with nitrile rubber seal material
Detailed Product Description
Delphi FG2741 is built as a premium fuel pump module assembly for vehicles that use an in-tank, specific-fit fuel delivery design. It features an electric turbine pump, a quick-connect outlet, and a rectangular connector layout with 7 terminals for integrated fuel system operation. The module is rated for a 43 to 74 psi pressure range and a 55 average flow rating, with a fuel sending unit, regulator, internal strainer, and fuel filter included in the assembly. Delphi FG2741 is a direct-fit solution for select INFINITI Q50 and INFINITI Q60 applications, and the FG2741 part number is commonly used when matching the correct fuel delivery module for these vehicles. This part cross-references Nissan 17040-4HK0A for the same application.
Common Replacement Issues
- Hard starting caused by weak fuel delivery
- Engine stalling from inconsistent pump output
- Fuel gauge errors related to a failing sending unit
- Loss of pressure from worn internal pump components
- Fuel starvation from a restricted or failing module assembly
Installation Notes
Fits 2016-2022 INFINITI Q50, N/A. Fits 2017-2021 INFINITI Q60, N/A. Verify connector style, outlet type, and pressure requirements before installation. The FG2741 is an in-tank module, so access is through the fuel tank service opening or tank removal, depending on vehicle configuration.
Quality Assurance
Delphi is a Tier 1 supplier to major global vehicle manufacturers and has more than 80 years of fuel system manufacturing experience. The FG2741 reflects Delphi's OE-focused fuel technology background and its long-running presence in North American fuel management.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2022 | INFINITI | Q50 | 3.0L | V6 | — |
| 2021 | INFINITI | Q50 | 3.0L | V6 | — |
| 2021 | INFINITI | Q60 | 3.0L | V6 | — |
| 2020 | INFINITI | Q50 | 3.0L | V6 | — |
| 2020 | INFINITI | Q60 | 3.0L | V6 | — |
| 2019 | INFINITI | Q50 | 3.0L | V6 | — |
| 2019 | INFINITI | Q60 | 3.0L | V6 | — |
| 2018 | INFINITI | Q50 | 3.0L | V6 | — |
| 2018 | INFINITI | Q60 | 3.0L | V6 | — |
| 2017 | INFINITI | Q50 | 3.0L | V6 | — |
| 2017 | INFINITI | Q60 | 3.0L | V6 | — |
| 2016 | INFINITI | Q50 | 3.0L | V6 | — |
