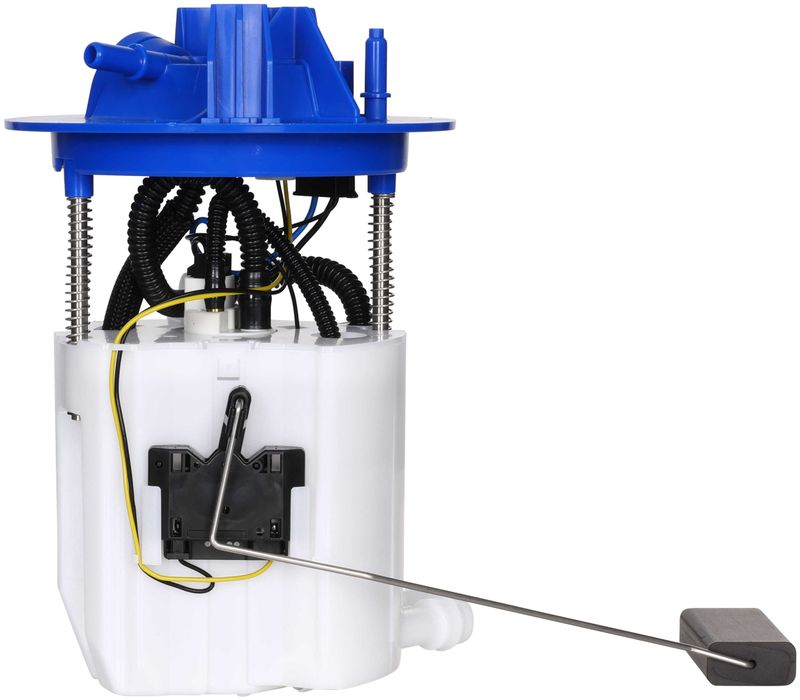

Delphi FG2742 Fuel Pump Module Assembly - Right
| Brand | Delphi FG2742 |
|---|---|
| Position | Right |
| Fuel Sending Unit Included | Yes |
| Negative Ground | Yes |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Diesel |
| Regulator Included | No |
| Maximum Pressure | 181 |
| Terminal Type | Blade |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Gasket Or Seal Included | No |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 7 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 990 |
| Resistance Ohms Full | 51 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 102 |
| Internal Or External Strainer | Internal |
| Fits | Mercedes-Benz · 8 vehicles |
Specific-fit design. Built for diesel fuel systems with in-tank placement and direct application matching.
Complete module components. Includes the sending unit, strainer, and fuel filter for fuel delivery service.
OE-focused engineering. Backed by Delphi’s long history in fuel system manufacturing and OE development.
Cross-references 166 470 29 94 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Overview
Delphi FG2742 is a specific-fit fuel pump module assembly for diesel applications with in-tank placement and right-side fitment. It includes the fuel sending unit, strainer, and fuel filter, making it a focused replacement for restoring fuel delivery and level-signal function.
Key Features
- Specific-fit fuel pump module assembly for diesel fuel systems.
- In-tank electric turbine pump with 12-volt operation.
- Includes fuel sending unit, strainer, and fuel filter.
- Quick-connect outlet with a single female connector and 7 male terminals.
- Premium-grade housing with plastic construction and nitrile rubber seal material.
- Maximum pressure rating of 181 and average flow rating of 61.
Detailed Description
Delphi FG2742 is built for Mercedes-Benz diesel applications that require a right-side in-tank fuel pump module assembly. It is engineered with a turbine-style electric pump, blade terminals, and an oval connector layout for a direct service replacement in the fuel delivery system. This part cross-references Mercedes-Benz 166 470 29 94 for the same application. Delphi FG2742 is a practical choice when replacing a worn module in Mercedes-Benz GLE300d, GLS350d, GL350, or ML250 diesel models.
Delphi brings more than 80 years of fuel system manufacturing experience and a broad OE-focused engineering background. The brand’s fuel technology portfolio includes proprietary innovations and patented designs used across global vehicle programs.
Common Problems This Part Addresses
- Hard starting caused by weak fuel delivery.
- Fuel level reading issues from a failing sending unit.
- Low fuel pressure from pump wear or internal restriction.
- Fuel starvation from a clogged or damaged strainer.
- Driveability problems linked to inconsistent diesel fuel supply.
Installation Notes and Tips
Verify the right-side position, connector style, and diesel fuel-system requirements before installation. Confirm the tank opening, outlet connection, and electrical terminal layout match the original module. Because this assembly is specific-fit, use the vehicle application data to confirm compatibility before service.
Quality Assurance
Delphi is a Tier 1 supplier with long-standing OE fuel system experience, and FG2742 is built as a premium replacement fuel module for specific applications. Part number FG2742 is also referenced as Mercedes-Benz 166 470 29 94.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Mercedes-Benz | GLE300d | 2.1L | L4 | Right | — |
| 2017 | Mercedes-Benz | GLS350d | 3.0L | V6 | Right | — |
| 2016 | Mercedes-Benz | GL350 | 3.0L | V6 | Right | — |
| 2016 | Mercedes-Benz | GLE300d | 2.1L | L4 | Right | — |
| 2015 | Mercedes-Benz | GL350 | 3.0L | V6 | Right | — |
| 2015 | Mercedes-Benz | ML250 | 2.1L | L4 | Right | — |
| 2014 | Mercedes-Benz | GL350 | 3.0L | V6 | Right | — |
| 2013 | Mercedes-Benz | GL350 | 3.0L | V6 | Right | — |
| No rows match your filter. | ||||||
