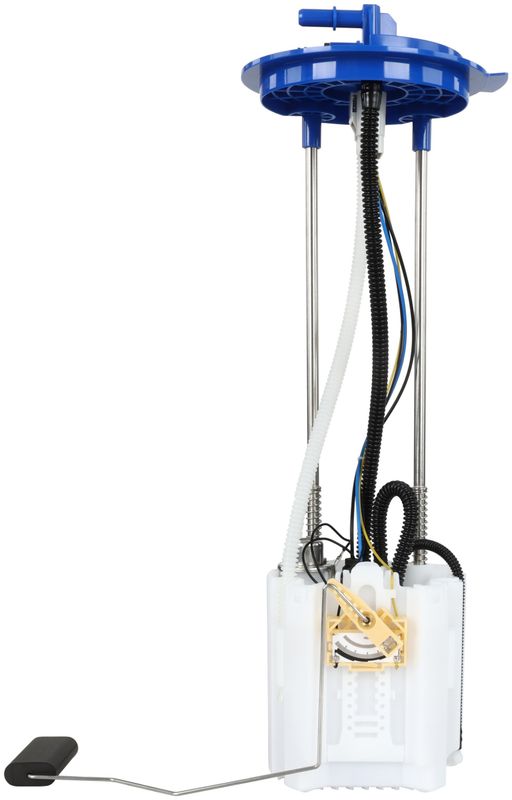

Delphi FG2753 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Ram 3500

Delphi FG2753 is a premium in-tank fuel pump module assembly built for specific Ram 3500 applications from 2014-2020. It combines the fuel pump, sending unit, regulator, strainer, and fuel filter in one OE-style assembly for gas-powered trucks that need precise fuel delivery and tank level reporting.

Key Features

• Specific-fit fuel pump module assembly for 2014-2020 Ram 3500
• In-tank electric turbine pump design for gas fuel systems
• Fuel sending unit, regulator, strainer, gasket/seal, and fuel filter included
• 12-volt system with blade terminals and a single female connector
• Quick-connect outlet design with two outlet ports
• Premium-grade construction with plastic housing and nitrile rubber seal material
• Operating pressure range: 58 to 64 psi
• Average flow rating: 37 and average current draw: 13

Detailed Description

Delphi FG2753 is engineered as a direct replacement fuel pump module assembly for Ram 3500 trucks equipped with the listed gas applications. Delphi has supplied fuel system components to global vehicle manufacturers for decades, and this module reflects that OE-focused approach with a turbine pump design, integrated pressure regulator, and fuel level sending unit for accurate fuel delivery and tank monitoring. The FG2753 part number is a practical match for technicians and owners looking for a specific-fit replacement on Ram 3500 fuel system repairs. This part cross-references Chrysler OE numbers (e.g., 6823 7051AA, 6823 7051AB) for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak or inconsistent fuel pressure
• Engine stalling from fuel delivery interruption inside the tank
• Incorrect fuel gauge readings from a worn sending unit
• Fuel pressure regulation issues affecting drivability
• Poor fuel flow from a failing pump module assembly

Installation Notes and Tips

Verify the vehicle’s fuel system configuration before installation and confirm the connector, outlet style, and pressure specifications match the original unit. Because this is an in-tank assembly, access is typically through the fuel tank opening, and the tank should be safely supported and drained as needed before service. Replace the seal during installation and inspect the tank, wiring, and fuel lines for wear or contamination before reassembly. For fitment reference, this part fits 2014-2020 Ram 3500, N/A.

Quality Assurance

Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and extensive OE-proprietary fuel technology development. FG2753 is built to support dependable fuel delivery and accurate tank-level operation in the specified Ram 3500 applications.
