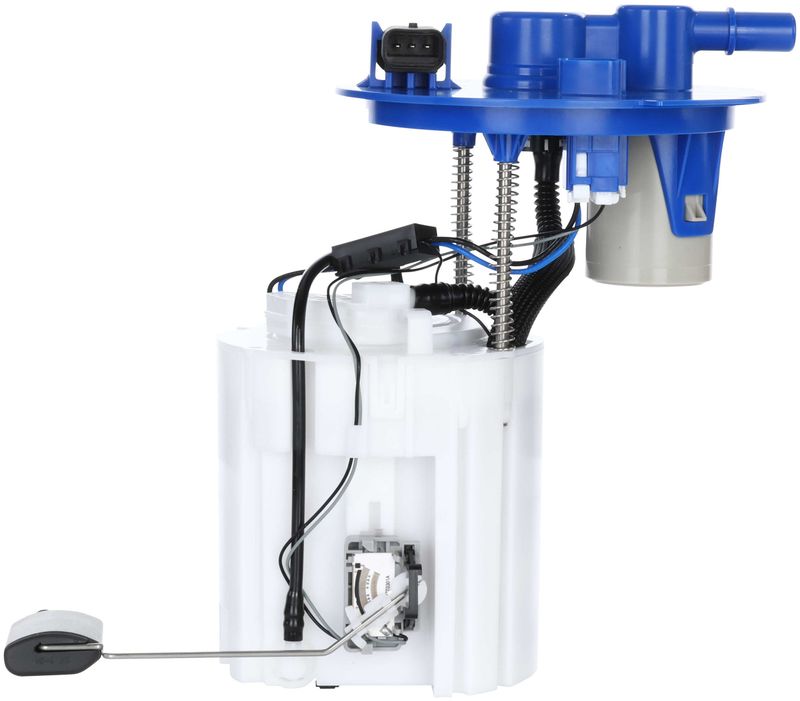

Delphi FG2775 Fuel Pump Module Assembly
| Brand | Delphi FG2775 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.313 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 55 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| Fuel Filter Included | Yes |
| In Tank or External | In tank |
| Resistance Ohms Empty | 300 |
| Resistance Ohms Full | 15 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 49 |
| Fits | Hyundai and Kia · 20 vehicles |
Specific-fit design. Built for direct replacement in supported fuel system applications.
Complete module. Includes the sending unit, regulator, strainer, filter, and pressure sensor.
OE-focused engineering. Delphi brings decades of fuel delivery manufacturing experience.
Cross-references Spectra Premium SP3049M, 17045-TVA-A01 and 17045-TVA-A02 for the same application. See all 9.
Fuel Pump Module Assembly Overview
Delphi FG2775 is a specific-fit fuel pump module assembly for gasoline applications. It combines the pump, sending unit, regulator, strainer, fuel filter, and tank pressure sensor in one in-tank unit for a direct replacement approach on supported Hyundai and Kia applications.
- Specific-fit fuel pump module assembly for gasoline systems
- In-tank electric turbine pump design with 12-volt operation
- Includes fuel sending unit, regulator, strainer, fuel filter, and tank pressure sensor
- Female trapezoid connector with blade terminals and quick-connect outlets
- Plastic housing with nitrile rubber seal material
Detailed Product Information
FG2775 is built around Delphi fuel delivery engineering and is intended for vehicles that require a complete in-tank module rather than a standalone pump. The assembly uses a turbine-style electric pump with a stated flow rating of 30 and a pressure range of 49 to 55, supporting consistent fuel delivery in compatible Hyundai Accent, Hyundai Elantra, Hyundai Kona, Kia Forte, and Kia Rio applications. Delphi FG2775 also includes the sending unit and pressure sensor needed for fuel level and system monitoring.
Delphi has supplied fuel system components to global vehicle manufacturers for decades and applies OE-focused manufacturing experience to this fuel pump module assembly. The FG2775 part number is also referenced in cross applications such as Spectra Premium SP3049M for the same general use case. If you are replacing a worn fuel pump module assembly on a Hyundai Elantra or Kia Forte, FG2775 provides the key integrated components in one service part.
What This Part Helps Address
- Hard starting caused by weak fuel delivery
- Fuel starvation under load or at higher demand
- Inaccurate fuel level readings from a failing sending unit
- Fuel pressure irregularities from a worn regulator or pump
- Check engine concerns related to fuel system performance
Installation Notes and Tips
Fits 2019-2024 Kia Forte, N/A. Fits 2020-2022 Hyundai Accent, N/A. Fits 2018-2022 Hyundai Kona, N/A. Fits 2020-2021 Kia Rio, N/A. Fits 2017-2020 Hyundai Elantra, N/A.
Confirm connector shape, outlet style, and tank configuration before installation. This module is specific fit and uses an in-tank layout, so matching the original application details is important for proper installation and operation. Mounting hardware is not listed as included.
Quality Assurance
Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and OE-proprietary fuel technology development. FG2775 reflects that OE-focused engineering approach for fuel delivery service parts.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2024 | Kia | Forte | 2.0L | L4 | — |
| 2023 | Kia | Forte | 2.0L | L4 | — |
| 2022 | Hyundai | Accent | 1.6L | L4 | — |
| 2022 | Hyundai | Kona | 2.0L | L4 | — |
| 2022 | Kia | Forte | 2.0L | L4 | — |
| 2021 | Hyundai | Accent | 1.6L | L4 | — |
| 2021 | Hyundai | Kona | 2.0L | L4 | — |
| 2021 | Kia | Forte | 2.0L | L4 | — |
| 2021 | Kia | Rio | 1.6L | L4 | — |
| 2020 | Hyundai | Accent | 1.6L | L4 | — |
| 2020 | Hyundai | Elantra | 2.0L | L4 | — |
| 2020 | Hyundai | Kona | 2.0L | L4 | — |
| 2020 | Kia | Forte | 2.0L | L4 | — |
| 2020 | Kia | Rio | 1.6L | L4 | — |
| 2019 | Hyundai | Elantra | 2.0L | L4 | — |
| 2019 | Hyundai | Kona | 2.0L | L4 | — |
| 2019 | Kia | Forte | 2.0L | L4 | — |
| 2018 | Hyundai | Elantra | 2.0L | L4 | — |
| 2018 | Hyundai | Kona | 2.0L | L4 | — |
| 2017 | Hyundai | Elantra | 2.0L | L4 | — |
