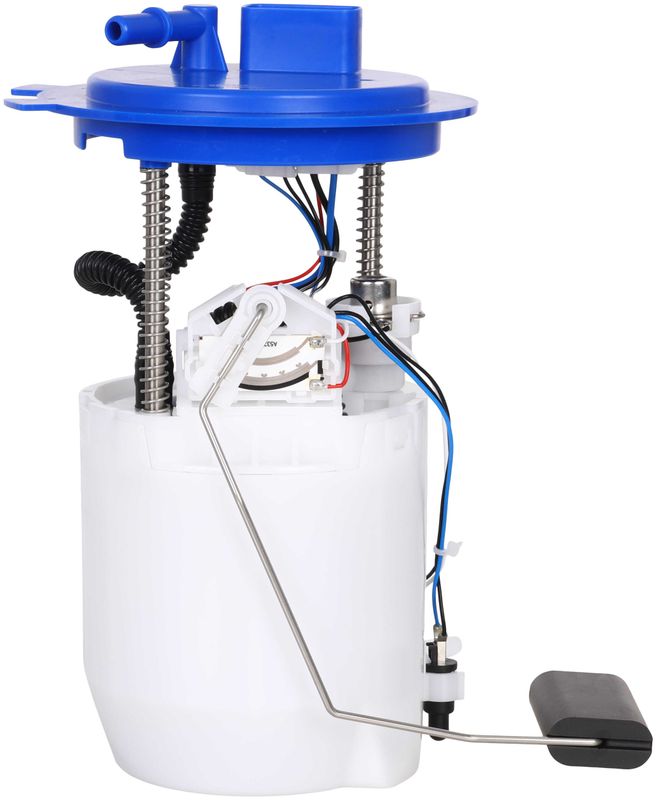

Delphi FG2809 Fuel Pump Module Assembly
| Brand | Delphi FG2809 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 82 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 6 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 125 |
| Resistance Ohms Full | 25 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 74 |
| Internal Or External Strainer | Internal |
| Fits | INFINITI · 8 vehicles |
Specific-fit design. Built for direct replacement in gasoline fuel systems.
Complete module. Includes the sending unit, strainer, and seal for service work.
OE-focused engineering. Delphi brings decades of fuel system manufacturing experience.
Cross-references 17040-5NA0A, 17040-5NA0B and 17040-5NA0C for the same application. See all 4.
Fuel Pump Module Assembly Overview
Delphi FG2809 is a specific-fit fuel pump module assembly for gasoline applications. It combines an electric turbine pump, fuel sending unit, strainer, and seal in one in-tank module for a direct service replacement.
Key Features
- Specific-fit fuel pump module assembly for gasoline systems
- Electric turbine pump with 12-volt operation
- Fuel sending unit, strainer, and gasket or seal included
- Quick-connect outlet with a single female connector
- Plastic housing with premium-grade construction
- Maximum pressure rating of 82 psi and average flow rating of 34
Detailed Description
Delphi FG2809 is built as an in-tank fuel pump module assembly for vehicles that require a specific-fit replacement. It uses a turbine-style electric pump and includes the fuel sending unit, which helps restore fuel delivery and fuel level reporting in one service part. The module features a quick-connect outlet, blade terminals, a rectangular connector, and a nitrile rubber seal for service replacement work. This part cross-references Nissan 17040-5NA0A and 17040-5NA0B for the same application. Delphi FG2809 is engineered for 2019-2024 INFINITI QX50 and 2022-2023 INFINITI QX55 applications, making it a fitment-focused option for these models.
What It Is Used For
- Restoring fuel delivery when the original pump is worn or failing
- Correcting inaccurate fuel level readings from a faulty sending unit
- Addressing hard-start, stalling, or fuel starvation symptoms
- Replacing a leaking module seal or damaged in-tank assembly
Installation Notes and Tips
Verify connector style, outlet type, and tank configuration before installation. This module is specific fit, so confirm the vehicle application against the part number FG2809 before service. The package contents list a fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet.
Quality Assurance
Delphi is a Tier 1 supplier with more than 80 years of fuel system manufacturing experience and a broad OE-focused fuel technology portfolio. Part number FG2809 reflects that OE-oriented engineering approach for fuel management service.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2024 | INFINITI | QX50 | Sport | 2.0L | L4 | — |
| 2023 | INFINITI | QX50 | Sport | 2.0L | L4 | — |
| 2023 | INFINITI | QX55 | Sensory | 2.0L | L4 | — |
| 2022 | INFINITI | QX50 | Sensory | 2.0L | L4 | — |
| 2022 | INFINITI | QX55 | Sensory | 2.0L | L4 | — |
| 2021 | INFINITI | QX50 | Sensory | 2.0L | L4 | — |
| 2020 | INFINITI | QX50 | Sensory | 2.0L | L4 | — |
| 2019 | INFINITI | QX50 | Pure | 2.0L | L4 | — |
