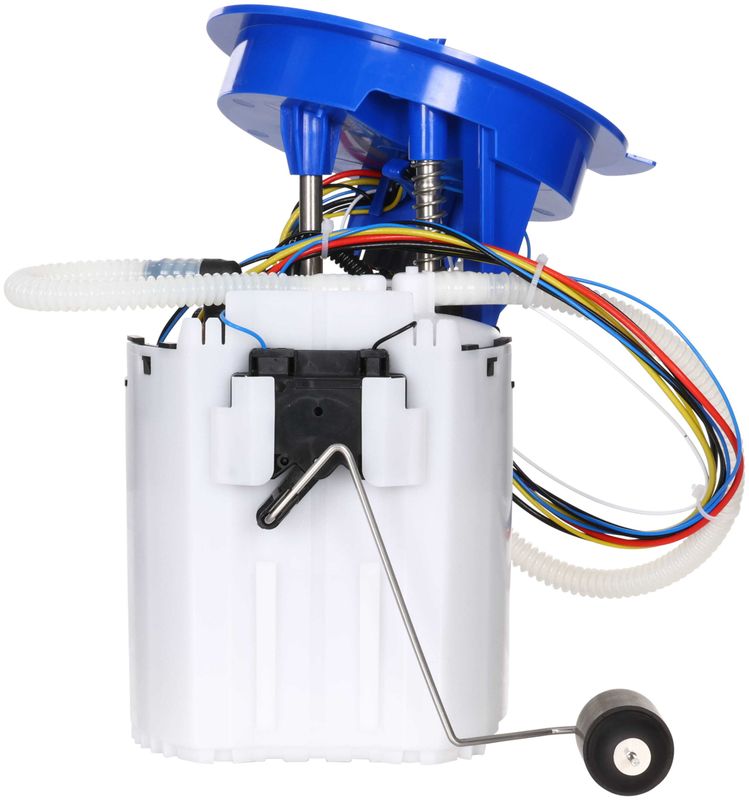

Delphi FG2816 Fuel Pump Module Assembly

Fuel Pump Module Overview

This Delphi fuel pump module assembly is a specific-fit, in-tank replacement for gasoline applications. It is built around a turbine-style electric pump and includes the fuel sending unit, seal, strainer, and fuel filter for a complete service-focused repair.

Key Features

• Specific-fit fuel pump module assembly for direct application matching
• In-tank electric turbine pump for gasoline fuel systems
• Fuel sending unit, strainer, seal, and fuel filter included
• Quick-connect outlet with a single female connector and 7 male terminals
• Plastic housing with nitrile rubber seal material
• Rated for 12-volt operation with a maximum pressure of 152

Detailed Description

Delphi FG2816 is engineered as a premium fuel pump module assembly for Volvo S60, Volvo S90, Volvo V60, Volvo V60 Cross Country, Volvo V90, and Volvo V90 Cross Country applications. It uses an in-tank electric turbine pump design and a quick-connect outlet to support clean fuel delivery and accurate tank level reporting through the included sending unit. The FG2816 part number is also referenced by interchange numbers 31355907 and 31355907-0 for the same application.

Delphi brings more than 80 years of fuel system manufacturing experience and a long history as an OE supplier to global vehicle manufacturers. The FG2816 reflects that background with a specific-fit design and component set intended to streamline fuel system service on Volvo S60 and Volvo V90 platform vehicles.

Common Repair Uses

• Fuel delivery problems caused by a worn pump module
• Incorrect fuel level readings from a failing sending unit
• Hard starting or no-start conditions related to low fuel pressure
• Fuel starvation under load from restricted internal pump performance
• Fuel system service when the tank module seal or strainer is deteriorated

Installation Notes

Verify connector style, outlet type, and tank module configuration before installation. This assembly is designed for in-tank use and does not include mounting hardware or a lock ring. Follow the vehicle service procedure for fuel system depressurization and sealing surfaces, and confirm all electrical connections are secure before returning the vehicle to service.

Quality Assurance

Delphi is a Tier 1 supplier with extensive OE fuel system experience and more than 30 proprietary fuel technology innovations backed by 150 patents. FG2816 is built as a premium replacement fuel pump module assembly for consistent fuel delivery and level-sensing performance.
