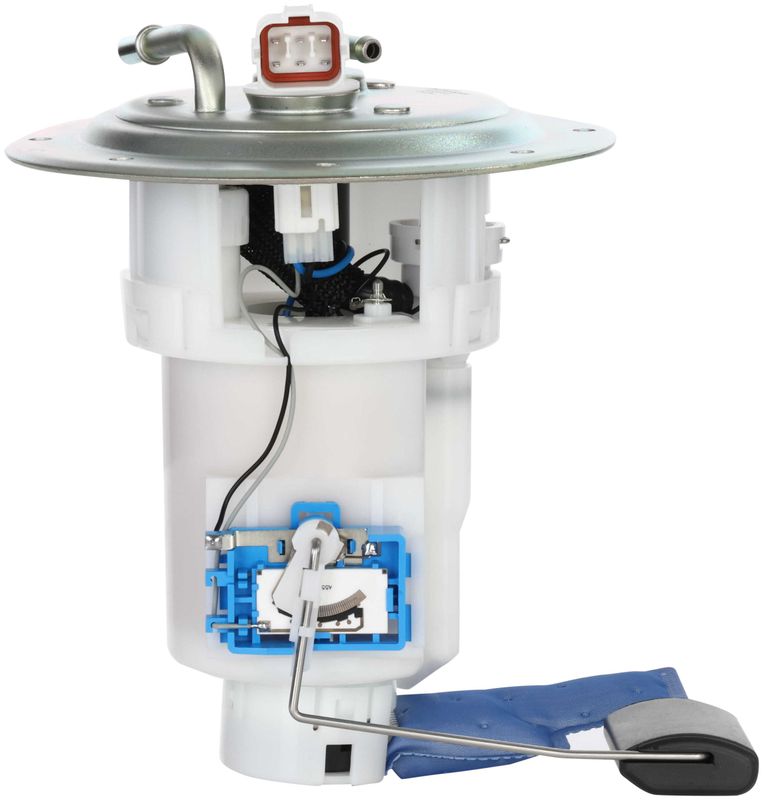

Delphi FG2818 Fuel Pump Module Assembly

Delphi FG2818 Fuel Pump Module Assembly

The Delphi FG2818 fuel pump module assembly is a specific-fit in-tank replacement for 2003-2005 Hyundai Accent models. It combines the pump, fuel sending unit, regulator, strainer, fuel filter, gasket/seal, and float arm in one OE-style assembly for a direct service replacement.

Key Features

• Specific-fit fuel pump module assembly for gas applications
• In-tank electric turbine pump design with 12-volt operation
• Includes fuel sending unit, regulator, strainer, fuel filter, and gasket/seal
• Quick-connect outlet design with two outlets and one female connector
• Premium-grade construction with plastic housing and nitrile rubber seal material
• Maximum pressure rating of 57 psi and average flow rating of 24
• Blade terminal type with six terminals and square connector shape

Detailed Description

Delphi FG2818 is built for the 2003-2005 Hyundai Accent, making it a direct replacement for vehicles that need a complete in-tank fuel delivery service part. Delphi has supplied fuel system components to global vehicle manufacturers for decades, and this module reflects that OE-focused approach with a turbine-style electric pump, integrated pressure regulation, and a fuel level sending unit for accurate tank readings. This part cross-references Carter P76167M for the same application.

For shoppers searching for a 2003 Hyundai Accent fuel pump module assembly, 2004 Hyundai Accent fuel pump replacement, or 2005 Hyundai Accent in-tank fuel pump module, the FG2818 provides the core components needed to restore fuel delivery and fuel level reporting in one assembly. The Delphi FG2818 part number is also commonly referenced in fuel system replacement searches for Hyundai Accent service work.

What It Helps Address

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent fuel pressure
• Fuel gauge readings that are inaccurate or intermittent
• Low fuel pressure conditions affecting drivability
• Noise or wear associated with an aging in-tank pump module

Installation Notes and Tips

Verify vehicle fitment by year, make, and model before installation. This module is specific fit for 2003-2005 Hyundai Accent applications and installs in the fuel tank. Confirm connector style, outlet type, and pressure requirements match the original unit before removal. Replace the tank seal during service and inspect the fuel lines, electrical connector, and tank opening for wear or contamination before reassembly.

Quality Assurance

Delphi is a Tier 1 supplier with long-standing fuel system manufacturing experience and extensive OE-related fuel technology development. The FG2818 is built as a premium replacement fuel pump module assembly for direct-fit service on the listed Hyundai Accent applications.
