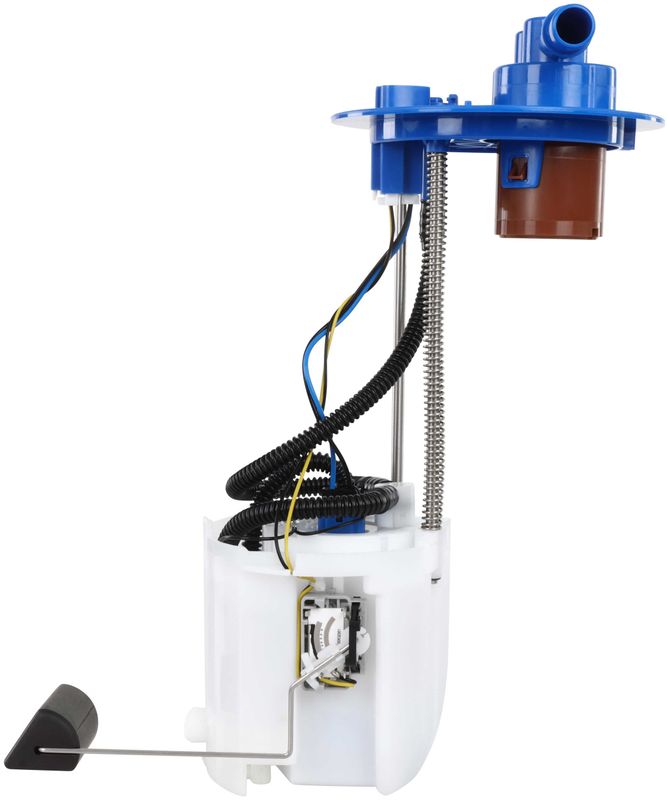

Delphi FG2819 Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

Delphi FG2819 is a specific-fit fuel pump module assembly for gasoline applications with an in-tank, turbine-style electric pump. It includes the fuel sending unit, regulator, strainer, fuel filter, and seal to support a complete fuel delivery service.

Compatible With Toyota Prius C, Toyota Yaris, and Scion xD applications, this module is built around a 12-volt electric design with a trapezoid female connector and blade terminals. Delphi FG2819 is a practical choice when replacing a worn fuel pump module assembly in these vehicles.

Key Features

• Specific-fit fuel pump module assembly for gasoline fuel systems.
• In-tank turbine pump design with 12-volt electric operation.
• Includes fuel sending unit, regulator, strainer, fuel filter, and seal.
• Plastic housing with nitrile rubber seal material.
• Female trapezoid connector with 4 male blade terminals.
• Push-in outlet design with one outlet and internal strainer.

Detailed Description

Delphi FG2819 is engineered as a direct replacement fuel pump module assembly for select Toyota Prius C, Toyota Yaris, and Scion xD models. The module uses an electric turbine pump and is rated for 49 to 51 psi, with an average current draw of 6 amps and an average flow rating of 18. The assembly also integrates the sending unit and regulator, helping restore fuel delivery and fuel level signal function in one service part. Delphi FG2819 cross-references Carter P77246M for the same application.

Delphi brings more than 80 years of fuel system manufacturing experience and OE-focused engineering to this fuel pump module assembly. The FG2819 part number appears in service listings for 2007-2012 Toyota Yaris, 2008-2010 Scion xD, and 2012 Toyota Prius C applications, making it a fitment-specific replacement for those platforms.

What It Helps Fix

• Hard starting caused by weak fuel delivery.
• Engine stalling from inconsistent pump output.
• Incorrect fuel level readings from a failing sending unit.
• Fuel pressure loss in the tank-mounted fuel system.
• Driveability issues tied to a worn pump module assembly.

Installation Notes and Tips

Install this module in the fuel tank and verify connector shape, terminal count, and outlet style before installation. Replace the seal during service and confirm the fuel system is depressurized before removal. This part number FG2819 is listed for specific Toyota and Scion applications, so match the vehicle year and model exactly before ordering.

Quality Assurance

Delphi is a Tier 1 supplier with long-standing OE fuel system manufacturing experience and a broad patent portfolio in fuel technologies. FG2819 is built as a premium, specific-fit replacement for the listed applications.
