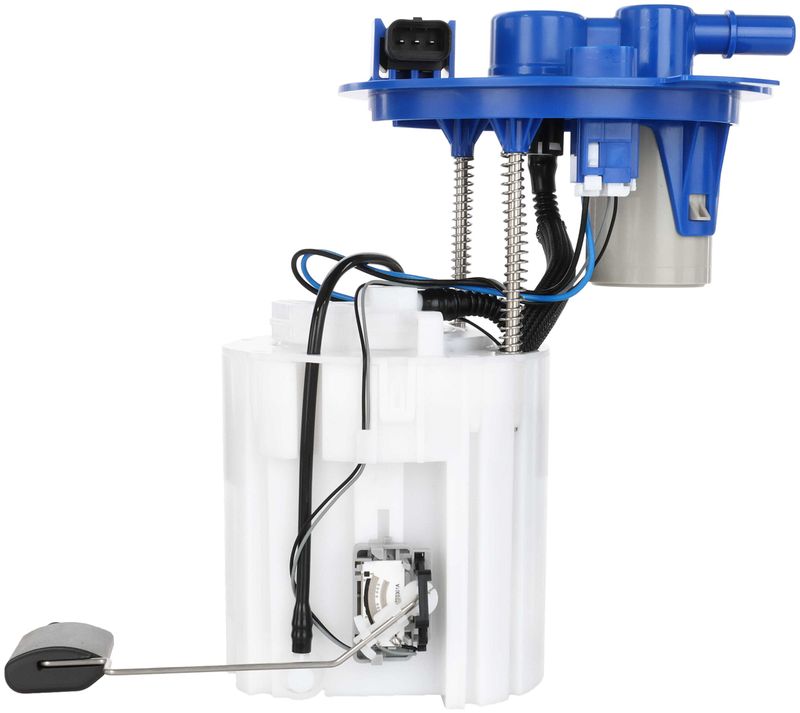

Delphi FG2824 Fuel Pump Module Assembly

Fuel Pump Module Assembly Overview

Delphi FG2824 is a specific-fit fuel pump module assembly for select Hyundai and Kia applications. It combines the pump, sending unit, regulator, strainer, fuel filter, seal, and tank pressure sensor in one in-tank assembly for gasoline systems.

Key Features

• Electric turbine pump design with a 12-volt electrical setup.
• Includes the fuel sending unit, regulator, strainer, fuel filter, and gasket or seal.
• Quick-connect outlet design with a female connector and 4 male terminals.
• Plastic housing with a nitrile rubber seal for fuel system service.
• Specific-fit design for direct application matching.

Detailed Description

This Delphi fuel pump module assembly FG2824 is built for in-tank gasoline fuel delivery and fuel level monitoring. It is engineered with a turbine-style pump, integrated regulator, and tank pressure sensor to support consistent fuel delivery and system feedback. The FG2824 also includes a float arm, making it a practical replacement for service work on Hyundai Elantra and Kia Forte fuel systems.

Delphi has long supplied fuel delivery components to global vehicle manufacturers, and this part reflects that OE-focused background. The FG2824 is a direct-fit style replacement for applications that require a specific module configuration, quick-connect outlet connections, and an integrated sending unit. This part cross-references 31119-F2600 for the same application.

Common Issues This Part May Address

• Hard starting caused by weak or inconsistent fuel delivery.
• Fuel gauge readings that do not match the tank level.
• Loss of fuel pressure from a worn internal pump or regulator.
• Fuel system faults related to a failing tank pressure sensor.
• Poor drivability from restricted in-tank fuel flow.

Installation Notes and Tips

Install FG2824 as an in-tank module and verify connector style, outlet type, and electrical terminal count before installation. Replace the seal during service and confirm the fuel system is depressurized before removing the old module. Review the included instruction sheet and compare the original module configuration to the replacement before final assembly.

Quality Assurance

Delphi is a Tier 1 supplier with more than 80 years of fuel delivery manufacturing experience. FG2824 is built as a premium-grade fuel pump module assembly for specific-fit applications and follows Delphi's OE-oriented fuel technology background.
