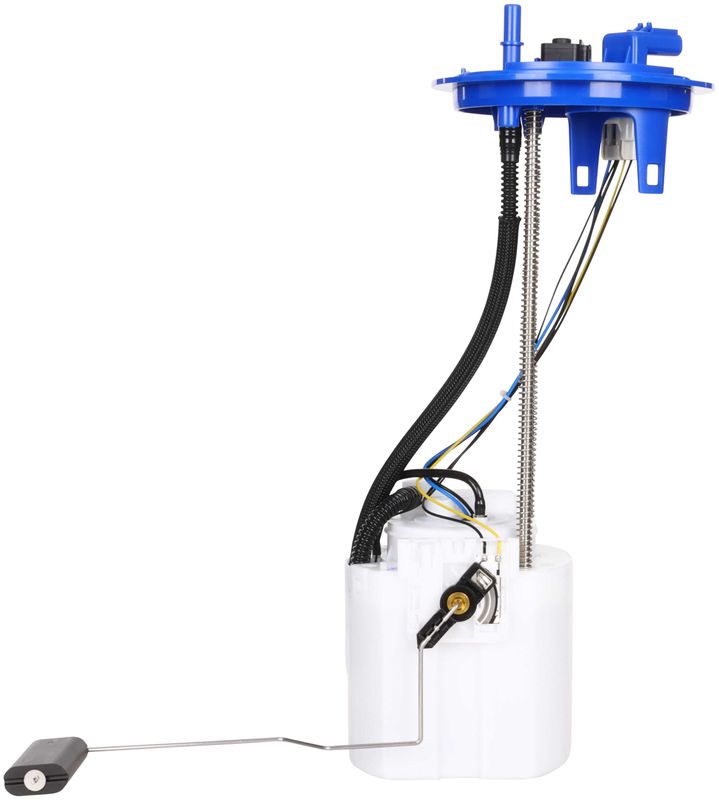

Delphi FG2843 Fuel Pump Module Assembly
| Brand | Delphi FG2843 |
|---|---|
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Maximum Pressure | 67 |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 180 |
| Resistance Ohms Full | 10 |
| Gasket Or Seal Material | Nitrile rubber |
| Minimum Pressure | 62 |
| Internal Or External Strainer | Internal |
| Fits | Ford · 9 vehicles |
OE-style fit. Specific-fit fuel pump module assembly for straightforward replacement.
Turbine pump design. Delivers steady fuel flow with electric operation and 62-67 psi pressure.
Complete module. Includes sending unit, regulator, strainer, seal, and fuel tank pressure sensor.
Cross-references LC3Z 9H307-C, LC3Z 9H307-E and LC3Z 9H307-S for the same application. See all 5.
Delphi FG2843 Fuel Pump Module Assembly
Delphi FG2843 is a specific-fit fuel pump module assembly for select Ford Super Duty gas applications. It combines the pump, fuel sending unit, regulator, strainer, seal, and fuel tank pressure sensor in one in-tank assembly for direct replacement service.
Built for 12-volt gas systems, this module is engineered for Ford F-250 Super Duty and Ford F-350 Super Duty applications that require stable fuel delivery and accurate tank level reporting.
Key Features
- Specific-fit fuel pump module assembly for in-tank installation
- Includes fuel sending unit, regulator, strainer, gasket/seal, and fuel tank pressure sensor
- Electric turbine pump design with 44 average flow rating
- Operating pressure range: 62 to 67
- 12-volt, gas-fuel application with one rectangular female connector
- Blade terminals, 4 terminal count, quick-connect outlet
- Plastic housing with nitrile rubber seal material
- Delphi FG2843 is a direct replacement option for select Ford Super Duty fuel system service
Detailed Description
Delphi FG2843 is a premium fuel pump module assembly engineered for specific Ford truck applications. It is built as an in-tank electric turbine module with a quick-connect outlet and integrated fuel level sending function, helping restore fuel delivery and tank signal performance in one service part. Delphi’s fuel system background includes long-term OE supply experience and extensive fuel technology development, which supports consistent fit and function in demanding truck applications.
This part fits 2021-2023 Ford F-250 Super Duty and 2020-2023 Ford F-350 Super Duty, making it a focused replacement for gas-powered Super Duty fuel system repairs. Delphi FG2843 also cross-references PFS1447 for the same application.
What It Helps Fix
- Hard starting caused by weak or failing fuel pump output
- Fuel starvation under load or during acceleration
- Inaccurate fuel level readings from a worn sending unit
- Fuel pressure issues related to a failing module regulator
- Check engine concerns tied to tank pressure sensor or fuel delivery faults
Installation Notes and Tips
Install the module in the fuel tank using the supplied seal and follow the vehicle service procedure for depressurizing the fuel system before removal. Verify connector shape, terminal count, outlet style, and tank configuration before installation. Because this is a specific-fit assembly, confirm the vehicle is a gas-powered Ford F-250 Super Duty or Ford F-350 Super Duty within the listed model years.
Quality Assurance
Delphi is a Tier 1 supplier to major global vehicle manufacturers and has produced fuel delivery components for more than 80 years. FG2843 reflects that OE-focused engineering approach for Ford Super Duty fuel system service.
| Year | Make | Model | Submodel | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | F-250 Super Duty | XLT | 7.3L | V8 | — |
| 2023 | Ford | F-350 Super Duty | XLT | 7.3L | V8 | — |
| 2022 | Ford | F-250 Super Duty | XLT | 7.3L | V8 | — |
| 2022 | Ford | F-350 Super Duty | XLT | 7.3L | V8 | — |
| 2022 | Ford | F-450 Super Duty | XLT | 7.3L | V8 | — |
| 2021 | Ford | F-250 Super Duty | XLT | 7.3L | V8 | — |
| 2021 | Ford | F-350 Super Duty | XLT | 7.3L | V8 | — |
| 2021 | Ford | F-450 Super Duty | XL | 7.3L | V8 | — |
| 2020 | Ford | F-350 Super Duty | XLT | 6.2L | V8 | — |
